Packard 65569 Draft Inducer Motor 25 MHP 115V 3300 RPM CW C-Frame

The Packard 65569 is a high-performance C-frame draft inducer motor designed for furnace and heating system applications. This shaded pole motor delivers 25 millihorsepower at 3300 RPM, operating on 115 volts single-phase power at 60 Hz with a 1.8 amp draw.

Key Specifications:

• 115 VAC, 1.8 amp, 25 millihorsepower
• 3300 RPM speed, single-phase, 60 Hz
• Clockwise rotation (viewed from end opposite terminals)
• 5/16" diameter x 1" x 1-7/8" length shaft
• 1-1/2" stack, C-frame mounting
• Ball bearings, open enclosure
• Automatic thermal overload protection
• Class B insulation, UL and CSA certified

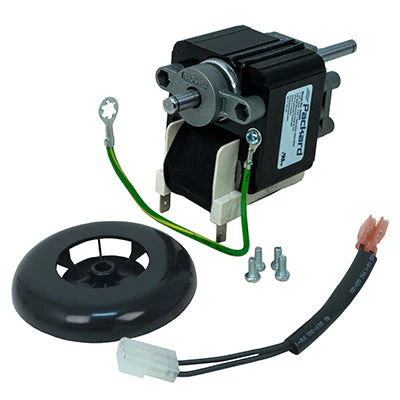

Complete Kit Includes:

• Motor with plastic fan blade included
• Special leads and plug for easy installation
• Mounting hardware included

This direct replacement motor is ideal for furnaces, boilers, and water heaters, specifically designed for use with select Carrier heating systems. It replaces Carrier part numbers HC21ZE115, HC21ZE117, HC21ZE117B, HC15ZN012, 310371-752, 318984-753, J238-150220, and J238-150-037751, as well as Jakel, Rotom, Mars, and Fasco equivalents. This aftermarket replacement provides reliable performance at a fraction of the cost of OEM assemblies.
