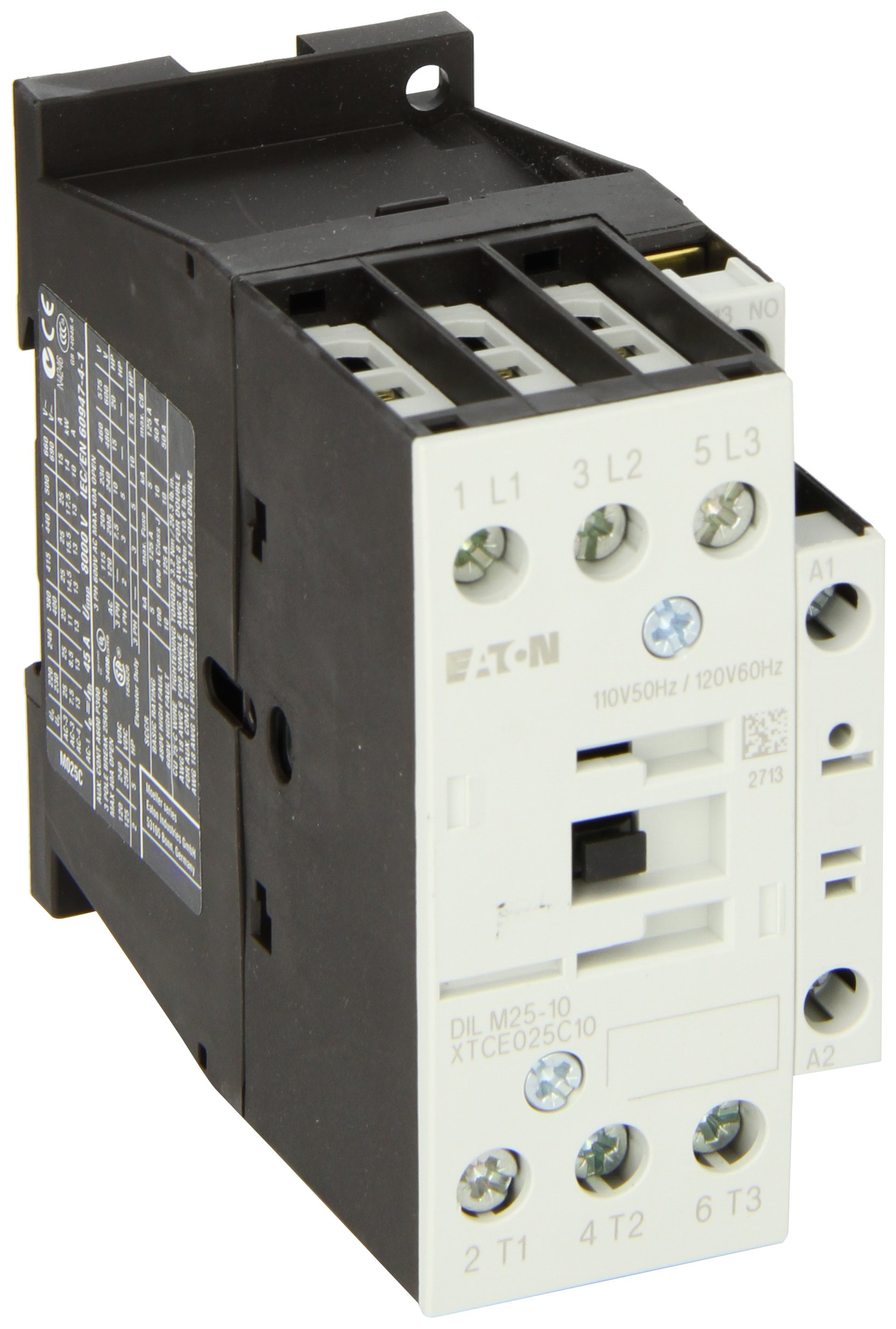

Eaton XTCE025C10A XT Series IEC Contactor 25A 3-Pole 120VAC Coil

The Eaton XTCE025C10A is a three-pole IEC contactor rated for 25 amps with a 110VAC 50Hz/120VAC 60Hz coil voltage. This full voltage non-reversing contactor is part of the XT Series Frame C design and includes 1 normally open (N.O.) auxiliary contact. Designed for electrical assemblies, panels and OEM applications, it features multiple mounting options including DIN rail, panel, and surface mounting.

Key Specifications:

• Frame C, 45mm compact design
• 25A AC-3 current rating (40A AC-1 rating)
• Voltage rating up to 690VAC
• Motor ratings: 7.5 HP at 230VAC, 15 HP at 460VAC, 20 HP at 575VAC (3-phase)
• Power ratings: 7.5kW at 220/230VAC, 11kW at 380/440VAC, 14.5kW at 415VAC
• Screw terminal connections
• 50/60 Hz frequency compatible

Features and Benefits:

• Meets IEC, UL, CSA, CCC and CE standards for global applications
• Expandable with front-mounted auxiliary contact blocks (up to 5 total auxiliary contacts)
• Compatible with XTOB overload relays for complete Class 10 thermal motor protection
• Powerful, efficient and versatile design compatible with full range of electronic overload relays and bimetal relays
• IP20 enclosure rating, operating temperature range -13°F to 122°F
• Compact space-saving footprint for easy installation

The XT Series contactors are engineered for reliable motor control in industrial and commercial applications, offering exceptional performance in a compact package. This contactor is ideal for motor starting, switching, and control applications requiring robust IEC-rated components.
