Greddy 11511216 Type FV2 Blow-Off Valve Kit BFV2-124 JZX100 Atmospheric and Return Vent

Manufacturer

Part Number

11511216
Black Friday Price

$441.13

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The GReddy Type FV2 Blow-Off Valve Kit (BFV2-124) is a bolt-on performance upgrade engineered for the JZX100 chassis equipped with the turbocharged 1JZ-GTE engine. This complete kit supports two installation styles on the factory OEM intercooler piping — atmospheric (open) venting or recirculation (return) venting — giving tuners the flexibility to run either configuration.

The FV2 features GReddy's proprietary Floating Valve technology, which incorporates a revised adjustable dual-spring system while retaining the proven push-valve structure and heat- and oil-resistant rolling diaphragm. This design reduces spring pre-load dependency on idle, delivering better throttle response, increased valve travel, greater airflow, and improved resistance to premature valve lift across all operating conditions.

An application-specific cast-aluminum adapter pipe is included for direct fitment to the OEM intercooler piping. The included outlet horn adapter and caps allow open-to-atmosphere operation, while optional recirculation adapters are available separately in various outlet sizes. The CNC-machined outlet features integrated discharge ports that draw in surrounding air to amplify the signature blow-off sound.

Key Features:

  • Selectable atmospheric or recirculation venting — no additional parts needed for either mode
  • Floating Valve design with adjustable dual-action spring for wide boost range tuning
  • 40mm valve size with heat and oil resistant rolling diaphragm
  • Gloss clear (silver) finish with blue anodized accent ring
  • CNC outlet with discharge ports for enhanced blow-off sound
  • Tool-free 360° top rotation for optimal vacuum port positioning
  • Compatible with all standard GReddy Blow-Off Valve flanges; retrofits onto previous FV, RZ, and RS model applications
  • Finish: Gloss clear (silver) with blue anodized accent ring

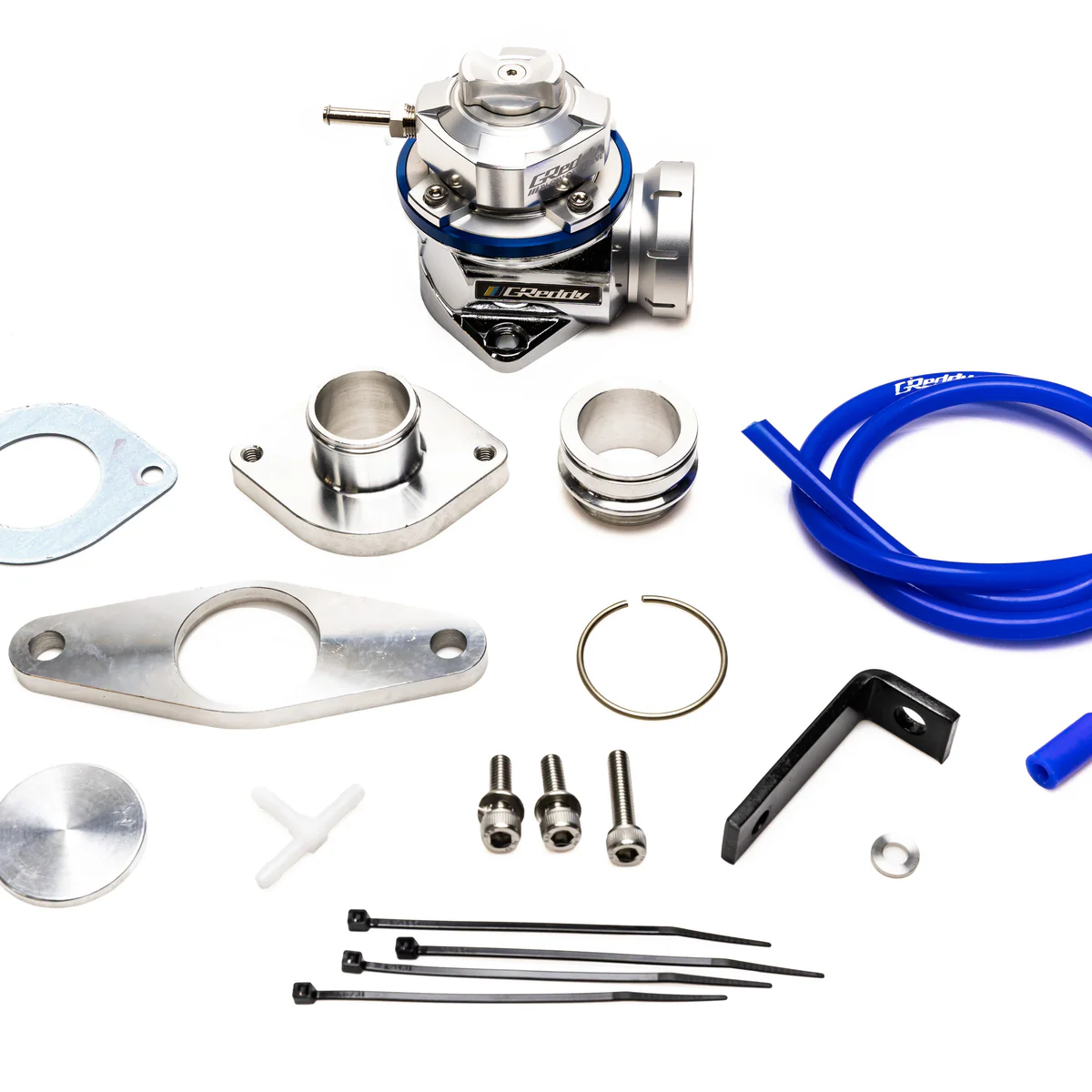

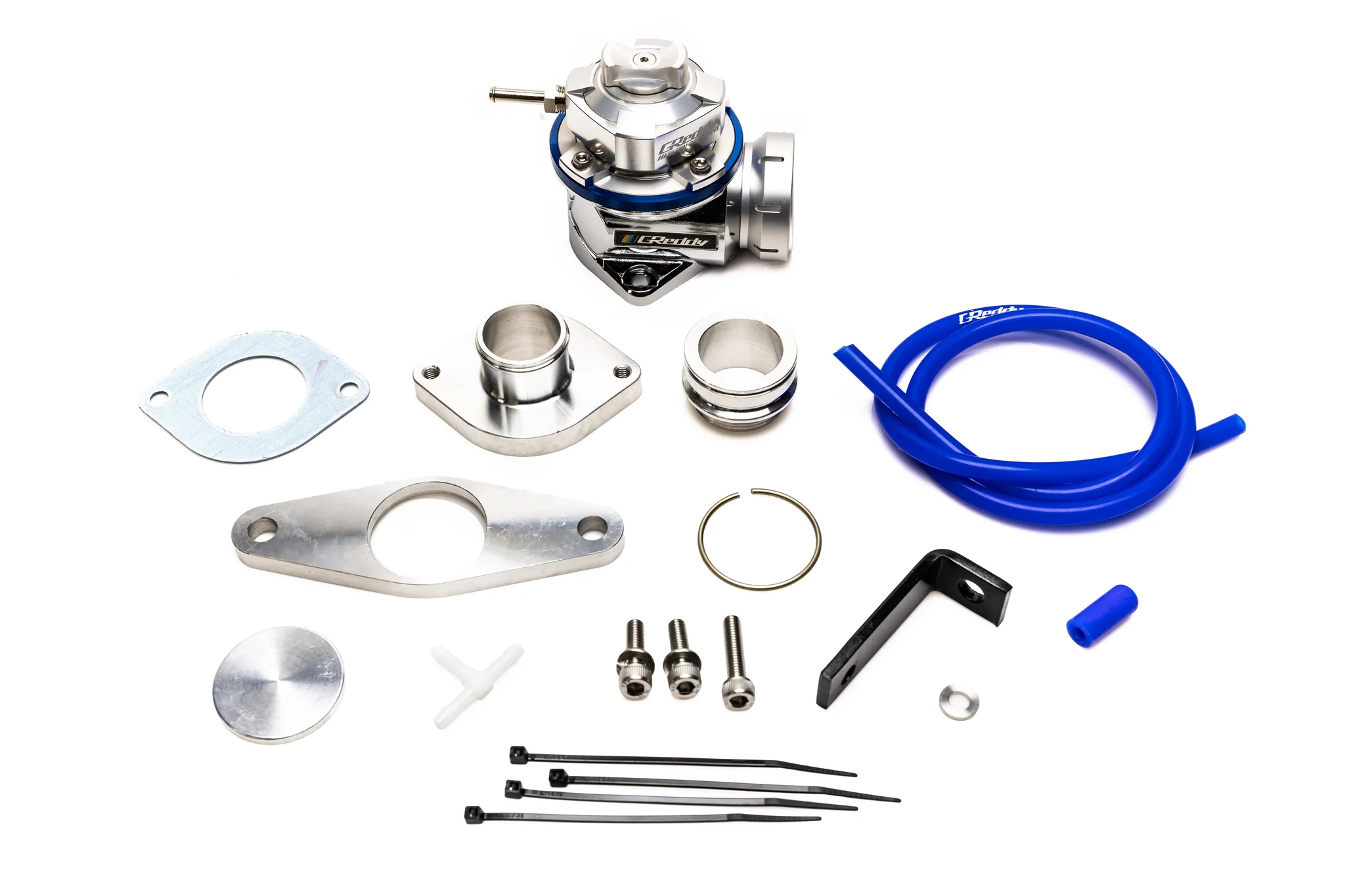

Kit Includes: FV2 Blow-Off Valve, application-specific cast-aluminum adapter pipe, outlet horn adapter, gasket, nuts & bolts, vacuum nipple, and hose.

Specifications:

  • Part Number: 11511216 / BFV2-124
  • Series: FV2 (Floating Valve 2)
  • Valve Size: 40mm
  • Diaphragm: Heat and oil resistant rolling diaphragm
  • Spring: Adjustable dual-action
  • Head Unit Material: Aluminum die-cast (chrome plating)

For competition/off-road use only. Check the legality of aftermarket products with your local authorities before purchasing.
