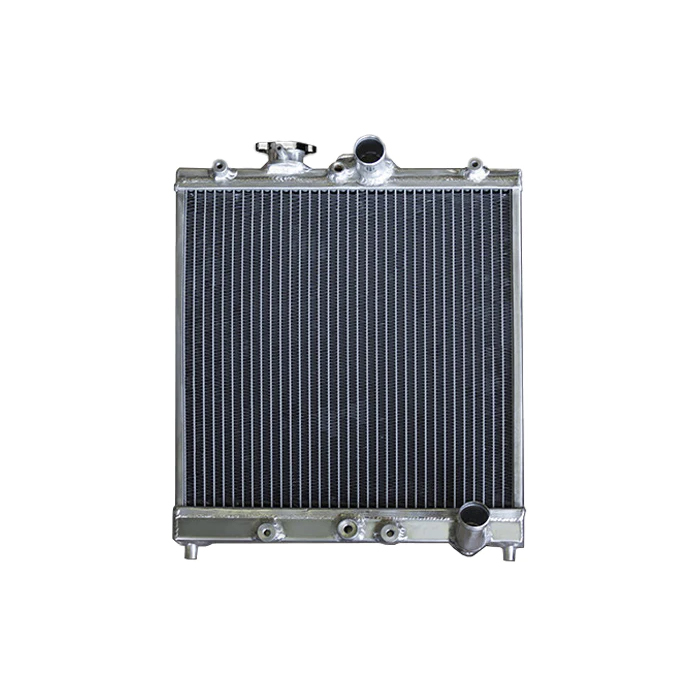

GReddy 12053802 TW-R Aluminum Racing Radiator EK9 Civic B-Series

Manufacturer

Part Number

12053802
Black Friday Price

$573.81

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The GReddy 12053802 TW-R Aluminum Racing Radiator is a high-performance, all-aluminum cooling upgrade engineered for the Honda Civic EK4, EK9, and EG6 equipped with B-Series engines. Designed to meet the demands of both street performance and motorsport use, this radiator delivers a substantial improvement in cooling capacity over the factory unit.

Key Features:

  • 2-Layer Wide Tube Core: The dual-layer wide tube design delivers cooling capacity equivalent to many 3-layer radiator constructions, while achieving more than double the coolant volume of the stock radiator.
  • 40mm Core Thickness: The thicker core secures greater cooling water capacity and achieves improved cooling efficiency with reduced pressure loss compared to the OEM radiator.
  • All-Aluminum Construction: The core and end tanks are fully constructed from aluminum, reducing weight while providing excellent heat dissipation and long-term durability.
  • TIG-Welded End Tanks: GReddy-embossed end tanks are TIG-welded for strength and feature a pre-drilled, tapped 1/8PT sensor boss for easy installation of an aftermarket temperature gauge or probe.
  • 32mm Inlet / Outlet Diameter: Radiator inlet and outlet ports measure 32mm in diameter for proper flow compatibility.
  • Includes GReddy Radiator Cap: A 1.3K (1.3 bar) GReddy radiator cap is included.
  • Aluminum Machined Drain Bolt Included: A precision-machined aluminum drain bolt is provided for clean coolant servicing.
  • Note: Fan shroud cannot be installed in JDM-spec configuration.

The GReddy TW-R series represents a true bolt-on performance cooling solution, retaining all factory mounting points for straightforward installation. Whether used on a dedicated track car or a high-performance street build, the 12053802 provides the thermal management needed to keep B-Series engines operating at their best.
