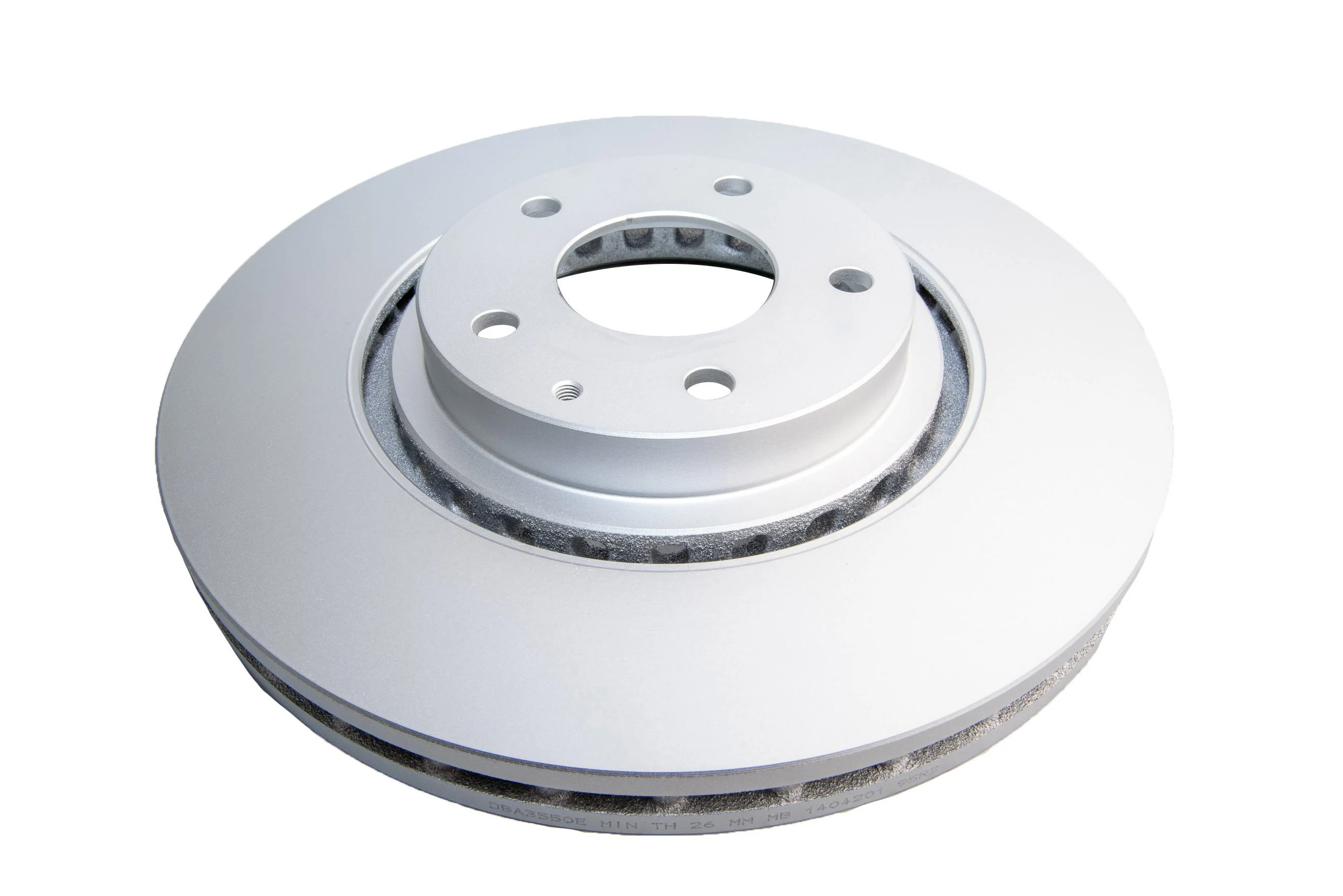

DBA DBA3095E Street Series En-Shield HC Rear Brake Rotor

The DBA DBA3095E is a Street Series En-Shield Hybrid Composite (HC) rear brake rotor, engineered as a direct OE replacement for Jaguar XE models from August 2015 onward. Built by Disc Brakes Australia — a global leader with over 40 years of braking expertise — this rotor delivers reliable, factory-matched stopping performance with superior corrosion resistance straight out of the box.

En-Shield Corrosion Protection:

The En-Shield coating is a chromium-free, zinc-aluminium water-based treatment applied to the entire rotor surface and then baked on. This process provides long-lasting rust and corrosion resistance throughout the service life of the rotor, eliminating the need for pre-installation cleaning and keeping the rotor looking great on and off the vehicle.

Hybrid Composite (HC) Construction:

This rotor features DBA's Hybrid Composite design, which combines a cast iron braking surface with an aluminium or steel hat that are permanently bonded together. This two-piece construction can reduce overall rotor weight by up to 15% compared to a conventional one-piece rotor, improving unsprung weight and thermal performance.

Key Features:

• En-Shield coating — zinc/aluminium chromium-free treatment baked onto the full rotor surface for corrosion resistance
• Hybrid Composite (HC) design — cast iron disc ring bonded to an aluminium or steel hat for up to 15% weight reduction
• Kangaroo Paw vane design — provides up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life
• Centre-split core castings — for increased heat transfer and thermal efficiency
• CBN (Cubic Boron Nitride) machine-turned finish — minimises disc thickness variation and reduces the potential for pad knock and premature wear
• Direct OE replacement — engineered to factory specifications for confident, accurate fitment
• No pre-installation cleaning required — En-Shield coating means the rotor is ready to install

The DBA Street Series is the ideal choice for daily drivers, light commercial vehicles, and SUV applications seeking an OEM-quality replacement rotor with enhanced durability. Sold individually.
