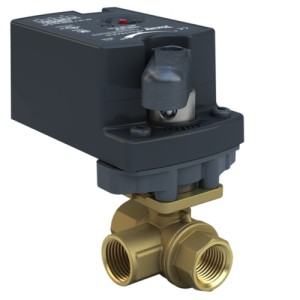

Bray ST75-3-02 3/4" 3-Way 2 Cv Soft Touch Ball Valve

The Bray ST75-3-02 is a 3/4-inch 3-way characterized ball valve from Bray's Soft Touch series, designed for accurate and cost-effective control in HVAC applications. This valve features a 2 Cv flow coefficient rating, making it suitable for precise flow control in heating and cooling systems.

Key Features:

• 3/4-inch threaded connection size for easy installation
• 3-way flow configuration for diverting or mixing applications
• 2 Cv flow coefficient for controlled fluid flow
• Forged brass body construction for durability and corrosion resistance
• Stainless steel ball and stem for long service life
• Graphite reinforced PTFE seats backed with EPDM O-rings for reduced operating torque
• Blowout-proof stem with ISO 5211 mounting flange for actuator compatibility
• 200 psig close-off pressure rating
• Suitable for water temperatures up to 284°F (140°C)

The Soft Touch valve series is engineered for reliable, maintenance-free operation in fan coils, VAV reheat coils, chilled beams, and air handling units. The characterized flow design ensures optimal temperature control in commercial HVAC systems.
