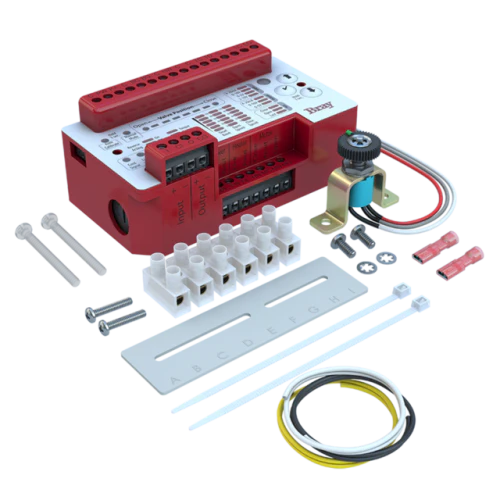

Bray 70A012-22920536 120VAC Servo NXT Control Kit Size 12-30

The Bray 70A012-22920536 is a 120V Servo NXT Kit designed for use with Series 70 actuators models 70-0061 through 70-0651. This servo actuator kit enables HVAC systems to precisely manage the placement of valves and dampers, allowing for optimal regulation of pressure, temperature, and airflow.

Key Features:

• Single Finger Technology (SFT) menu driven, pushbutton programming with LED confirmation of all settings
• Optical isolation of all inputs and outputs
• Multiple input control options: 4-20 mA, 0-10 VDC, 0-5 VDC, or 2-10 VDC
• Position feedback options: 4-20 mA, 0-10 VDC, or 0-5 VDC
• Auto calibrating functionality
• On board signal generator to simplify field setup
• Stall detection eliminates mechanical damage in case of obstruction or bad switch settings
• Earth ground tolerant design
• Allows for parallel operation

The kit features clearly labeled terminal connections and indicators to simplify field wiring and operation. This system provides interoperability with all controllers, making it an ideal choice for building automation and HVAC control applications.

Important Compatibility Note: Not for use on Servo Pro kits for model 70-0061 manufactured prior to July 2017.
