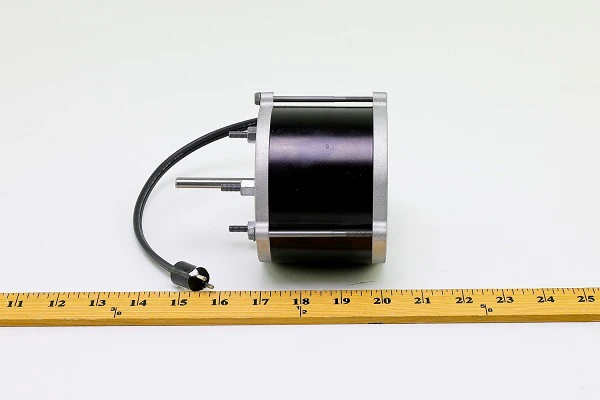

Heatcraft 25318001S 1/15 HP Refrigeration Fan Motor 120V 1525 RPM CCW

The Heatcraft 25318001S is a 1/15 horsepower electronically commutated motor (ECM) designed specifically for commercial refrigeration evaporator fan applications. This energy-efficient motor operates on 120 volts single-phase power at 60Hz frequency, delivering reliable performance at 1525 RPM with counterclockwise rotation when viewed from the lead end.

Key Specifications:

• Power: 1/15 HP (horsepower)
• Voltage: 120V single-phase
• Speed: 1525 RPM
• Rotation: Counterclockwise (CCW) from lead end
• Shaft: 5/16 inch diameter flat shaft, 2-1/8 inch length
• Motor Body Dimensions: 3-1/4 inches height x 5-1/8 inches width
• Amperage: 0.92 amps
• Frequency: 60Hz

This OEM replacement motor is engineered for use in Heatcraft and Larkin commercial refrigeration unit coolers and walk-in cooler/freezer applications. The brushless DC (BLDC) ECM technology provides superior energy efficiency compared to traditional shaded pole motors, resulting in lower operating costs and reduced heat output. The motor features a Lyall power plug connection for easy installation and comes backed by manufacturer warranty.
