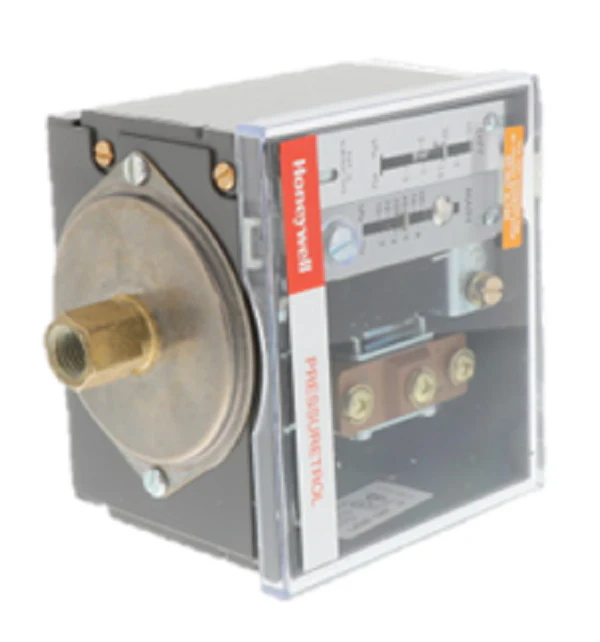

Burnham 109716-01 Pressuretrol Controller with Whip 1-8 PSI

The Burnham 109716-01 is a pressuretrol controller designed specifically for use with Burnham Independence and New Yorker steam boilers. This essential safety and control device automatically monitors and regulates steam pressure to ensure safe, efficient boiler operation.

Key Features:

• Pressure range: 1 to 8 PSI with adjustable differential of 0.75 to 2 PSI
• SPDT snap-action switch that breaks on pressure rise for automatic burner control
• Includes pre-wired electrical whip (harness) for simplified installation
• Stainless steel diaphragm pressure sensing element for durability
• Auto-recycle operation with manual adjustment screws on top of case
• 1/4-inch NPT female connection for siphon loop mounting
• Maximum ambient temperature rating of 150°F
• UL Listed and CSA certified for safety compliance

This pressuretrol functions as both an operating control and automatic limit protection device, shutting off the burner if pressure exceeds the set limit to prevent dangerous overpressure conditions. The adjustable differential allows precise control over when the burner re-energizes after reaching the pressure cutoff point. Also known as model L404F1367, this OEM replacement part ensures reliable pressure regulation and optimal heating system performance.
