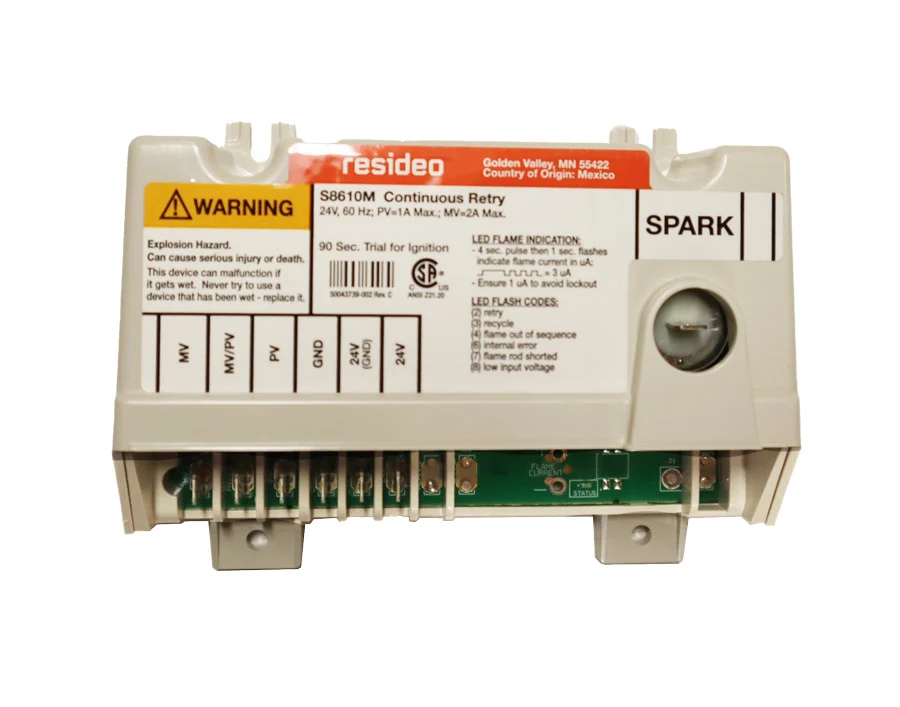

Burnham 109633-01 Electric Ignition Control Module

The Burnham 109633-01 is a genuine OEM electric ignition control module designed for reliable intermittent pilot ignition systems on Burnham residential gas-fired boilers. This module, which utilizes the Honeywell S8610M3009 control platform, provides complete electronic control of ignition sequences, flame monitoring, and safety shutoff functions to ensure safe and efficient boiler operation.

Key Features:

• Genuine Burnham OEM replacement part - ensures perfect fit and compatibility
• One-rod flame sensing configuration for simplified installation
• 24 VAC / 60 Hz operation with continuous retry mode to minimize nuisance shutdowns
• Up to 90-second ignition trial time with 5-minute delay between retry cycles
• 2-second maximum flame failure response time for enhanced safety
• Compatible with standard gas control valves (pilot ≤ 1A, main valve ≤ 2A)
• Wide operating temperature range: -40°F to 175°F ambient
• No automatic lockout feature reduces service calls

Compatible Models:

Designed specifically for use with Burnham IN3-IN12 and Series 805-810 boilers. This module replaces obsolete part number 100958-01 and is compatible with both natural gas and propane applications.

This ignition control module is an essential safety component that manages the complete ignition cycle, from spark generation through pilot lighting, main valve opening, and continuous flame supervision. If flame is lost during operation, the module immediately shuts off gas flow to prevent fuel accumulation and potential hazards.
