Burnham 100958-01 Ignition Control Module Intermittent Pilot

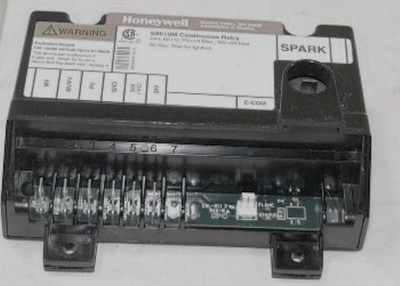

The Burnham 100958-01 is an OEM replacement ignition control module designed specifically for Burnham boiler models including IN3-IN12 and 805-810 series units. This factory-certified component is manufactured by Honeywell (model S8610M3009) and provides reliable electronic control of pilot ignition and flame monitoring for gas-fired heating systems.

Key Features:

• Intermittent pilot ignition control without pre-purge sequence
• Continuous retry operation with 90-second ignition trial time
• 5-minute delay between retry cycles to prevent nuisance shutdowns
• Single-rod flame sensing configuration with 2-second maximum flame failure response
• LED diagnostic indicators for system status monitoring
• Operates on 24 VAC power supply
• Ambient temperature range: -40°F to +175°F
• 100% safety shutoff if pilot fails to ignite

This ignition module controls the ignition sequence, flame monitoring, and safety shutoff functions for compatible Burnham boilers. The continuous retry feature automatically attempts to relight the pilot after a failed ignition attempt, reducing system downtime. Designed for natural gas or LP gas applications with standard gas control valves rated up to 1 amp for pilot and 2 amps for main valve operation.

Note: This part has been discontinued by the manufacturer as of October 2023. The replacement part number is Burnham 102026-01. Professional installation by a qualified HVAC technician is recommended.
