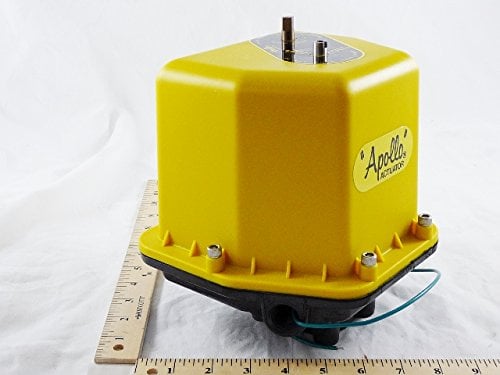

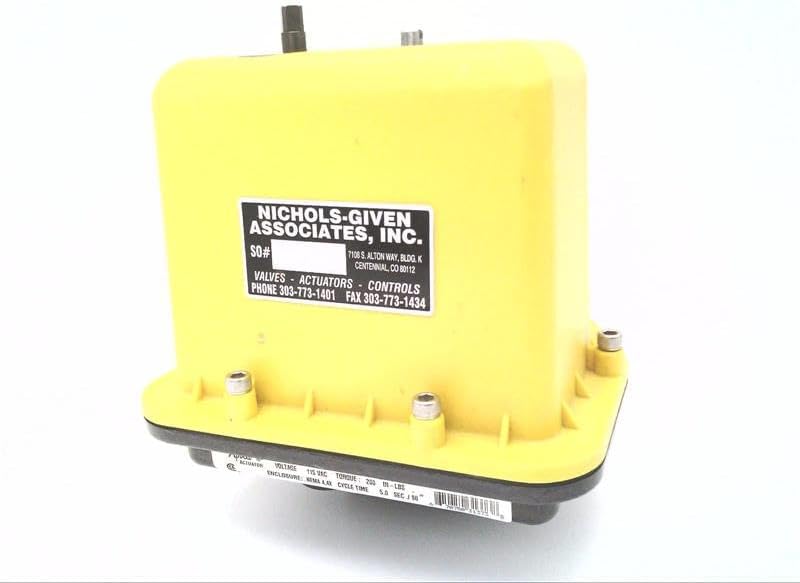

Conbraco AE-200-10 Electric Actuator 200 In-Lbs 115V 90 Degree

The Conbraco AE-200-10 is a compact 90-degree electric actuator designed for industrial valve automation applications. Part of the Apollo AE Series, this ruggedly built actuator delivers 200 inch-pounds of breakaway torque with reliable performance for on/off valve control.

Key Specifications:

• Output Torque: 200 inch-pounds (in-lbs)
• Voltage: 115 VAC, 50/60 Hz
• Cycle Time: 5.0 seconds for 90-degree travel at 50% load
• Current Draw: 0.74 amps maximum operating
• Duty Cycle: 25% at temperatures below 100°F
• Operating Temperature Range: -40°F to 150°F
• Enclosure Rating: NEMA 4 (weatherproof)

Construction and Features:

• Die-cast aluminum body with anodized finish for corrosion resistance
• ISO 5211 F07 female drive output for standardized valve mounting
• Stainless steel push-and-turn manual override shaft
• Position indicator shaft for visual valve position confirmation
• Reversible 3-wire capacitor run motor with self-resetting thermal overload protection
• Two adjustable SPDT limit switches for position monitoring
• Permanently lubricated gear train and bearings
• CSA Listed for North American applications
• Two 1/2-inch NPT female conduit connections

Operation:

• Rotation: Clockwise to close, counterclockwise to open (position indicator shaft)
• Self-locking gear train design maintains valve position without power
• Rated for 1200 starts per hour in modulating service
• Can be mounted in any orientation (horizontal, vertical, upside down)

Ideal for automating ball valves, butterfly valves, and other quarter-turn valves in HVAC, industrial process control, water treatment, and building automation systems. The compact design and standardized mounting interface make installation straightforward while the NEMA 4 enclosure ensures reliable operation in harsh environments.
