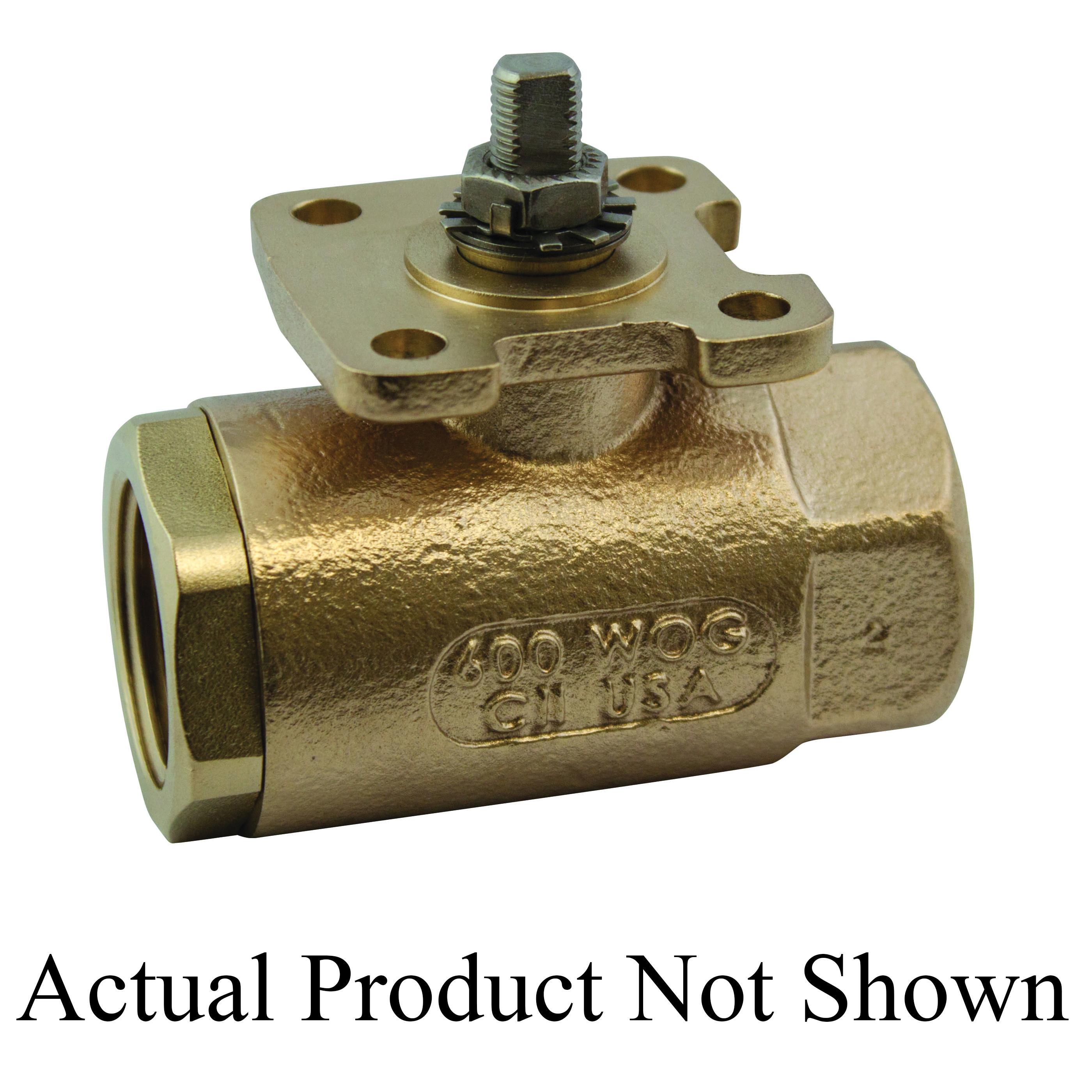

Conbraco 71-AR5-64 Bronze Ball Valve with ISO 5211 Mounting Pad 1 Inch NPT

The Conbraco 71-AR5-64 is a professional-grade 1-inch bronze ball valve designed with an integrated ISO 5211 mounting pad for actuator installation. This two-piece valve construction provides reliable quarter-turn shutoff control for water, oil, and gas applications in commercial and industrial systems.

Key Features:

• Bronze body construction (ASTM B584-C84400) for corrosion resistance and durability
• 316 stainless steel ball and stem for superior performance and longevity
• Standard port design with 0.87-inch orifice and Cv flow coefficient of 43
• MPTFE (modified PTFE) seats and packing for excellent chemical resistance
• ISO 5211 mounting pad for easy pneumatic or electric actuator installation
• Female NPT threaded connections on both ends
• Blowout-proof stem design with PTFE seals
• Rated 600 psig WOG (water, oil, gas) cold non-shock service
• Rated 250 psig saturated steam service
• Vacuum service rated to 29 inches Hg

Specifications: The valve measures 3.37 inches inlet to outlet length and 2.28 inches from top to inlet center, with compact dimensions ideal for tight installations. Meets Federal Specification WW-V-35C, Type II, Composition BZ, Style 3. American-made quality from Apollo Valves, a trusted Conbraco brand.

The actuator-ready mounting pad eliminates the need for custom brackets, making this valve an excellent choice for automated control systems in HVAC, process control, water treatment, and industrial fluid handling applications.
