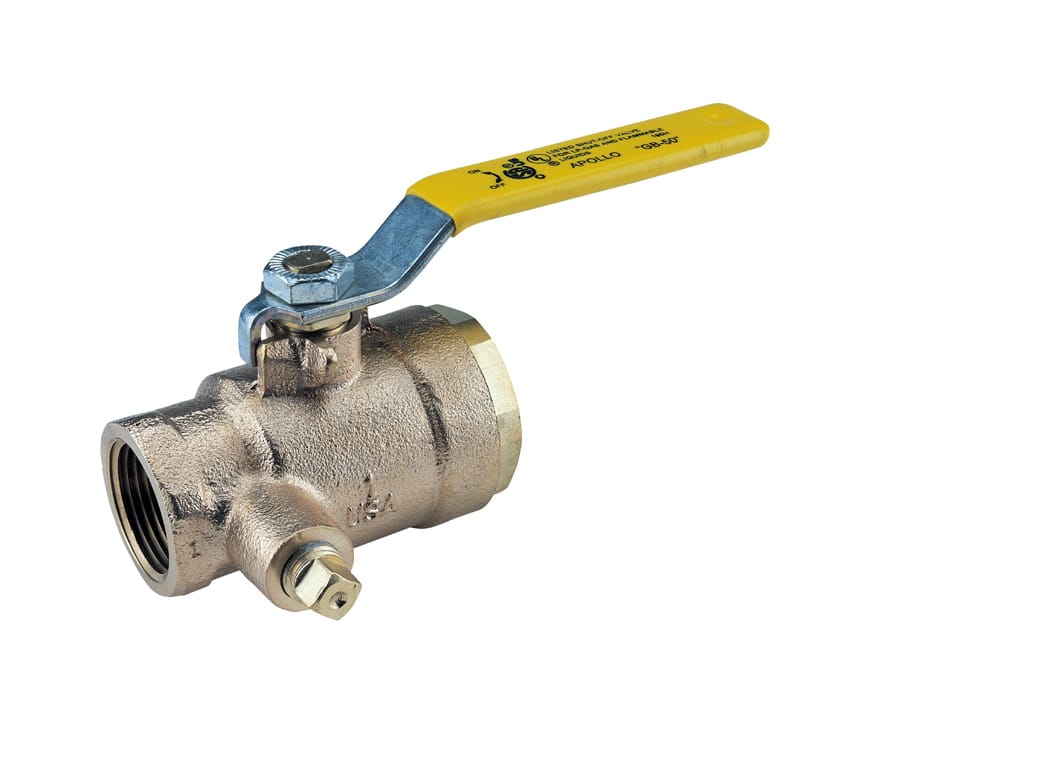

Conbraco 50-GB4-01A 3/4" Gas Shutoff Ball Valve with Dual 1/8" Taps

The Conbraco 50-GB4-01A is a 3/4-inch bronze gas shutoff ball valve engineered for main burner applications in residential and commercial gas systems. Part of the Apollo GB-50 series, this valve features dual 1/8-inch NPT pilot taps cast directly into the body for faster, simpler installation of pilot lights or pressure gauges.

Key Features:

• ASTM B584 bronze body construction for superior corrosion resistance
• Chrome-plated brass ball ensures smooth operation and long service life
• Full port design maximizes gas flow capacity
• Two 1/8-inch NPT pilot taps for pilot light or gauge connections
• PTFE seat material for reliable sealing
• Brass stem and retainer for durability
• Lever handle operation for quick shutoff
• 3/4-inch female NPT connections on both ends
• Rated for 5 psig maximum pressure
• Temperature rating up to 250°F
• UL 125 listed for gas applications
• MSS SP-10 compliant
• 100% factory tested

This 2-piece ball valve is designed specifically for use with natural gas, manufactured and mixed gases, and LP gas/air mixtures. The dual pilot taps eliminate the need for separate tee fittings, streamlining installation and reducing potential leak points in your gas system.
