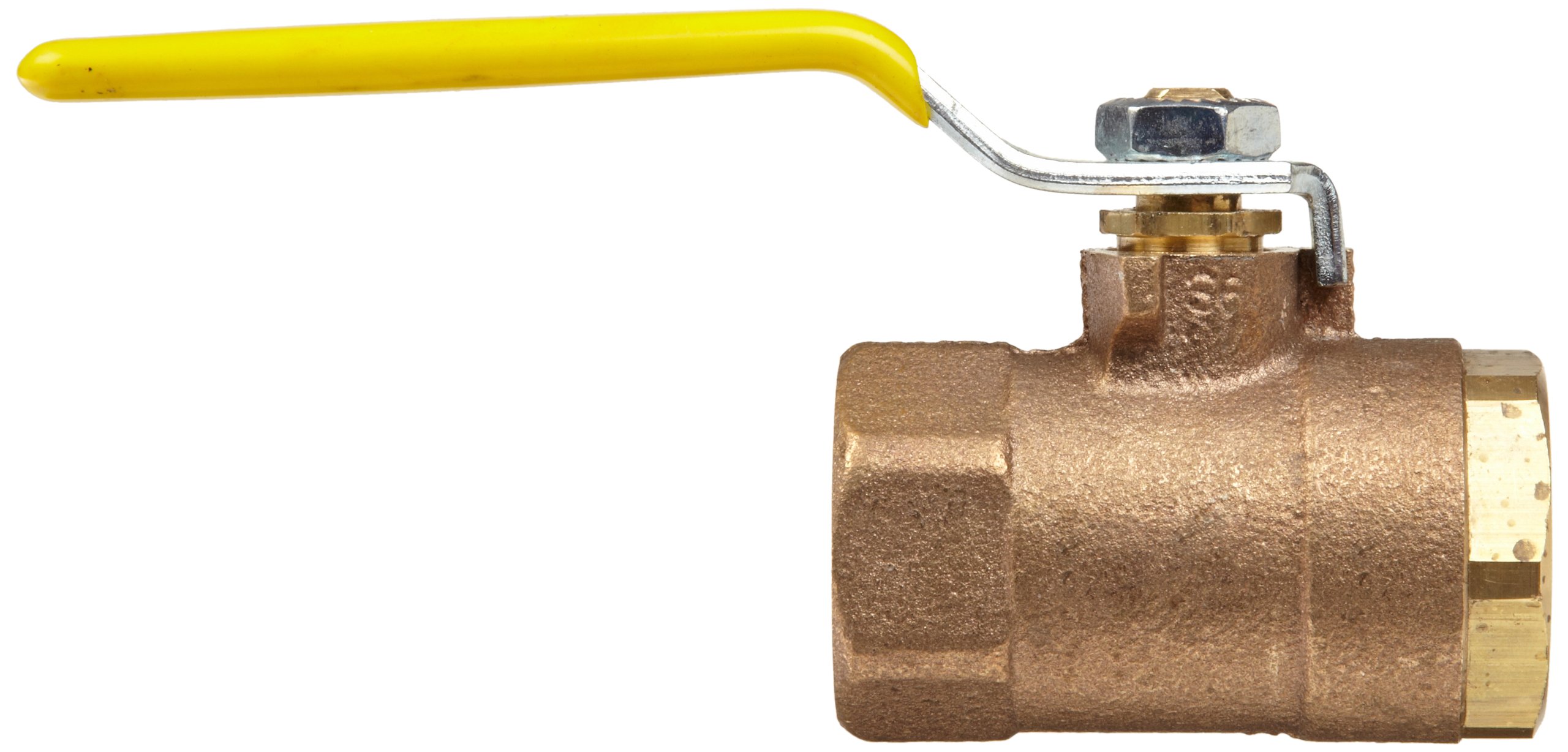

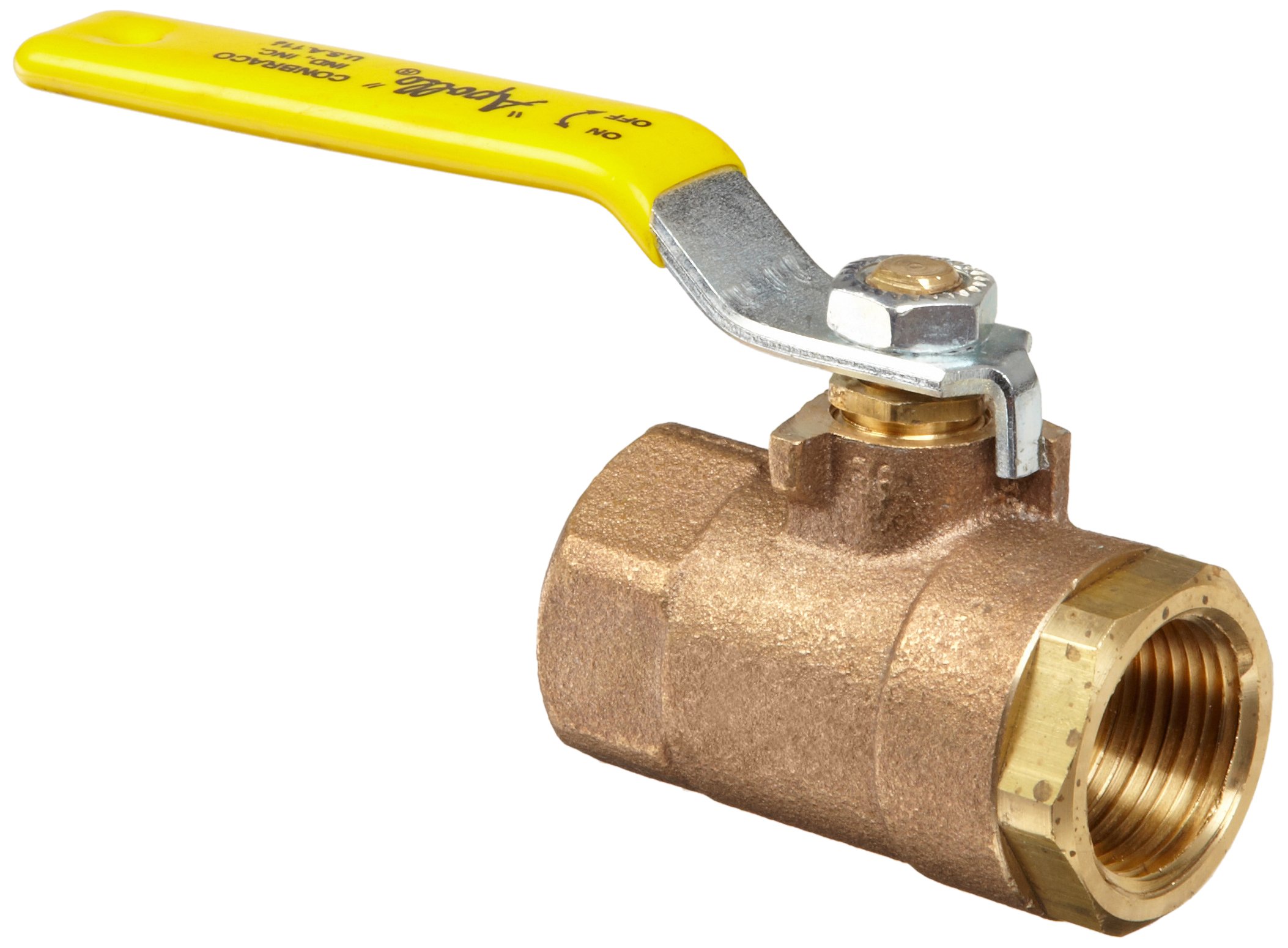

Conbraco 32-105-01 1" Bronze Ball Valve 400 PSI CWP 125 PSI Steam

The Conbraco 32-105-01 is part of the Apollo 32-100 series, a two-piece bronze ball valve designed for reliable performance in industrial and commercial applications. This 1-inch valve features NPT threaded connections and a standard port design with PTFE seats for dependable sealing.

Key Features:

• Cast bronze body construction (ASTM B584) provides excellent durability and corrosion resistance
• Blowout-proof stem design ensures safe operation under pressure
• RPTFE stem packing and stuffing box ring for leak-free performance
• Chrome-plated brass ball for smooth operation and long service life
• Lever handle with zinc-plated steel construction and vinyl grip
• Vacuum service rated to 29 inches Hg

Pressure and Temperature Ratings:

• 400 PSI cold working pressure (CWP) non-shock rating
• 125 PSI steam working pressure (SWP) for saturated steam applications
• Maximum temperature rating of 400°F

This valve is rated for 400 PSI water, oil, and gas (WOG) cold non-shock applications, 125 PSI saturated steam service, with vacuum service capability to 29 inches Hg, and meets Federal Specification WW-V-35C, Type II, Composition BZ, Style 3. The valve is 100% factory tested to ensure quality and reliability.
