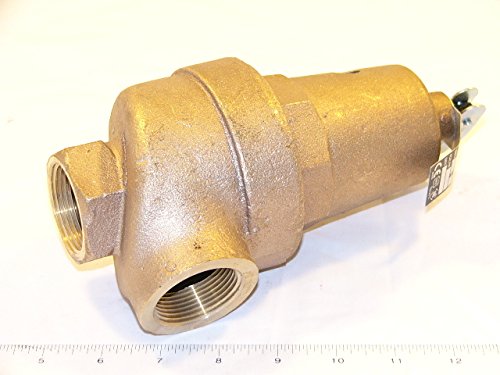

Conbraco 10-606-25 Hot Water Safety Relief Valve 1-1/4 Inch 125 PSI

The Conbraco 10-606-25 is an ASME Section IV capacity certified bronze safety relief valve designed for protection of hot water heating boilers, systems and similar equipment. This valve features 1-1/4 inch female NPT inlet and outlet connections with a pressure setting of 125 PSI and an impressive capacity rating of 7,390,000 BTU.

Key Features:

• Adjustable pressure setting from 15 to 160 psig (1 to 11 bar) at 250°F (121°C) maximum temperature
• ASME Section IV certified for hot water service applications
• Bronze construction for corrosion resistance and durability
• Female NPT threads on both inlet and outlet for easy installation
• Factory set to 125 PSI pressure relief setting

This safety relief valve is engineered to prevent dangerous overpressure conditions in hot water heating systems by automatically releasing excess pressure when the system exceeds the preset limit. The bronze body construction ensures long-term reliability and resistance to corrosion in demanding hot water applications.
