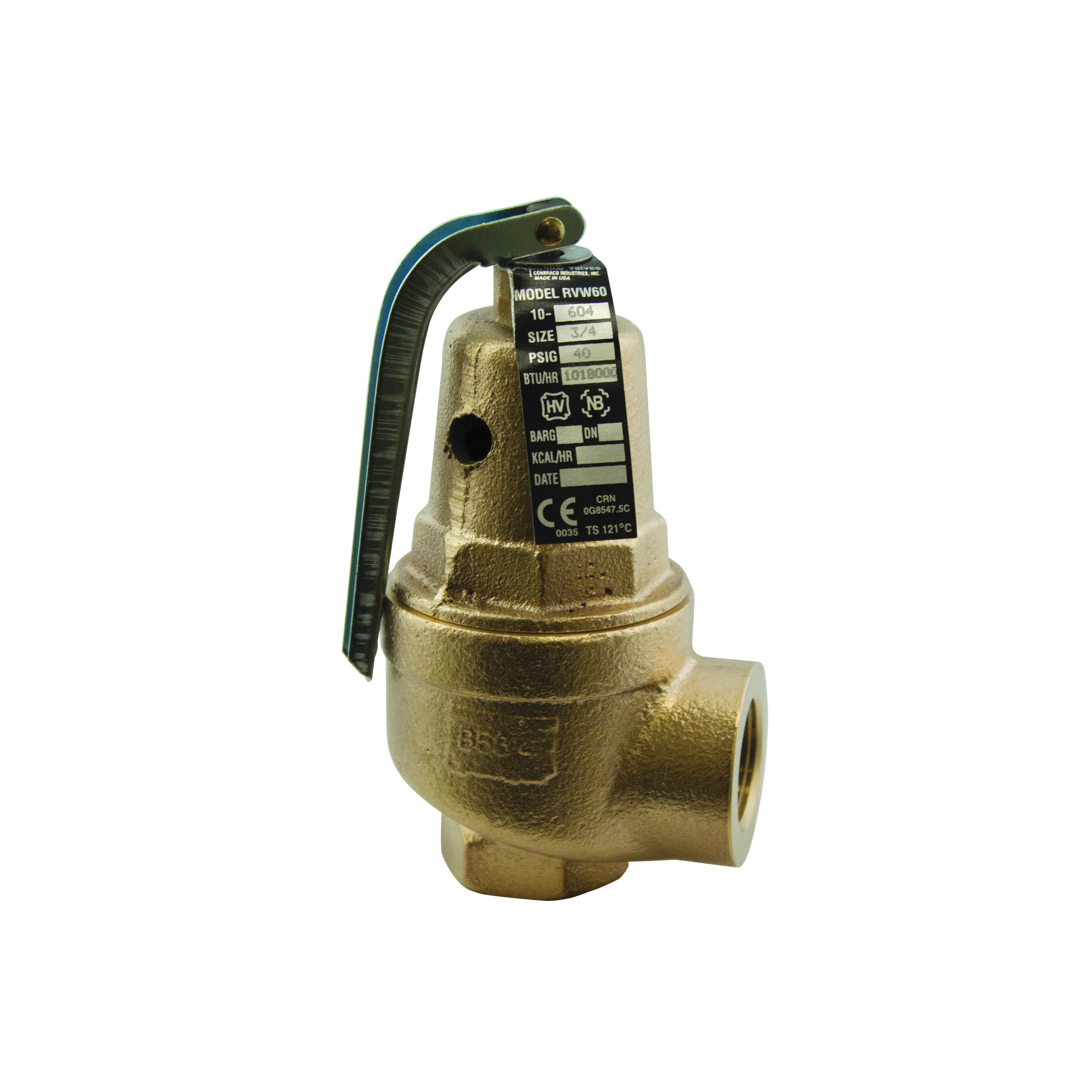

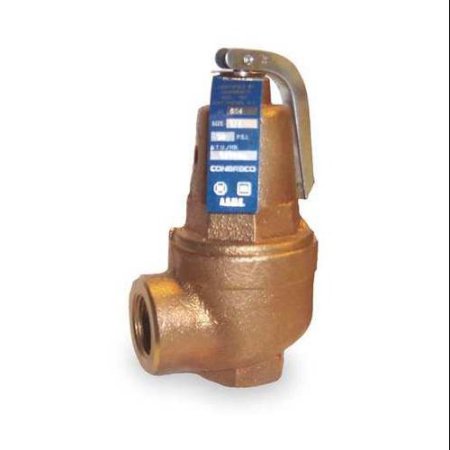

Conbraco 10-604-10 Bronze Safety Relief Valve 3/4" FNPT 50 PSI Hot Water

The Conbraco 10-604-10 is an ASME Section IV capacity certified bronze safety relief valve designed for protection of hot water heating boilers, systems and similar equipment. This Model RVW60 valve features 3/4" FNPT inlet and outlet connections, is preset to 50 PSI, and has a high capacity rating of 1,209,000 BTU per hour.

Key Features:

• Bronze body construction with silicone seat and brass disc for corrosion-resistant performance
• Can be pre-set to any pressure ranging from 15 to 160 psig at 250°F maximum operating temperature
• Diaphragm isolated spring chamber with steel-plated alloy spring
• Elevated seat design for drainage of water away from seat area
• Entire pressure range is National Board capacity certified

This high-capacity safety relief valve provides reliable overpressure protection for hydronic heating systems, ensuring safe operation while meeting ASME standards. Ideal for commercial and residential hot water boiler applications requiring dependable safety controls.
