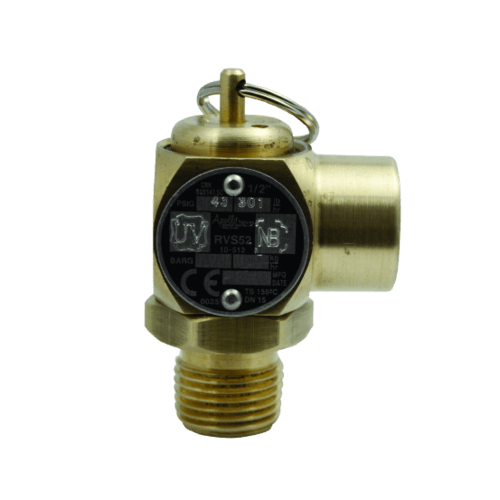

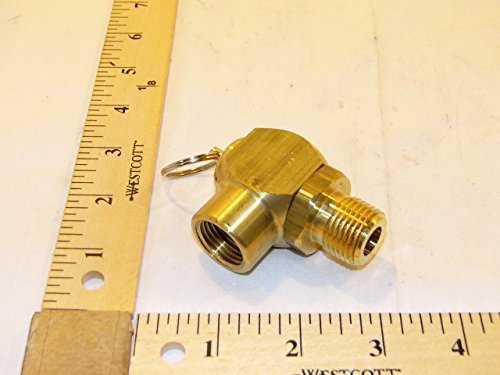

Conbraco 10-512-B50 Steam Safety Relief Valve 1/2 Inch 50 PSI Brass

The Conbraco 10-512-B50 (also known as Apollo 10-512-B50) is a compact, high-quality brass steam safety relief valve designed to protect low-pressure steam systems from overpressure conditions. This ASME Section VIII capacity-certified valve provides reliable protection for steam systems, cookers, kettles, sterilizers, and similar commercial and industrial equipment.

Key Specifications:

• Inlet Size: 1/2 inch male NPT
• Outlet Size: 1/2 inch female NPT
• Set Pressure: 50 PSI
• Capacity: 339 pounds per hour (339,000 BTU/hr)
• Maximum Temperature: 300°F (149°C)
• Model: RVS52

Features:

• Brass body construction for durability and corrosion resistance
• Silicone seat for dependable sealing performance
• ASME Section VIII certified capacity rating
• Compact design for easy installation in tight spaces
• Manual test lever for periodic testing and maintenance
• Made in USA for quality assurance

This safety relief valve must be installed in a vertical upright position directly to the pressure vessel. It is designed to automatically relieve excess pressure when system pressure exceeds the set point, protecting equipment and personnel from dangerous over-pressurization.
