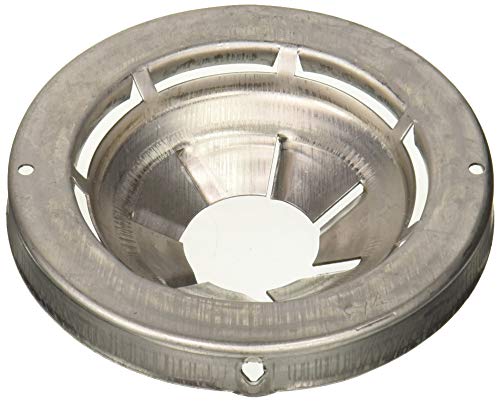

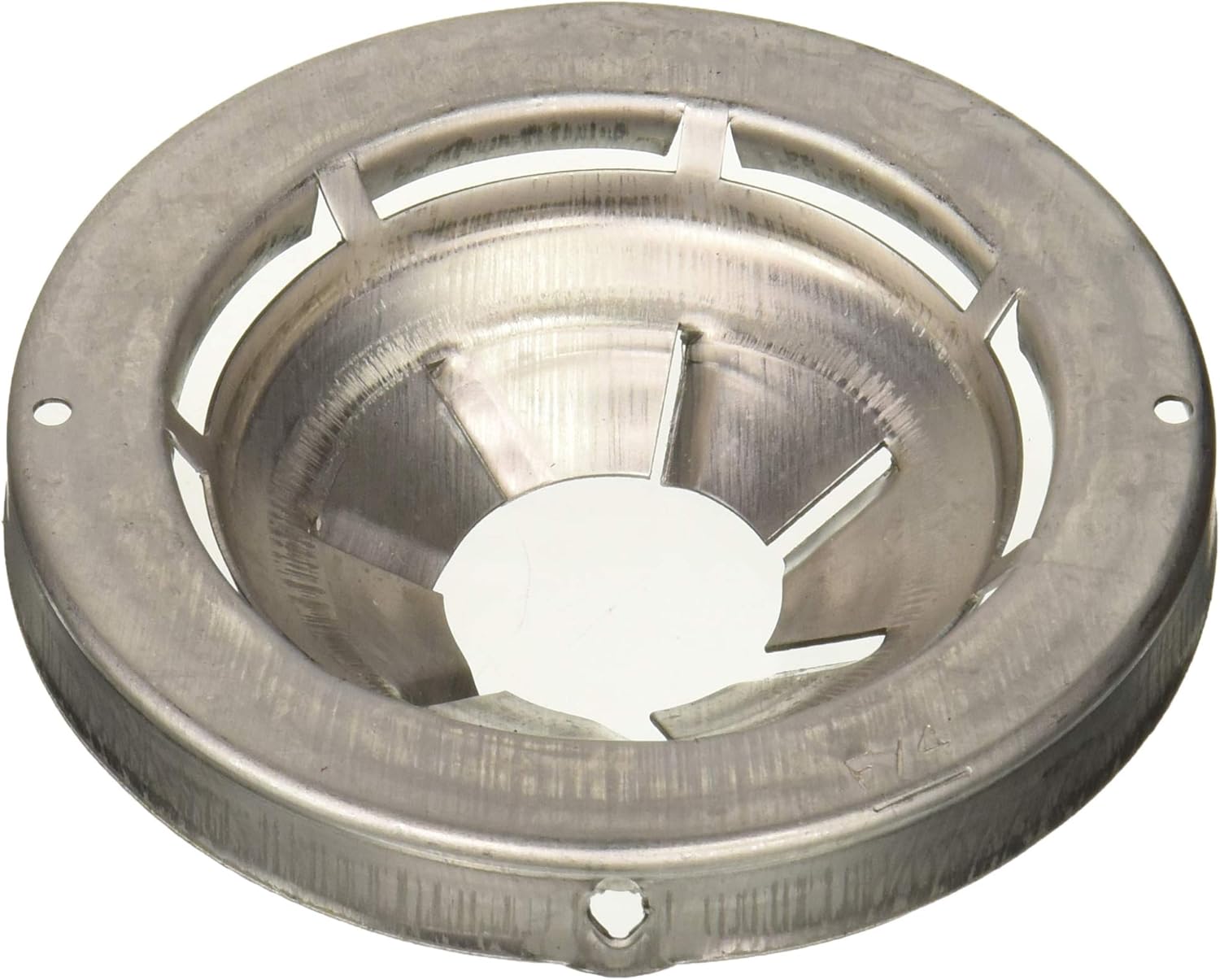

Beckett F4 Replacement Combustion Head for Oil Burners

The Beckett F4 is a replacement combustion head (also known as a turbulator, retention ring, or fire ring) designed for use with Beckett AF, AFG, and SM series oil burners. This combustion head supports a firing rate of 0.85 to 1.35 GPH, making it suitable for mid-range residential and light commercial heating applications.

Key Features:

• Compatible with Beckett AF and AFG series burners (0.85-1.35 GPH firing rate)
• Also works with SM series burners (1.00-1.35 GPH firing rate)
• Creates optimal air pattern at the end of the air tube for efficient combustion
• Direct replacement for worn or damaged combustion heads
• Genuine Beckett part number 360004
• 3-3/8 inch static plate dimension

The combustion head is a critical component that creates a specific pattern of air at the end of the air tube, ensuring proper fuel-air mixing and efficient flame retention. This component should be inspected annually during routine burner maintenance and replaced if damaged or worn.

Important: This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Improper installation can result in inefficient operation, equipment damage, or safety hazards. Always follow manufacturer specifications for nozzle selection, pump pressure settings, and combustion adjustment procedures.
