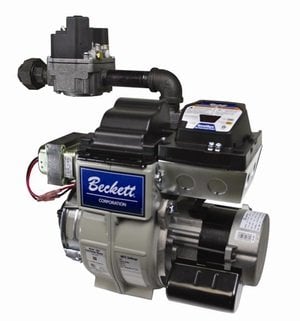

Beckett CG4001 Natural Gas/LP Conversion Burner with GeniSys 7590 Control

The Beckett CG4001 is a professional-grade gas conversion burner designed to replace oil burners in residential and light commercial boilers. This conversion solution allows you to upgrade from oil to natural gas or LP gas while preserving existing boiler components, saving thousands in replacement costs.

Key Features:

• Capacity: 80,000 to 250,000 BTU/hr input range
• Dual fuel capability: Natural gas or LP gas operation
• Advanced GeniSys 7590 burner control with flame rod and air proving
• 24-volt gas valve with 3.5" W.C. rating
• PSC motor with 120V/60Hz operation (3 amps running, 12 amps LR)
• New Beckett gas igniter for reliable starts
• Proven fixed head combustion design
• Removable gas gun assembly for easy servicing
• Easy access orifice for rate changes and propane conversion
• Air guide provides high static pressure for smooth starts and minimal pulsation

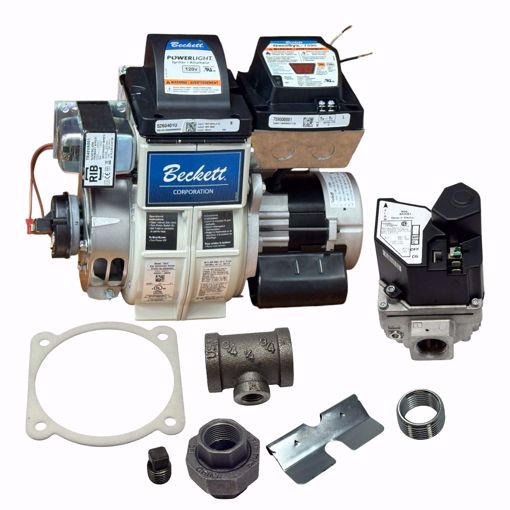

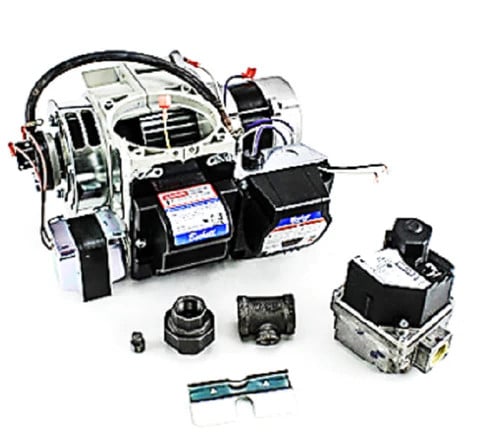

What's Included:

• CG4 burner chassis with GeniSys 7590 control
• PSC motor
• Beckett igniter
• 24V gas valve

Important: Air tube combinations with welded flanges are required for installation and must be ordered separately based on your specific boiler model. Compatible with many popular brands including Peerless, Weil McLain, Buderus, and more. Optional BeckettLink wireless diagnostic tool available separately for smartphone/tablet programming and diagnostics.

Dimensions: 14.4" H x 13.1" W x 15.8" D (with air tube)
