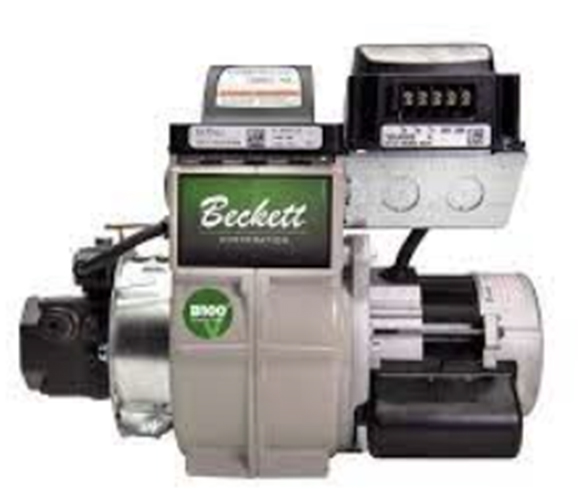

Beckett BR100 AFG Oil and Biofuel Burner with GeniSys 7565 Control, PSC Motor

The Beckett BR100 AFG oil burner (also called an AFG burner chassis) is a residential oil burner that runs on heating oil and biofuel blends. It is compatible with biofuel up to B100. It comes with a GeniSys 7565 primary control, a PSC motor, an ignitor and a single-stage Beckett CleanCut fuel pump.

Key Features:

• GeniSys 7565 primary control with a 15-second pre-purge and a 2-minute post-purge
• Continuous-duty permanent split capacitor (PSC) motor, rated 1/7 HP at 3450 rpm
• Single-stage Beckett CleanCut fuel unit
• Beckett PowerLight solid-state igniter
• Firing range of 0.40 to 3.00 GPH (56,000 to 420,000 BTU/hr input)
• Runs on 120V AC, 60 Hz, single phase power
• Flame retention head design for smooth, efficient combustion

Please note: This is the burner chassis. Air tubes, mounting flanges, end cones and oil nozzles are sold separately. Installation should be done by a qualified, licensed contractor using calibrated combustion test equipment.
