Friedrich WRT2 Wireless Programmable Wall Thermostat for PTAC Units

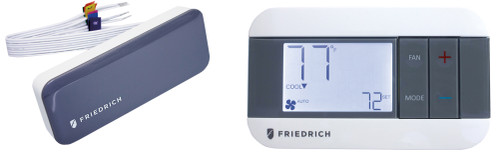

The Friedrich WRT2 is a programmable wireless electronic thermostat designed specifically for use with Friedrich Packaged Terminal Air Conditioner (PTAC) units. This system consists of two components: a receiver unit that wires directly to the PTAC unit and a transmitter unit that mounts on the wall and communicates wirelessly with the receiver.

Key Features:

• Programmable for 1, 2, or 4 periods per day with 7-day scheduling capability
• Wireless range of up to 100 feet with no obstructions and up to 50 feet through standard building materials
• Dimensions: 6.25 inches wide x 3.75 inches high x 2.25 inches deep
• Large temperature and set-point display with separate heating and cooling swing adjustments
• Dual power options: battery or 24V operation
• Temperature control range from 60°F to 90°F (16°C to 32°C)

Compatibility:

• Works with single-stage heat-cool PTAC units
• Compatible with single-stage heat pump PTAC units with or without electric heat
• Universal 1H/1C heat pump or conventional system compatibility

The WRT2 operates on 19 to 30 VAC input voltage with a maximum output rating of 1.5A per output wire. This model replaces the discontinued WRT-1 thermostat, offering enhanced programmability and improved features for precise climate control in commercial and residential PTAC applications.
