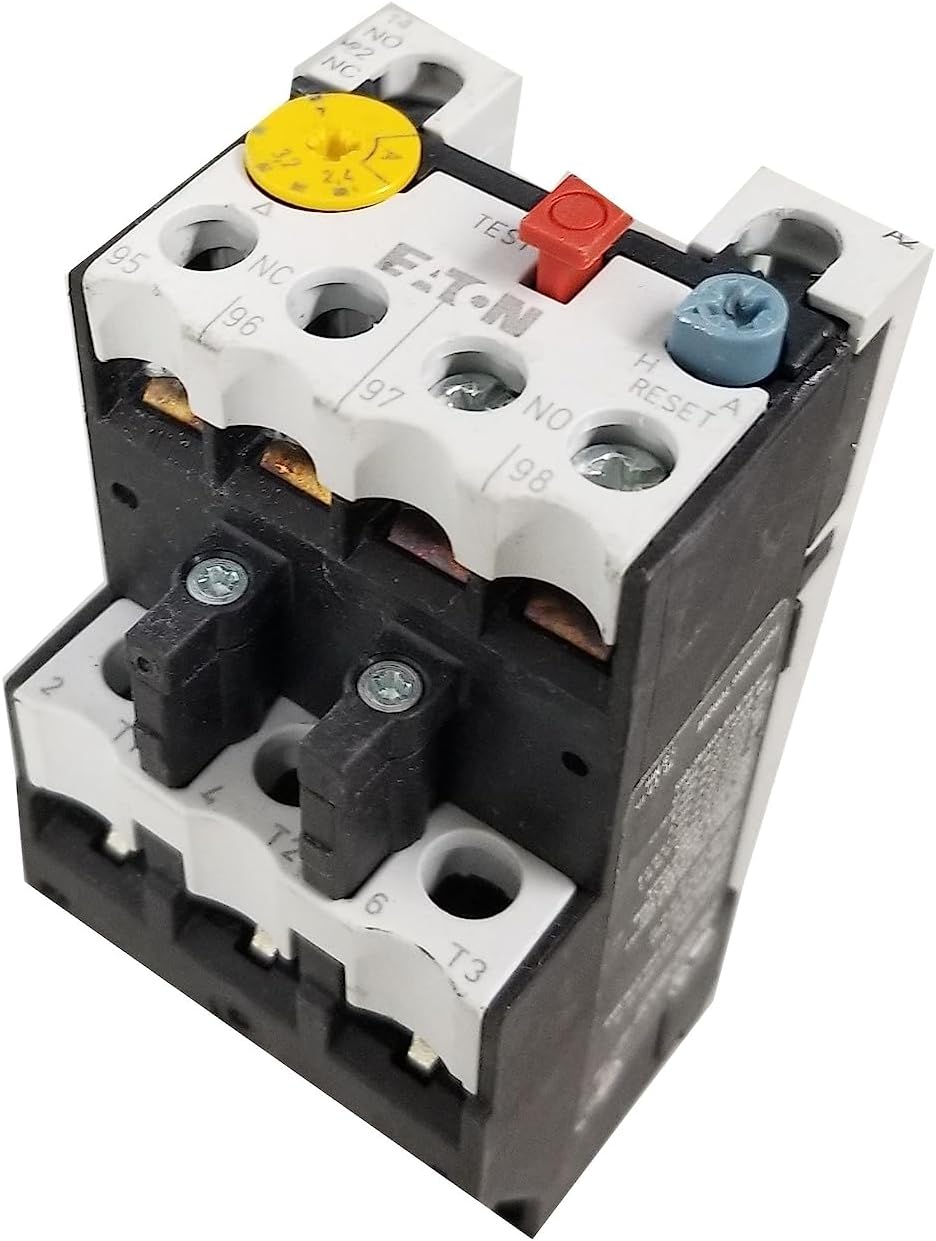

Eaton XTOB004BC1 IEC Thermal Overload Relay 2.4-4A

The Eaton XTOB004BC1 is a bimetallic thermal overload relay designed to provide reliable motor protection for industrial applications. This IEC-rated relay is part of Eaton's XT series and features an adjustable current range of 2.4 to 4 amps, making it ideal for use with 7-15A contactors.

Key Features:

• Adjustable current range: 2.4 to 4 amps
• Class 10 trip protection (trips in 10 seconds or less at overload condition)
• 1NO-1NC contact configuration for versatile wiring options
• Direct mounting to Eaton XT Series Frame B contactors (XTCE007B, XTCE009B, XTCE012B, XTCE015B)
• Selectable manual or automatic reset after trip
• 45mm frame size (Frame B)
• 3-pole configuration
• Test button actuator for quick functionality checks
• Phase loss protection
• Operating temperature range: -13°F to 131°F (-25°C to 55°C)
• 600VAC voltage rating

This thermal overload relay can be mounted directly to the contactor for space savings or installed separately using an optional mounting bracket. The bimetallic design provides accurate thermal motor protection, ensuring both equipment safety and operator protection. Compatible with the complete Eaton XT IEC contactor and starter system.
