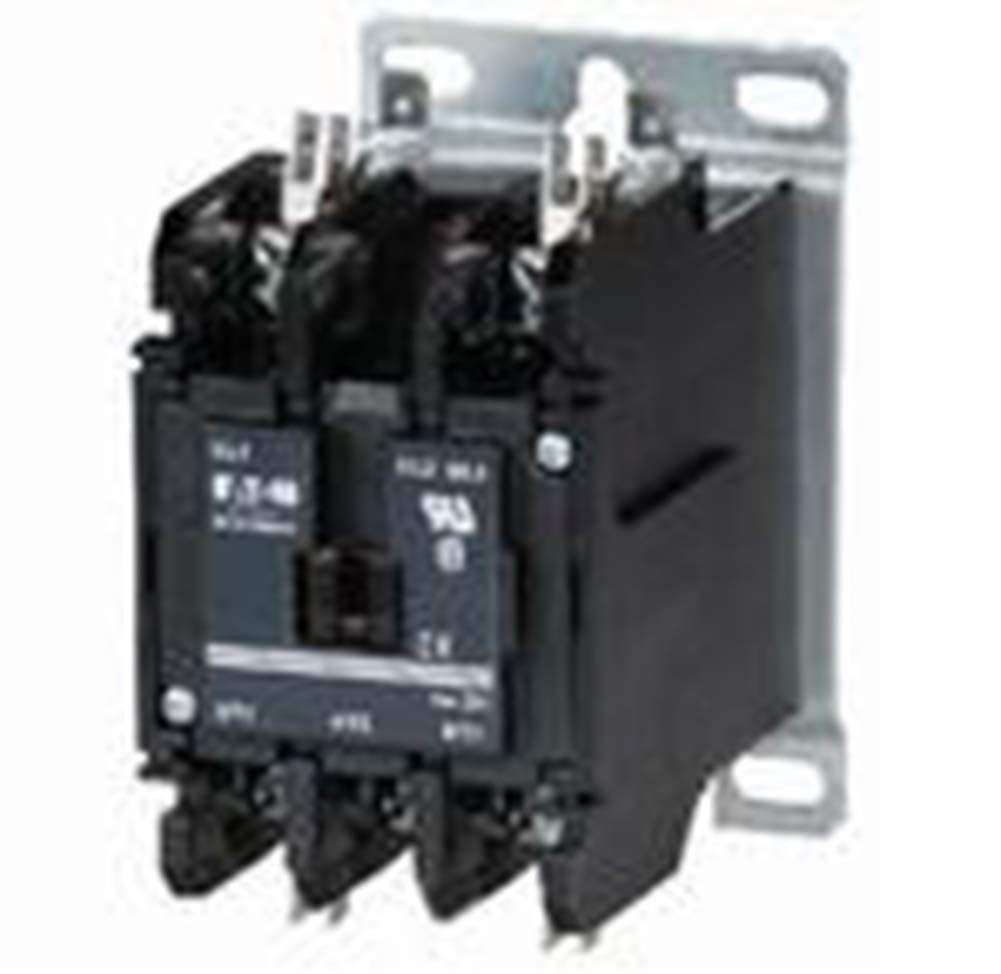

Eaton C25DNF240A Definite Purpose Contactor 2-Pole 40A 120V AC Coil Non-Reversing

The Eaton C25DNF240A is a commercial-grade, two-pole definite purpose contactor rated at 40 amps with a 110/120V AC, 50/60 Hz coil. Designed for demanding HVACR and industrial motor control applications, this non-reversing contactor delivers reliable switching performance for high-duty-cycle equipment including compressors, pumps, air conditioning units, refrigeration systems, and resistive heating loads.

Part of Eaton's industry-leading C25 series, this compact contactor features an open-type enclosure with a heavy-duty metal mounting plate and box lugs with posidrive setscrew and quick connect terminals, ensuring a secure, low-resistance connection that holds up under vibration and repeated thermal cycling. The magnet housing design limits dust and contaminant ingress, reducing operational noise and extending service life.

Key Specifications:

• Amperage Rating: 40A
• Number of Poles: Two-pole (2P)
• Coil Voltage: 110–120V AC / 48V DC
• Coil Frequency: 50/60 Hz
• Voltage Rating: 600V AC
• Contact Configuration: 1 NO (Normally Open)
• Operation Type: Non-reversing
• Enclosure: Open with metal mounting plate
• Terminal Type: Box lugs (posidrive setscrew) + quick connect
• Insulation Voltage: 690V
• Magnet Coil Class: Class F, 155°C
• Operating Temperature: -13°F to 158°F (-25°C to +70°C)
• Wire Range: 16–10 AWG
• Listing: UL Recognized, CSA Certified, RoHS Compliant, Global Listed
• Warranty: 1 Year

Compatible Applications:

• Heating, ventilation, and air conditioning (HVAC)
• Commercial refrigeration
• Data processing equipment
• Food service equipment
• Pumps and compressors
• Lighting control

The C25DNF240A is a direct physical and electrical replacement for the Siemens/Furnas 42CF15AF contactor. Snap-on side-mounted auxiliaries are supported, providing additional flexibility for panel integration and field retrofits.
