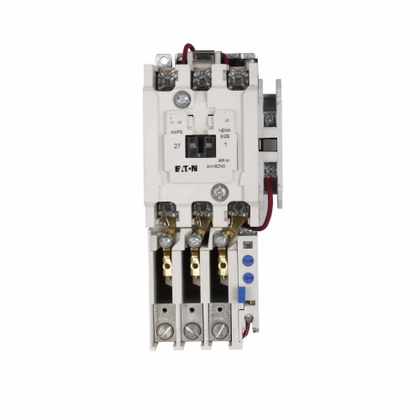

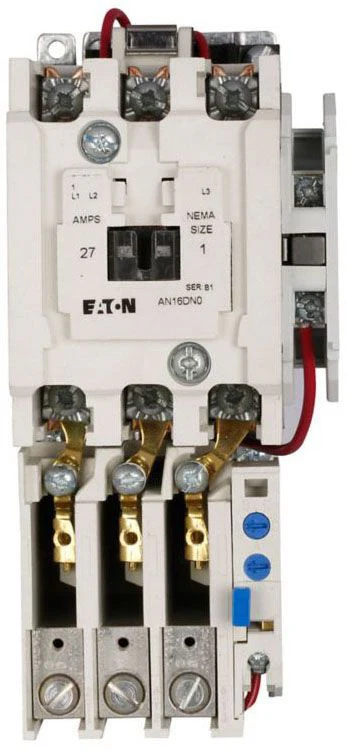

Eaton AN16DN0CB 480V Size 1 3-Pole Non-Reversing Motor Starter

The Eaton AN16DN0CB is a NEMA full voltage non-reversing starter rated for 27 amps with a 480V/60 Hz or 440V/50 Hz coil voltage. This Freedom Series motor control starter is designed for optimal performance in industrial and commercial environments, featuring non-reversing action and capable of handling motors with horsepower ratings from 2 HP at 115V to 10 HP at 480V.

Key Features:

• Three-pole full voltage magnetic starter with open type enclosure including one auxiliary contact
• Integrated three-pole design ensuring comprehensive motor control and equipped with a bimetallic C306 overload relay for efficient protection
• 600V rated, 3-phase magnetic, thermal overload relay
• Compatible with single-phase and three-phase applications with standard NEMA construction
• Compact and space-saving design, suitable for setups where space is at a premium

This UL Listed and CSA Certified starter measures 4.61 inches deep by 3.31 inches high by 4.38 inches wide and weighs 2.6 pounds. The unit accommodates maximum wire size of #2 for NEMA Sizes 1 and 2. Note that heater packs must be purchased separately for the C306 overload relay to function properly.
