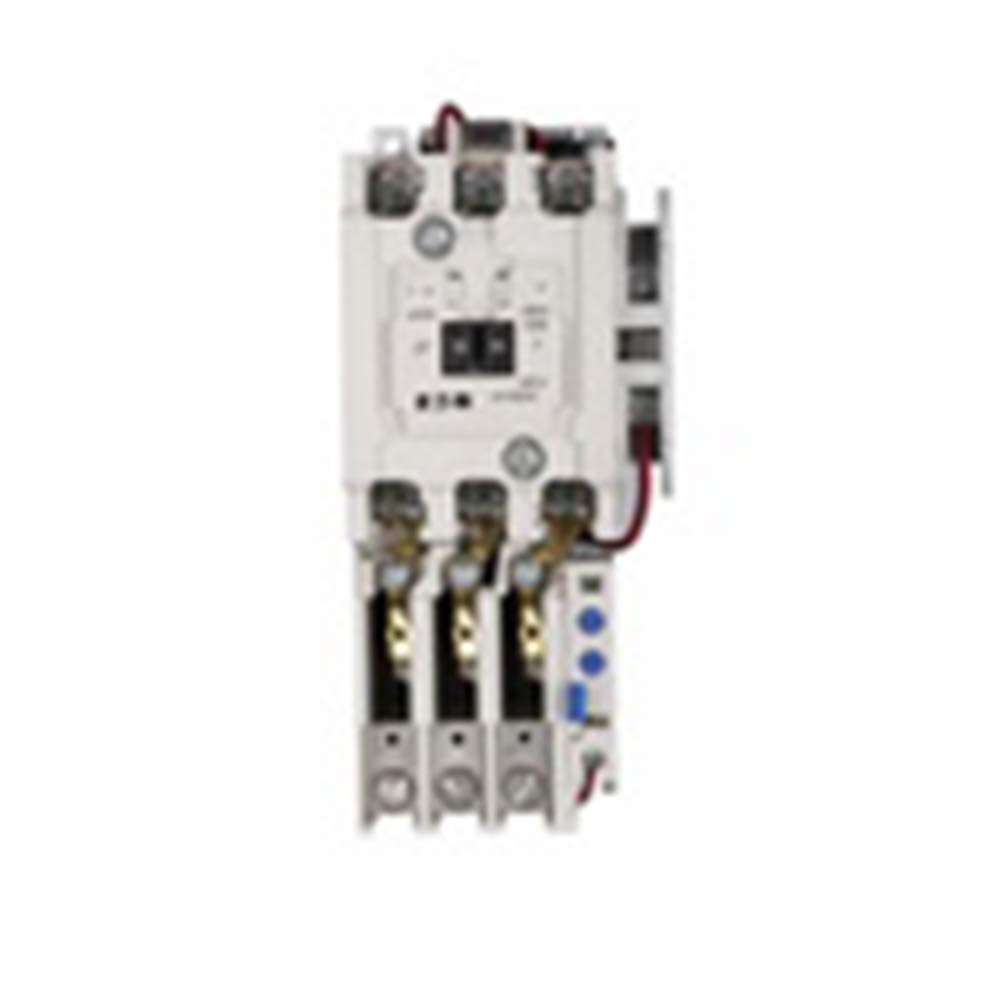

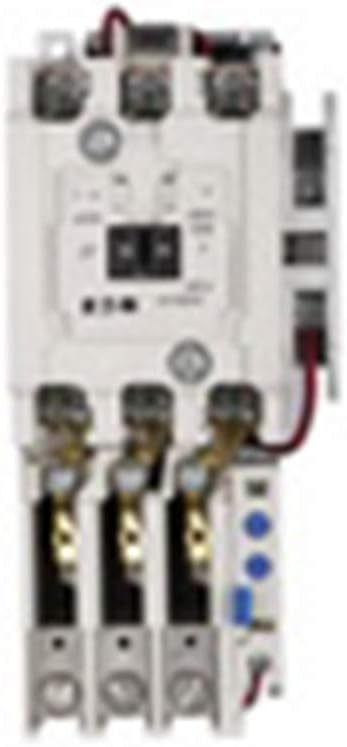

Eaton AN16DN0BB Freedom NEMA Size Motor Starter Coil - 1 27A 240V

Manufacturer

Part Number

AN16DN0BB
Black Friday Price

$653.02

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Eaton AN16DN0BB Freedom NEMA motor starter is a non-reversing full voltage starter with bimetallic thermal overload relay protection, designed for reliable three-phase motor control applications. This NEMA Size 1 starter is rated for 27 amps and features a 240V/60 Hz or 220V/50 Hz coil voltage, making it suitable for a wide range of industrial and commercial motor control installations.

Key Specifications:

  • Maximum horsepower ratings: 2 hp at 115V, 3 hp at 230V, 7.5 hp at 208/240V, and 10 hp at 480/600V
  • Three-pole, three-phase magnetic starter with thermal overload protection
  • 600V rated construction for industrial applications
  • Ambient compensated bimetallic overload relay with selectable manual or automatic reset
  • Interchangeable Class 10 or 20 heater packs with 1.0 or 1.15 service factor selectability
  • Heater packs sold separately and required for overload protection

Features and Benefits:

  • Compact, space-saving design utilizing state-of-the-art technology and high-strength, impact and temperature resistant materials
  • Top-located coil terminals that are convenient and readily accessible
  • Steel mounting plate included standard on open type starters
  • Overload trip indication and electrically isolated NO-NC contacts
  • Accepts wire sizes up to #2 AWG for Size 1 starters
  • Compatible with full line of snap-on accessories common to both IEC and NEMA devices

The Freedom Series AN16 motor starter combines exceptional reliability with ease of installation and maintenance. The interchangeable heater pack design reduces the number of different contactor/overload relay combinations that need to be stocked, simplifying inventory management. This open-type starter is ideal for panel mounting in industrial control systems, HVAC applications, pumps, conveyors, and general motor control applications requiring NEMA Size 1 ratings.

Note: Heater packs must be selected and ordered separately based on motor full load amperage requirements.
