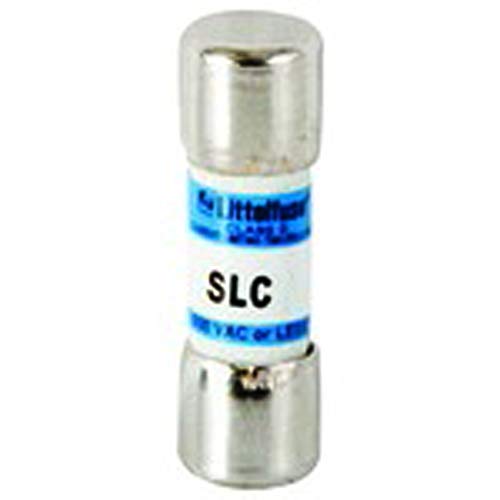

Littelfuse SLC002 2A 600V Class G Time-Delay Current-Limiting Fuse

The Littelfuse SLC002 is a 2-Amp, 600V AC / 170V DC Class G time-delay, current-limiting cartridge fuse designed for reliable branch circuit protection in industrial and commercial electrical systems. Part of Littelfuse's POWR-GARD® SLC Series, this fuse meets National Electrical Code (NEC) requirements and is rated for demanding overcurrent protection applications.

Key Specifications:

• Ampere Rating: 2A
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 170V DC
• Fuse Class: Class G
• Interrupting Rating: 100,000A (100 kA) RMS Symmetrical at 600V AC; 10,000A (10 kA) at 170V DC
• Body Style: Cylindrical cartridge (ferrule type)
• Physical Dimensions: 1-5/16" length x 13/32" diameter
• Body Material: Melamine
• Nominal Cold Resistance: 0.31 Ohms
• Operating Speed: Medium time-delay (slow blow)
• Element Type: Single, non-indicating

Features & Benefits:

• Medium time-delay design allows fuses to be sized closer to actual equipment requirements, eliminating the need to over-size for harmless inrush currents
• Rejection-style dimensions prevent insertion of lower-voltage fuses into Class G fuse holders, enhancing system safety
• Varying fuse length prevents insertion of higher ampere-rated fuses into holders designed for lower ampere ratings — no over-fusing risk
• Current-limiting design provides excellent downstream component protection
• Compact dimensions approach midget fuse size while meeting full NEC branch-circuit protection requirements
• Compatible with GFB-style Class G fuse blocks and rejection-type fuse holders

Certifications & Standards:

• UL Listed (UL 248-5 Class G)
• CSA Certified
• CE Marked
• RoHS Compliant (2011/65/EU)
• Meets Federal Specification QPL-W-F-1814

Cross-Reference / Equivalent Series: Bussmann SC Series, Mersen/Ferraz Shawmut AG Series

Alternate Part Numbers: 0SLC002.T, SLC-002, SLC 2A, SLC2A, SLC-2A, SLC 2

The SLC002 ships in packs of 10 (ordering number: 0SLC002.T). It is an economical and reliable choice for branch circuit protection in control panels, motor control centers, and industrial equipment where a compact Class G form factor is specified.
