UMI Performance 64015-B Stage 1.5 Handling Kit with Viking Double Adjustable Shocks - Black

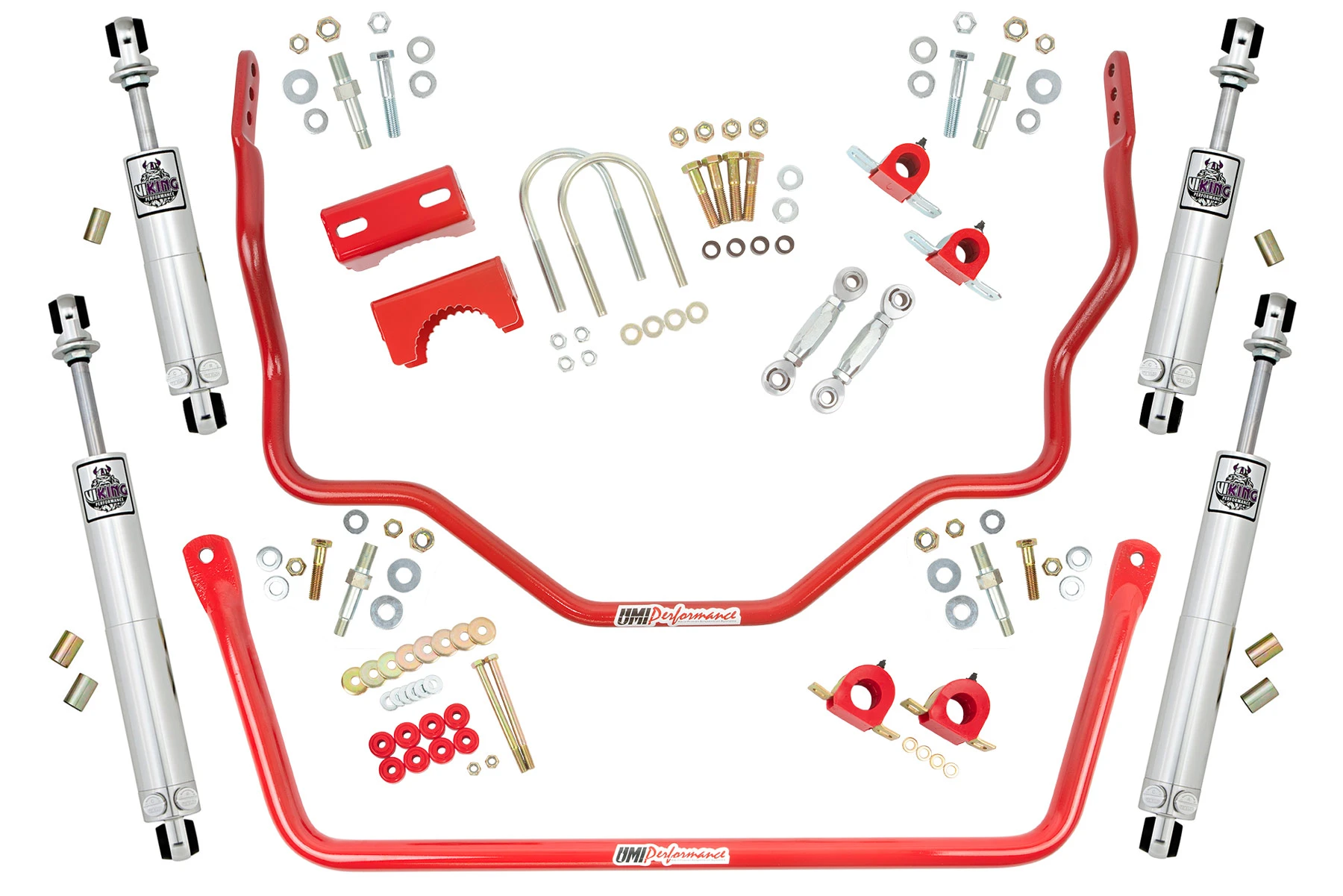

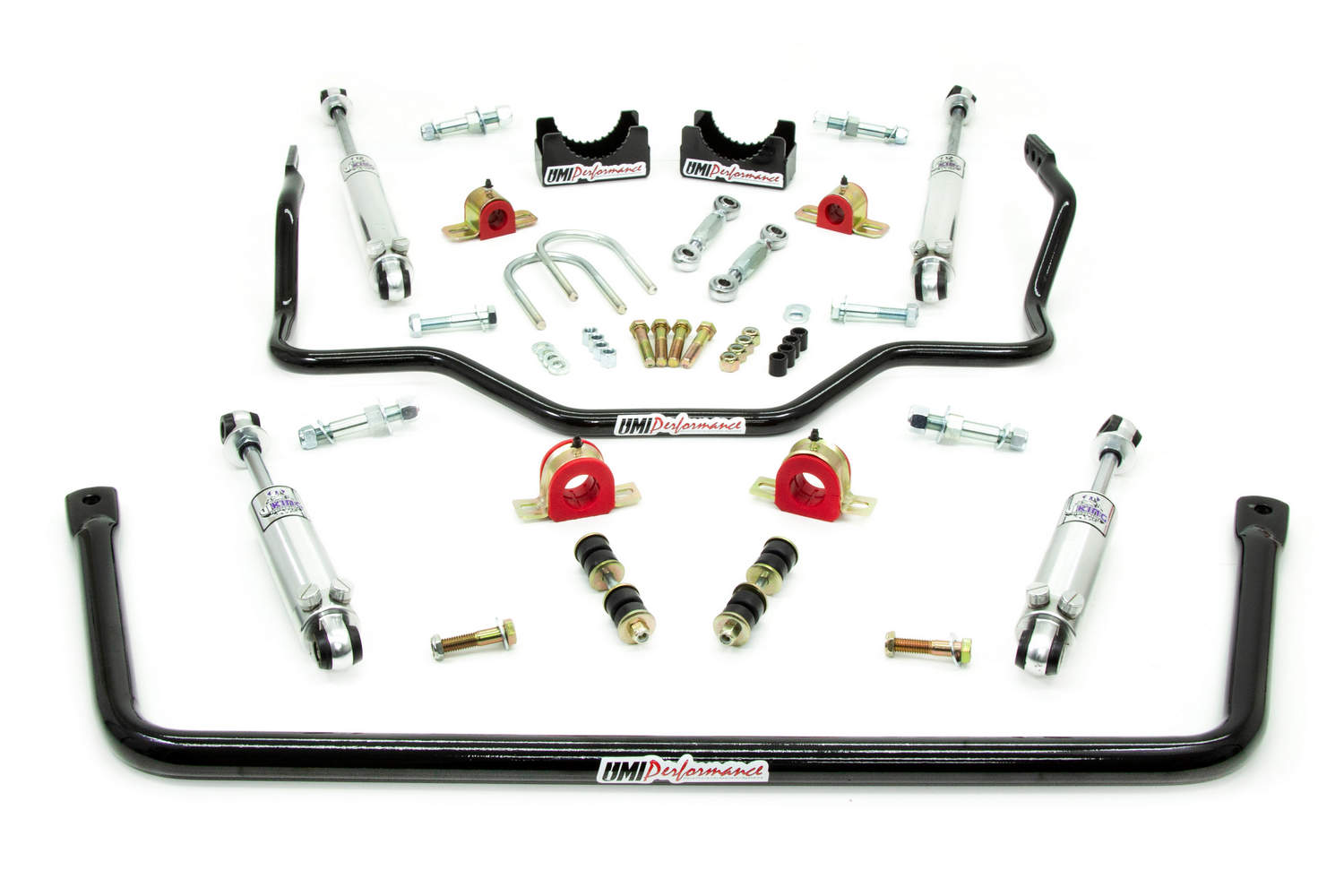

The UMI Performance 64015-B Stage 1.5 Handling Kit is a comprehensive suspension upgrade package built entirely in the USA. Designed to deliver exceptional ride quality and handling balance, this kit pairs a heavy-duty tubular front sway bar with a three-way adjustable solid rear sway bar and double adjustable Viking performance shocks. Power Tour and daily driver proven, the Stage 1.5 kit is equally at home on the street, at the drag strip, or carving corners.

The included Viking double adjustable shocks offer 19 independent positions in both compression and rebound — totaling 361 unique tuning combinations — giving you precise control over your suspension setup for any driving condition. The front shocks provide a ride height range of 11-5/8" to 12-5/8", while the rear shocks accommodate a ride height range of 16-5/8" to 18-3/8", making this kit fully compatible with stock-height trucks. Lowered trucks can also be accommodated with the addition of UMI P/N 6411 rear shock relocation brackets.

Key Features:

• 1-3/8" tubular front sway bar for heavy-duty roll control
• Three-way adjustable 1" solid rear sway bar for tunable handling balance
• Viking double adjustable shocks — 19 compression and 19 rebound positions (361 total combinations)
• Front shock extended length: 14.240" | Collapsed: 10.040"
• Rear shock extended length: 21.360" | Collapsed: 13.610"
• Front shock ride height range: 11-5/8" to 12-5/8"
• Rear shock ride height range: 16-5/8" to 18-3/8"
• Compatible with stock-height trucks; works with lowered trucks when UMI #6411 shock relocation is added
• 100% Made in the USA — laser-cut components, machine-guided DOM tubing bends, and Tiger Dry Lac powder coat finish
• Power Tour and daily driver proven
• Black powder coat finish (MPN 64015-B)

UMI Performance components are precision-crafted using North American sourced steel, CNC laser-cut parts, and robotic welding for consistent quality. Every fabricated component is finished with a durable Tiger Dry Lac powder coat for long-lasting protection. The Stage 1.5 kit is the ideal balance of street manners and performance capability, delivering improved sway control, body roll reduction, and shock tunability in a single bolt-in package.
