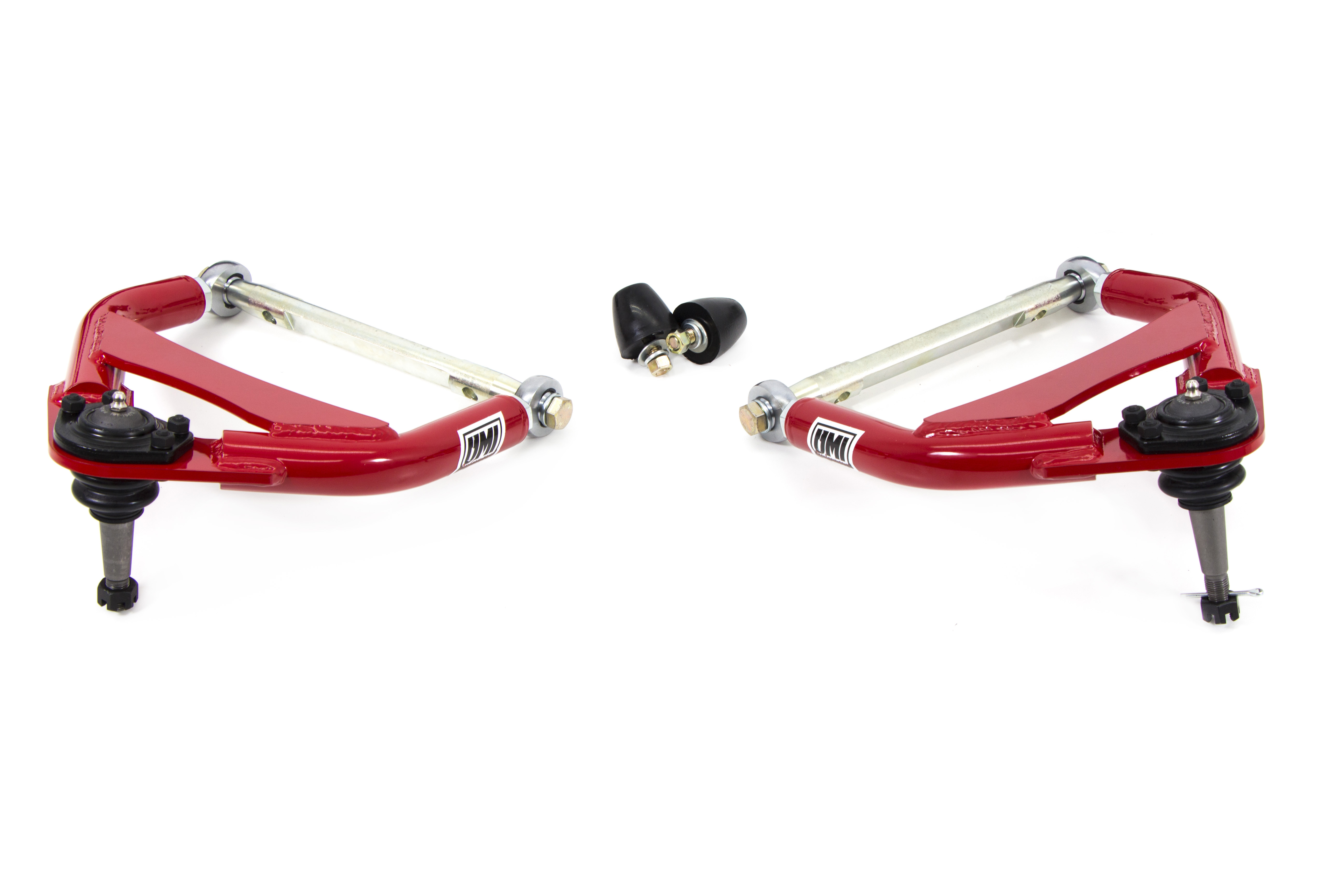

UMI Performance 4056-2-R Adjustable Upper Front Control A-Arm Powder Coat - Red

The UMI Performance 4056-2-R is an adjustable upper front A-arm engineered for A-body Pro Touring and performance builds. Hand-built in Philipsburg, PA using U.S. materials, this arm is designed to deliver measurably improved front-end handling through a relocated ball joint pad and precision-adjustable rod ends. The red powder coat finish provides a durable, show-quality appearance.

The arm features a laser-cut ball joint mounting pad that positions the upper ball joint ½" higher than stock, improving the camber curve for increased front-end grip. The ball joint plate is also relocated rearward, generating increased caster and sharper steering feel — without requiring excess alignment shims. Two precision rod ends threaded onto a 4130 chromoly (CrMo) CNC-machined and zinc-plated cross shaft allow for easy arm length adjustment. The entire assembly is TIG welded for superior structural integrity and clean aesthetics.

Key Features:

• Adjustable upper A-arm with ½" taller premium ball joint installed
• Relocated ball joint pad for increased caster and improved steering response
• 4130 CrMo cross shafts — CNC machined and zinc plated
• 0.120" wall thickness, 1.250" diameter USA DOM tubing
• TIG welded construction for maximum strength and clean appearance
• Laser-cut bump stop brace included; polyurethane bump stops included
• Travel limiting bolt compatible (ideal for drag racing applications)
• Direct bolt-in compatible with factory or UMI lower A-arm and factory spindle
• Red powder coat finish — also available in black (Part # 4056-2-B)
• Designed, tested, manufactured, and raced in Philipsburg, PA — USA

What's Included:

• Upper A-arm assembly with ball joint installed
• Polyurethane bump stops
• Recommended alignment specifications
• Detailed installation instructions
• Hardware Kit Part #4003 — includes 7/16" Grade 8 bolts, washers, and nylock nuts for mounting

Important Notes: The UMI 4056-2 upper A-arm is designed for lowered vehicles. Use with stock-height or raised (cargo coil) vehicles is not recommended, as the bump stop may contact the cross brace. This arm is designed to work with factory-height spindles and increases effective spindle height by ½". May also be used in conjunction with select aftermarket lower A-arms and spindles — contact UMI Performance to confirm compatibility before ordering. UMI Performance is not responsible for fitment issues arising from the use of incompatible components.
