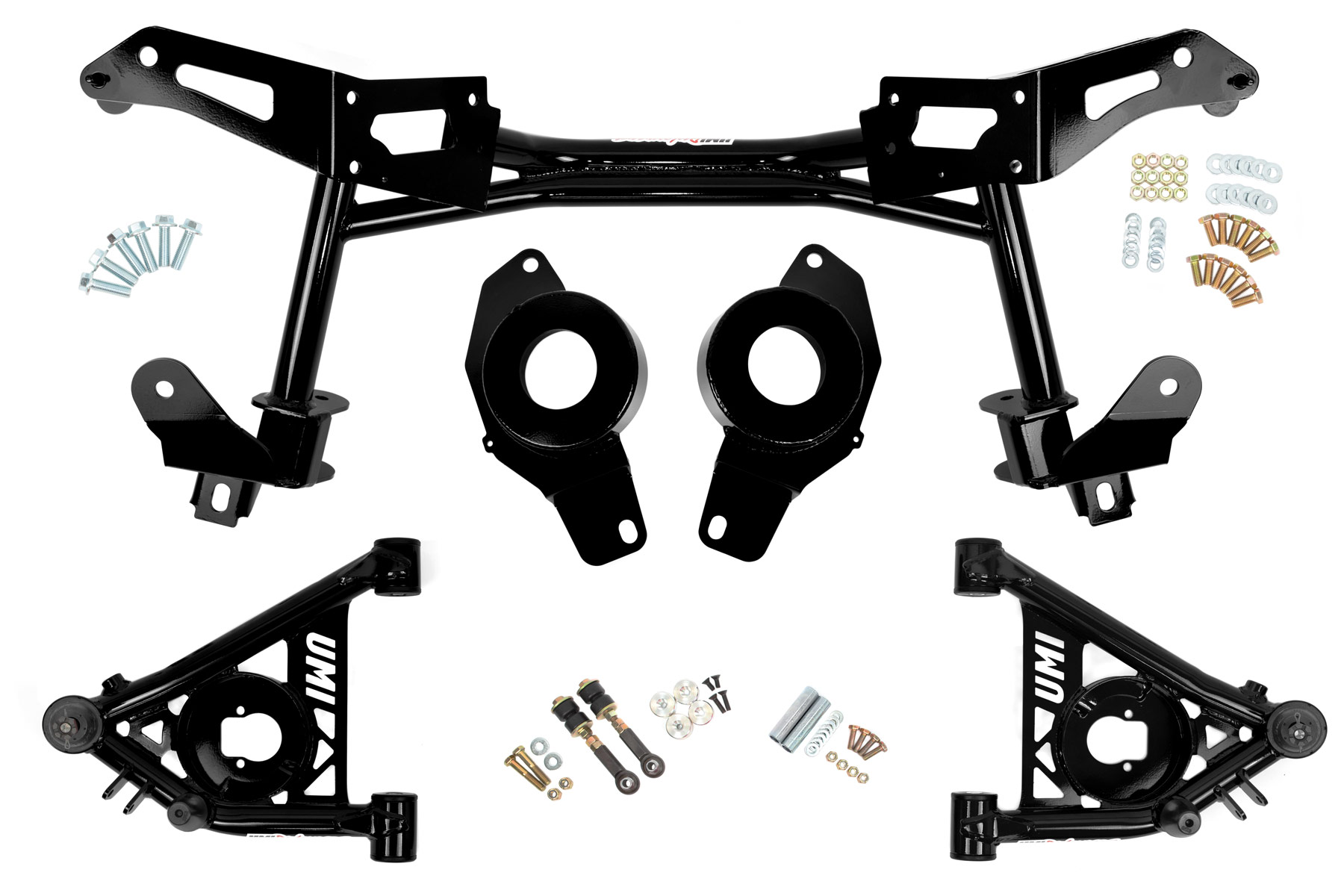

UMI Performance 240131-B Suspension Subframe K-Member & Lower A-Arms Kit

(1982-1992 Chevrolet Camaro; 1982-1992 Pontiac Firebird)

Manufacturer

Part Number

240131-B
Sale Price

$1,241.50

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The UMI Performance 240131-B is a direct bolt-in replacement suspension subframe (K-member) and lower A-arm kit built for street, drag strip and autocross use. It is designed to take weight off the front end while giving your suspension and engine a strong, precisely located foundation.

Key Features:

  • Direct bolt-in design, CNC machined and jig-built for straightforward installation
  • MIG and TIG welded construction
  • Double tube construction for added strength
  • K-member fabricated from 3/16" thick mild steel engine and suspension mounts, held together with 1-1/2" diameter DOM tubing
  • Reduces front end weight by 25 lbs
  • Includes new mounting hardware
  • Lower A-arms are jig-built, TIG welded tubular construction with polyurethane bushings installed
  • Lower A-arms include adjustable steering stops and a spring locating pocket
  • Accepts factory springs and lowering springs; the design permits stock spring and strut use
  • Modular design allows use of coil-overs and/or LS mounts
  • Factory clamshell and engine mounts bolt to precision machined mounting pads
  • Boxed mounting points locate both factory and aftermarket suspension
  • CNC machined lightening holes in the mounting plates; tubular construction provides added clearance for aftermarket exhaust
  • Durable powdercoat finish in red or black

LSX Motor Mount Option: The LSX option includes fabricated motor mounts to attach any LSX motor to the K-member. These mounts require factory rubber LS motor mounts and also work with aftermarket polyurethane motor mounts or UMI's solid motor mounts P/N 2323.

This K-member and A-arm kit is a strong, reliable upgrade for a high performance build, helping your existing horsepower work harder by cutting front end weight.

Products specifications

Fits

1982-1992 Chevrolet Camaro; 1982-1992 Pontiac Firebird
