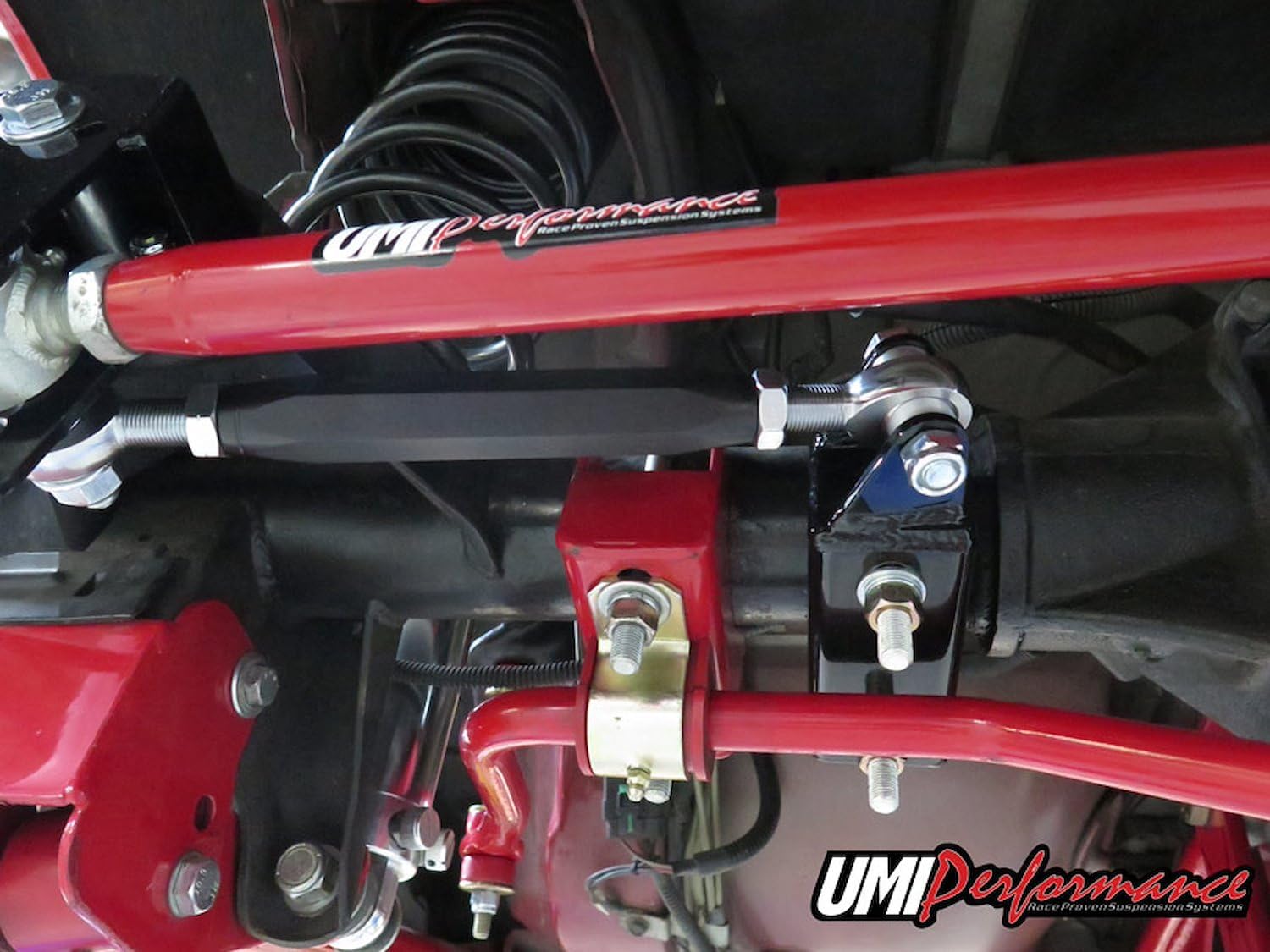

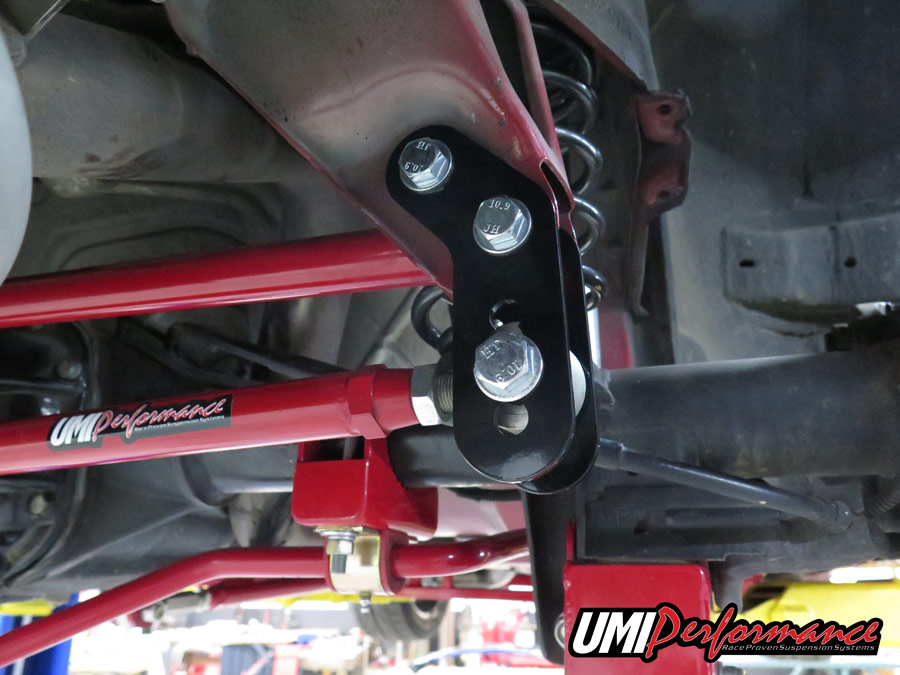

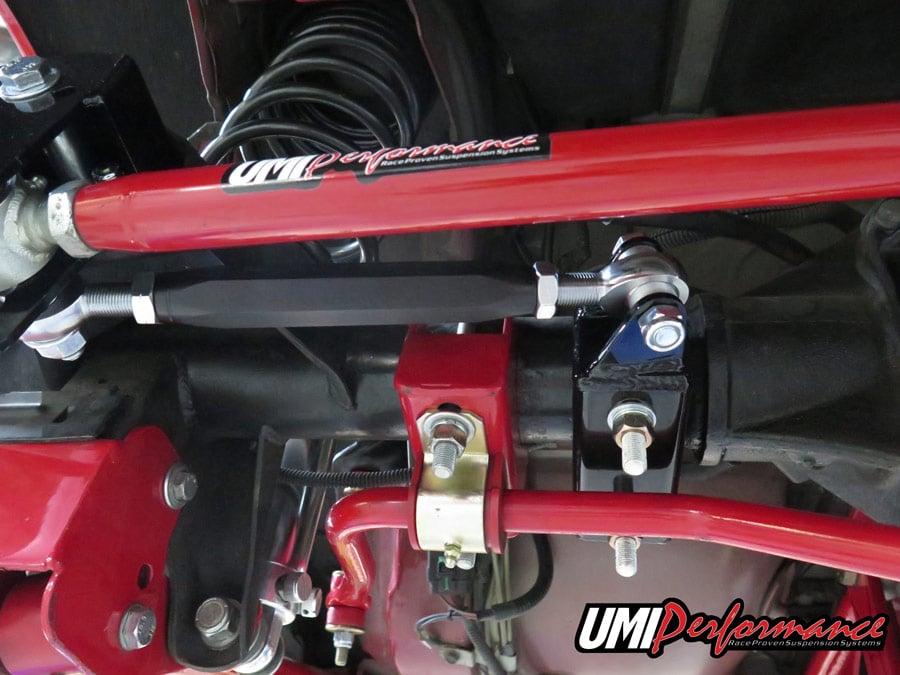

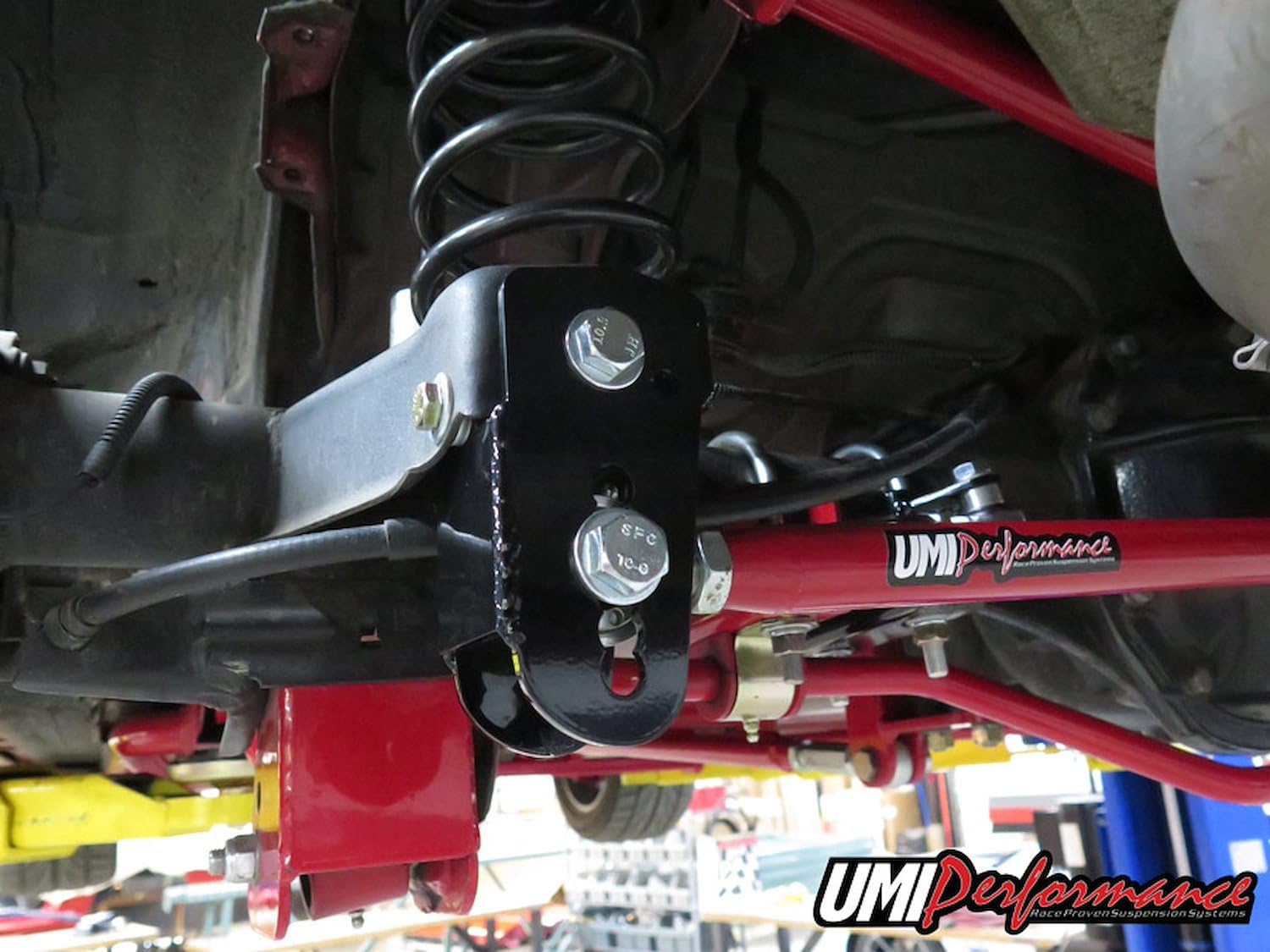

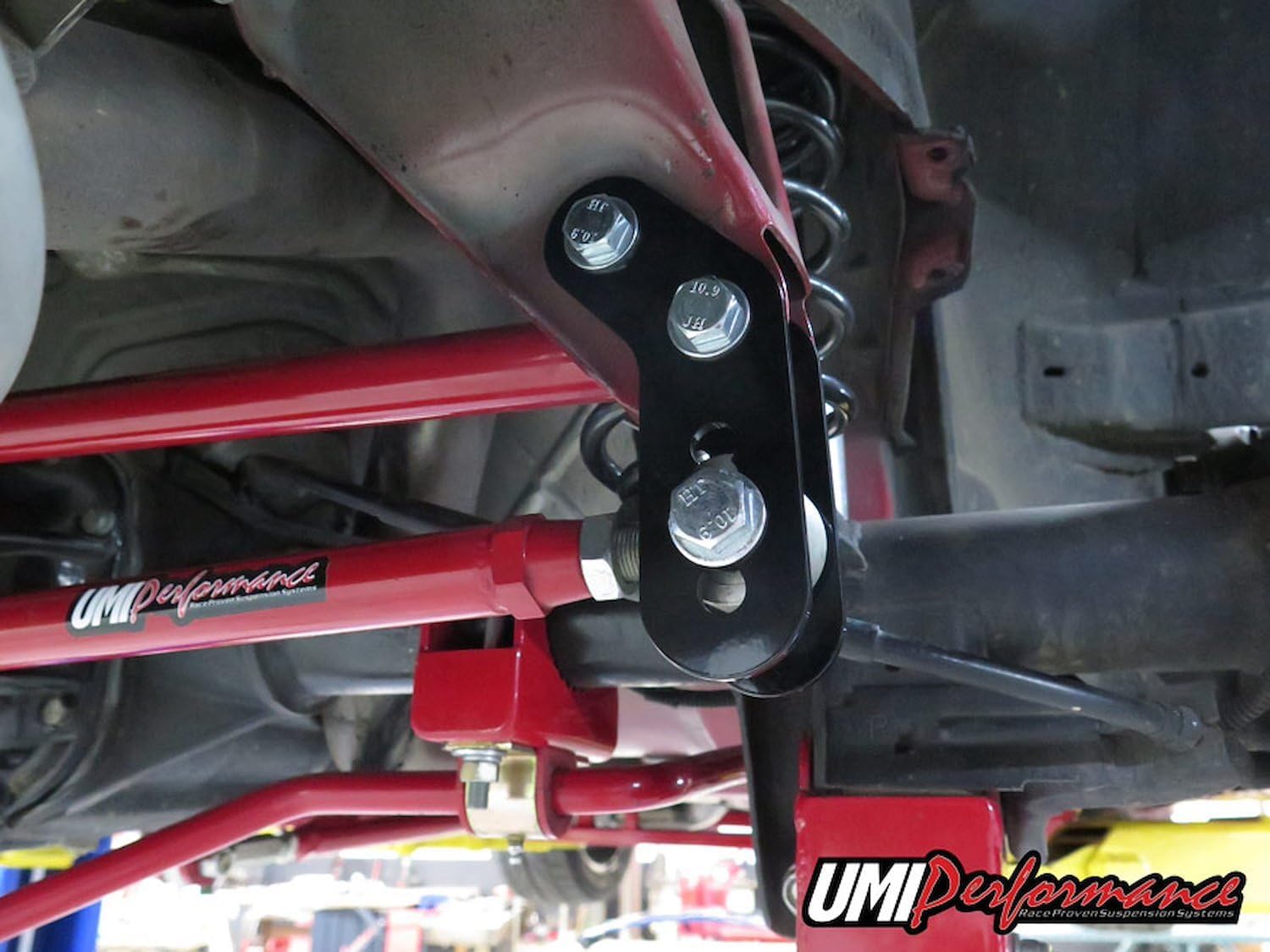

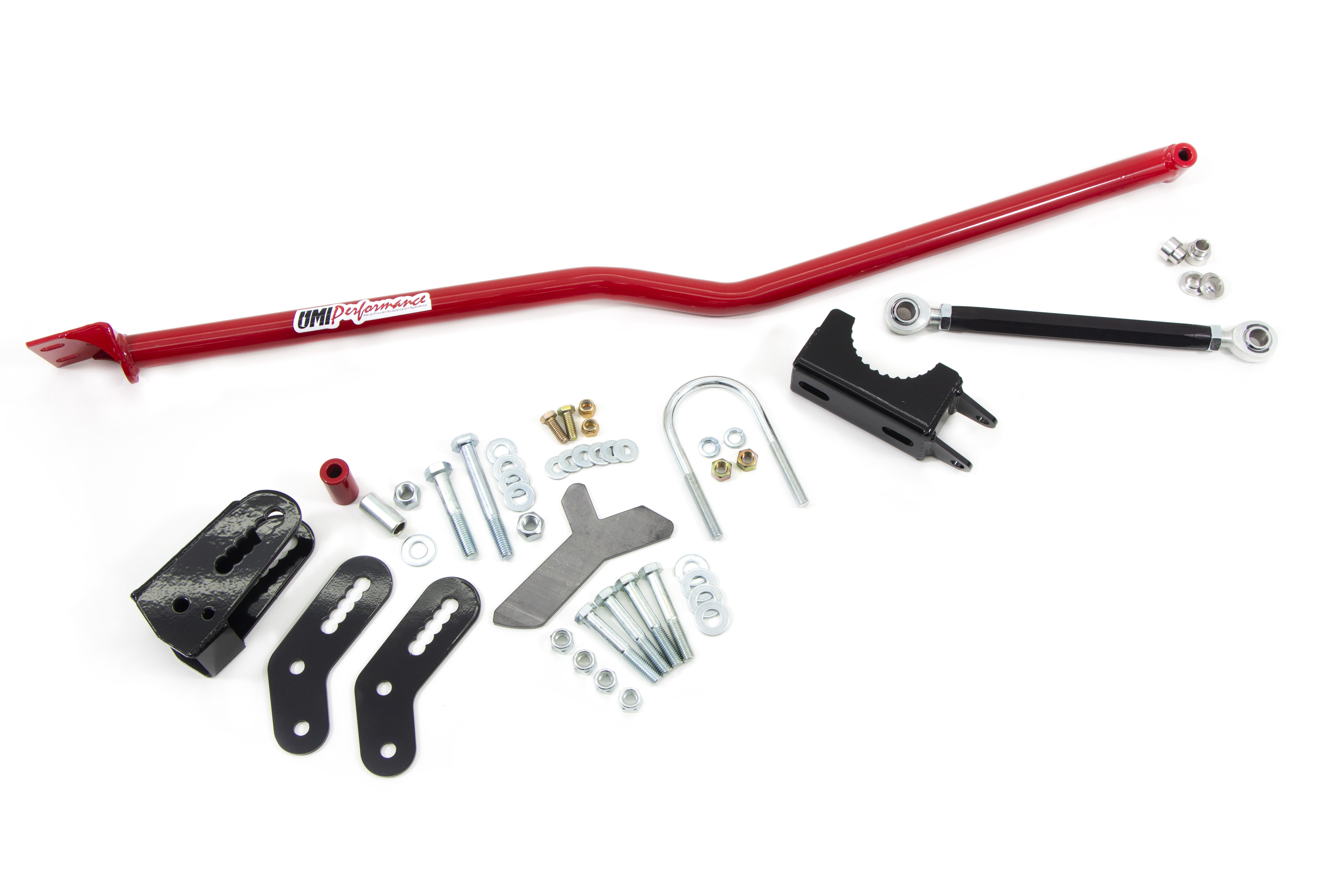

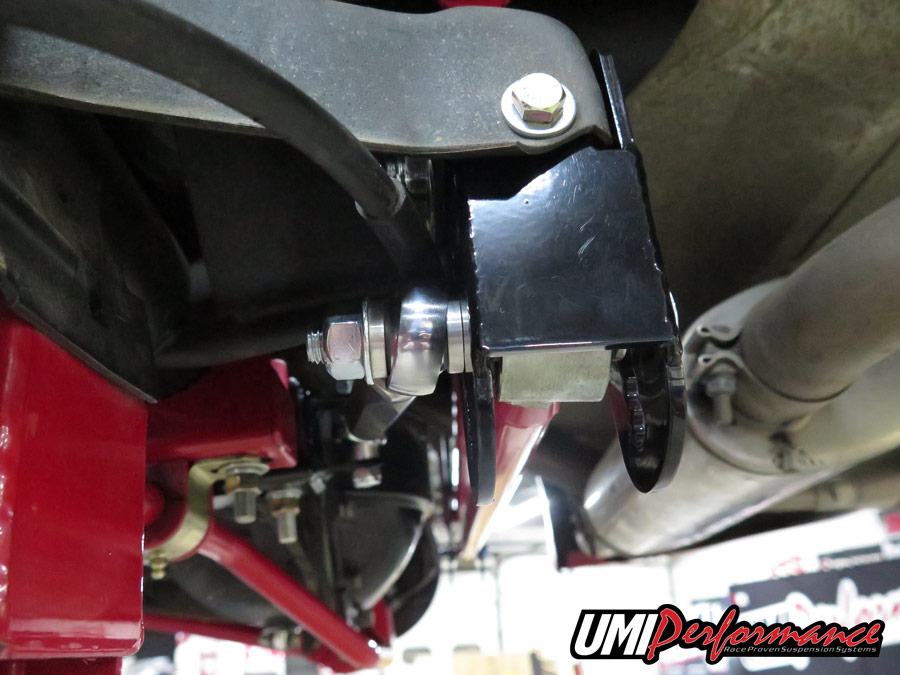

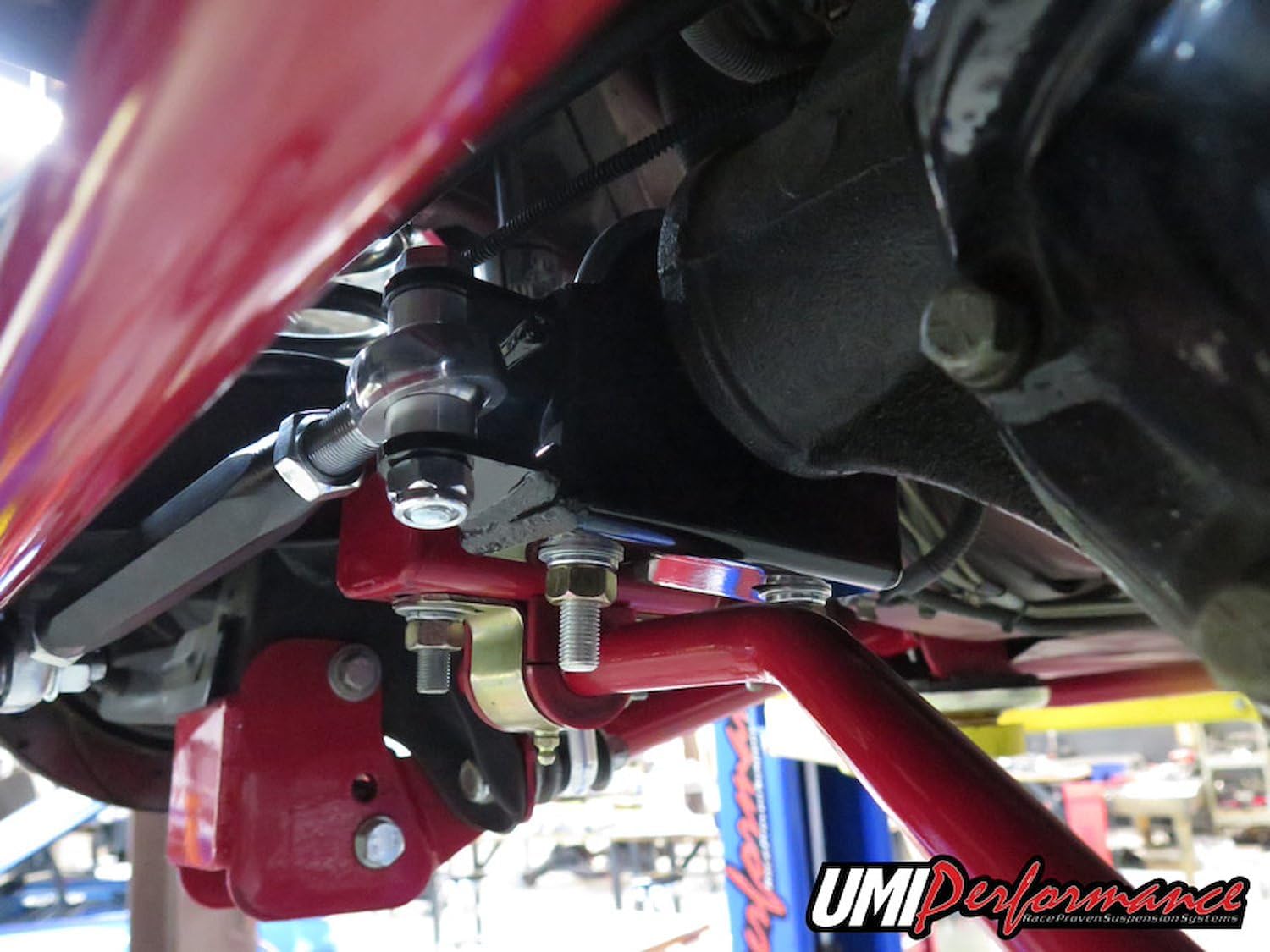

UMI Performance 2062-R Panhard Bar Lowering and Leveling Kit for GM F-Body

The UMI Performance 2062-R Panhard Bar Lowering and Leveling Kit is a competition-proven suspension upgrade designed specifically for 3rd and 4th generation GM F-Body vehicles. This precision-engineered kit lowers the rear roll center height by 1-3/4" to 4" in 7/16" increments, allowing you to fine-tune your vehicle's handling characteristics for optimal performance on the street or track.

Key Features:

• CNC laser-cut bracketry throughout for precise fitment and durability
• Adjustable panhard bar height and leveling for performance tuning
• Upper panhard bar brace constructed from 1.250" USA DOM tubing for maximum strength
• Lowers rear roll center height in 7/16" increments for fine-tuned adjustability
• Increases over-the-axle exhaust pipe clearance
• Includes exclusive weld-in reinforcement plate for competition applications
• Adjustable strut prevents lateral movement of the bracket system
• Available in powder-coated UMI Red or Gloss Black finish
• 100% bolt-in installation for street use; welding required for competition use
• Designed for use with factory axle only

Performance Benefits:

By repositioning the panhard bar from the factory location, which is typically too high for performance applications, you gain precise control over your vehicle's mid-corner handling. Raising the panhard bar enhances mid-corner rotation for tighter cornering, while lowering it prevents mid-corner oversteer for improved stability. This kit delivers much of the performance advantage of a Watts Link setup but with easier installation, simpler adjustment, and a more affordable price point.

Installation Requirements:

This kit requires at least 1.5 inches of clearance between the sway bar and axle tube, which can be achieved using UMI's P/N 2244-275 sway bar bracket kit or equivalent. Must be used with an adjustable panhard bar. Please verify clearance before purchasing. The weld-in reinforcement plate is required for competition use.

Proudly designed, manufactured, and race-tested in the USA, this kit represents UMI Performance's commitment to delivering professional-grade suspension components for serious performance enthusiasts.
