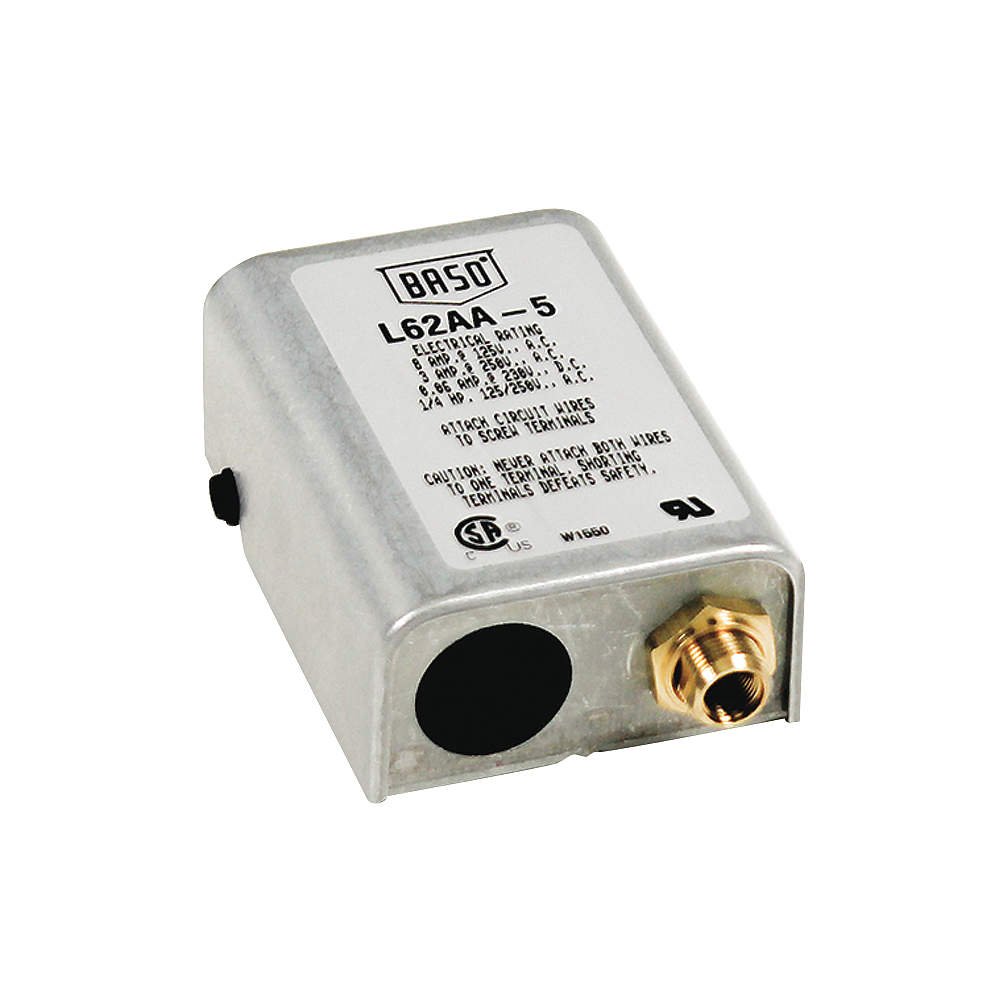

BASO Gas L62AA-5 Natural Gas Pilot Safety Switch with Manual Reset

The BASO Gas L62AA-5 is a non-100% shutoff pilot safety switch designed for reliable flame safeguard operation in gas-fired heating systems. This safety shutoff device monitors the pilot flame through a thermocouple and automatically shuts off gas flow to the main burner when the pilot flame is extinguished, while allowing pilot gas to continue flowing until manually shut off.

Key Features:

• SPST (Single-Pole, Single-Throw) manual reset switch action for enhanced safety
• Natural gas only operation with rated inlet pressure of 0.5 PSI
• Electrical rating: 8A at 24/25 VAC, 3A at 125 VAC, 0.06A at 230 VDC
• Motor rating: 1/4 HP at 125/250 VAC
• Operating temperature range: -40°F to 150°F (-40°C to 66°C)
• CSA certified (Certificate #229521-1656085) and UL listed (File #MH2926)
• Compact design: 4.2" H x 2.6" W x 1.3" L

Applications:

Ideal for standing pilot equipment in residential and commercial heating applications including furnaces, boilers, space heaters, and industrial processing equipment such as die-casting machines and degreasers. This device provides dependable protection by requiring manual reset under fault conditions, ensuring system safety and long-lasting durability.

Cross-Reference:

Replaces BASO models 850-1 through 850-8, Honeywell C434A, ITT/General Controls A100G542, and White-Rodgers 30E02-1.
