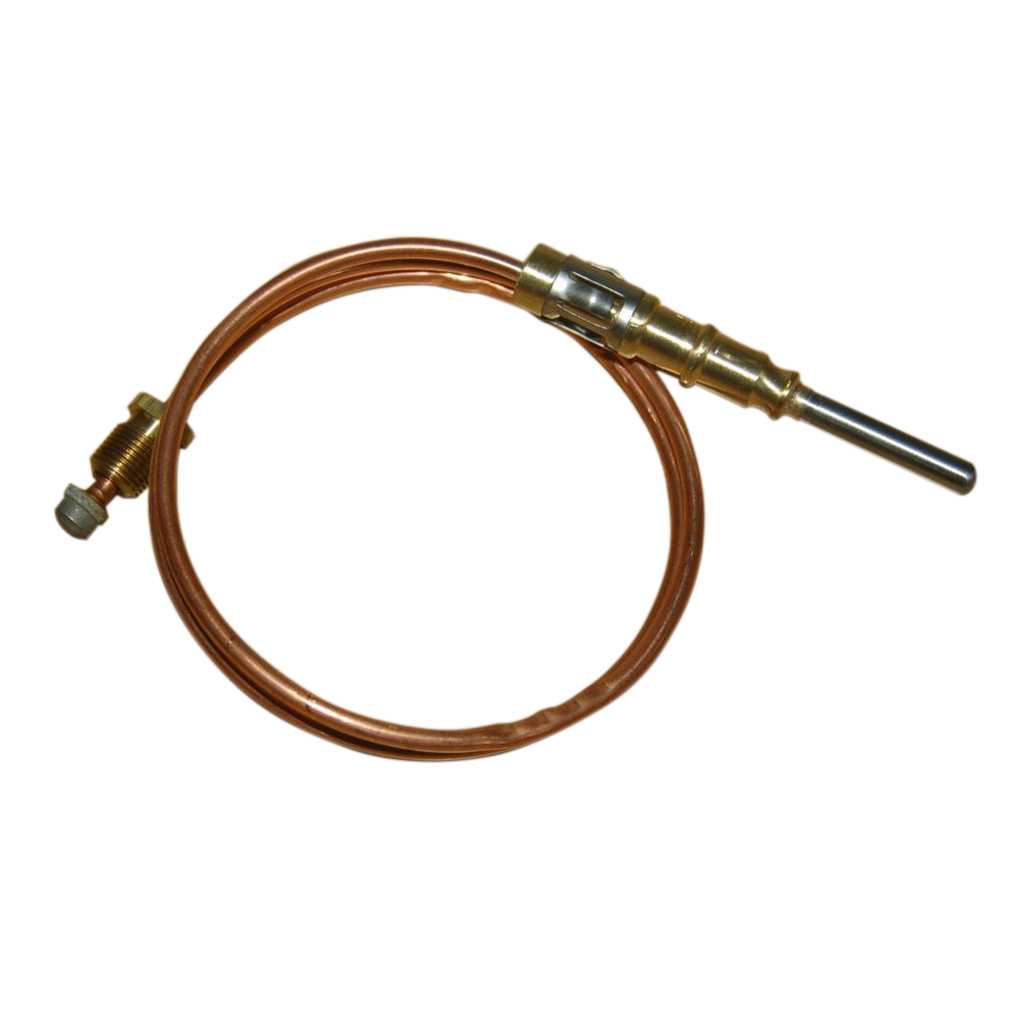

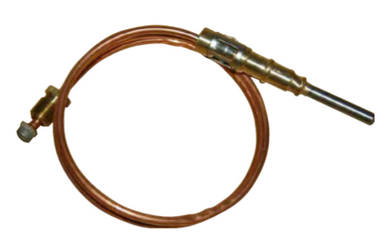

BASO Gas K15FA-24 24-Inch Snap-In Thermocouple for Standing Pilot Systems

The BASO Gas K15FA-24 is a 24-inch snap-in thermocouple designed for reliable flame sensing in standing pilot ignition systems. This thermocouple is engineered for quick and easy installation in pilot burner brackets that accept snap-in style thermocouples, eliminating the need for threading or complex mounting procedures.

Key Features:

• 24-inch length provides flexible routing options for various applications
• Snap-in design enables fast assembly and secure mounting in compatible pilot brackets
• 20-28 mV open circuit voltage output for reliable gas valve operation
• 11/32-32 male nut connector for standard gas valve connection
• Maximum hot junction temperature rating of 1500°F (816°C)
• Minimum open circuit output: 15 mV | Minimum closed circuit: 8 mV
• Compatible with BASO brand automatic pilot controls and pilot burners
• Interchangeable with Johnson Controls thermocouples including K15FS-24H and K15FS-1824H

The K15FA Series thermocouples are widely used in gas-fired appliances including furnaces, boilers, water heaters, pool heaters, and industrial heating equipment. This thermocouple continuously monitors the pilot flame and generates a millivolt signal that keeps the gas valve open during safe operation. Professional installation by licensed service technicians is recommended.
