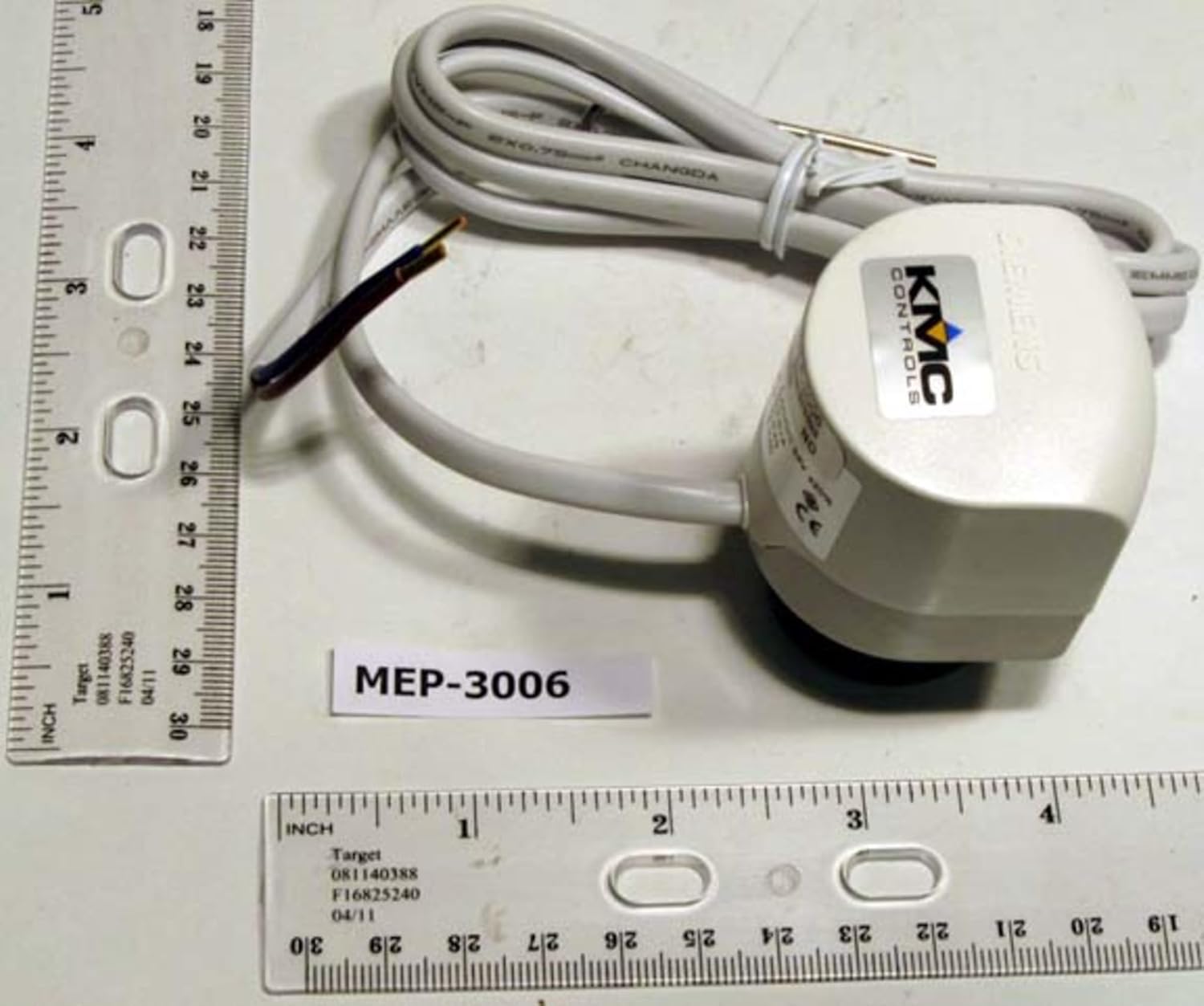

KMC Controls MEP-3006 Zone Valve Actuator 24VAC Normally Open

The KMC Controls MEP-3006 is a zone valve actuator designed for HVAC building automation and control applications. This electric actuator operates on 24VAC/24VDC power and is configured as normally open (N/O), making it ideal for use with KMC's VEP Series control valves including VEP-11, VEP-21, and VEP-37 models.

Key Specifications:

• Supply Voltage: 24VAC -15/+20% or 24VDC, 50/60 Hz, Class 2
• Output Torque: 45 ±10 in-lbs (22.5 in-lb nominal)
• Control Signal: Floating, proportional or two-position control
• Supply Power: 9 VA
• Stroke Time: 18° per minute at 60 Hz, 15° per minute at 50 Hz
• Operating Temperature: 40°F to 120°F (4°C to 49°C)
• Weight: 1.75 lbs

Features:

• Direct mount to 1/2" (13mm) diameter shaft or use with HFO-0011 adaptor for 3/8" (10mm) diameter shaft
• Non-spring return design for fail-safe operation
• Plated screw terminal connections for reliable wiring
• White housing for easy identification in zone control applications
• Compatible with KMC VEP Series 2-way fail-safe electric control valves in 1/2", 3/4", and 1" sizes

This electronic actuator is part of KMC's MEP Series, engineered for precise control of hydronic heating and cooling systems in commercial buildings. The normally open configuration ensures proper fail-safe operation in zone control applications.
