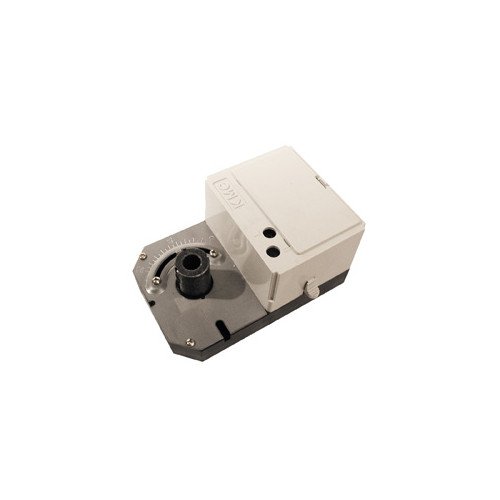

KMC Controls CSP-5002 VAV Flow Controller-Actuator with 50 in-lbs Torque

Manufacturer

Part Number

CSP-5002
Sale Price

$404.60

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The KMC Controls CSP-5002 is a pressure-independent combination controller-actuator designed primarily for use on variable air volume (VAV) terminal units. This analog electronic flow controller features clockwise (CW) to close operation and offers full range flow control when used with CTE-5xxx room thermostats.

Key Features:

  • Onboard flow-through sensor using twin platinum resistance temperature detectors with velocity setpoint control from 0 to 3,300 fpm and 3% accuracy
  • Air flow sensing using single or multi-point differential pressure measuring station or pitot tube (such as SSS-1000 series airflow sensor)
  • 50 in-lbs actuator torque with CW to close operation
  • 24 VAC supply voltage with 16 VDC output to power thermostat
  • Actuator section provides adjustable stops, magnetic clutch, and gear disengagement button
  • Internal status LEDs indicate green for opening and red for closing

Air velocity flow control limits may be set at the thermostat or internally within the CSP-5002. Available control options include proportional or two position electric or hot-water reheat, changeover, dual minimums, fan induction, dual duct, and automation interface.
