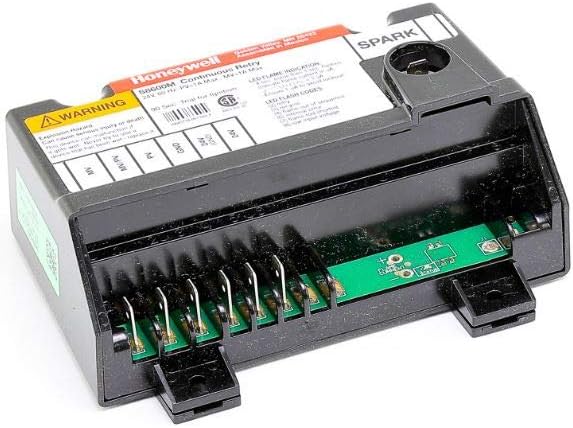

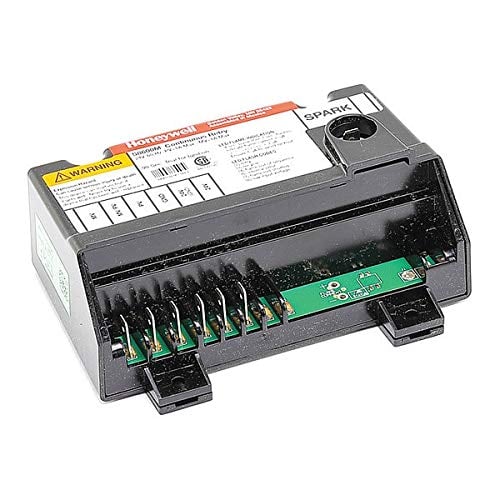

Modine 5H0806890000 Ignition Control Board for Gas Unit Heaters

The Modine 5H0806890000 is an OEM ignition control board designed for Modine gas-fired heating equipment. This official OEM component ensures reliable ignition control for propane and natural gas unit heaters, providing safe and efficient operation in commercial and industrial HVAC applications.

Technical Specifications:

• 24 Volt / 50/60 Hz / 1 Phase operation
• 150 mA control draw
• Intermittent pilot ignition with 1 second pre-purge
• Infinite ignition trials with 90 second trial time
• 5 minute delay between trials
• Replaces UT Electronic Controls Series 1003-600A

Key Features:

• Intermittent pilot ignition eliminates the need for standing pilot flame, reducing energy consumption
• Automatic reset functionality after failed ignition attempts
• Integrated flame sensing for enhanced safety - automatically shuts off gas flow if flame is lost
• Infinite trial capability ensures reliable ignition performance
• Industrial-grade construction for durability in demanding environments

This ignition control module monitors and controls spark generation and gas valve operation, managing the complete ignition sequence for optimal efficiency and reliability. The board provides precise flame management and extends equipment lifespan by preventing damage to components during the ignition process.

Alternative Part Numbers: 5H80689, FP 56153, UT Electronic Controls 1003-600A
