Modine 5H0750290000 Transformer Primary Secondary Transformers - 120V 24V 40VA

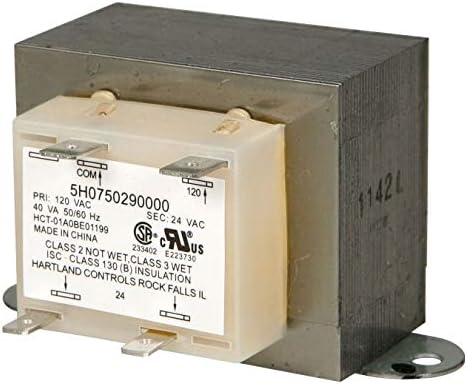

The Modine 5H0750290000 is a 40VA control transformer that steps down primary voltage from 120 VAC to secondary voltage of 24 VAC, operating at 50/60 Hz frequency. This transformer serves as a replacement component for all Modine Hot Dawg heaters and is compatible with a wide range of Modine unit heater models.

Key Specifications:

• Primary voltage: 120 VAC
• Secondary voltage: 24 VAC
• Power rating: 40 VA
• Frequency: 50/60 Hz
• Class 2 rating (not wet), Class 3 (wet)
• ISC-Class 130 (B) insulation

Compatible Models:

This transformer is used with Modine HD series models including HD 30, HD 45, HD 60, HD 75, HD 100, HD 125, HDB and HDS variants, as well as PTS, BTS, MT, TLP, PTC, and RT series unit heaters. Also compatible with OEM Hartland Controls part number HCT-01AOBE01199.

Built with sturdy construction to withstand demanding industrial environments, this transformer ensures longevity and reliability in commercial, industrial, and residential heating applications. This part supersedes the earlier 5H75029 part number.
