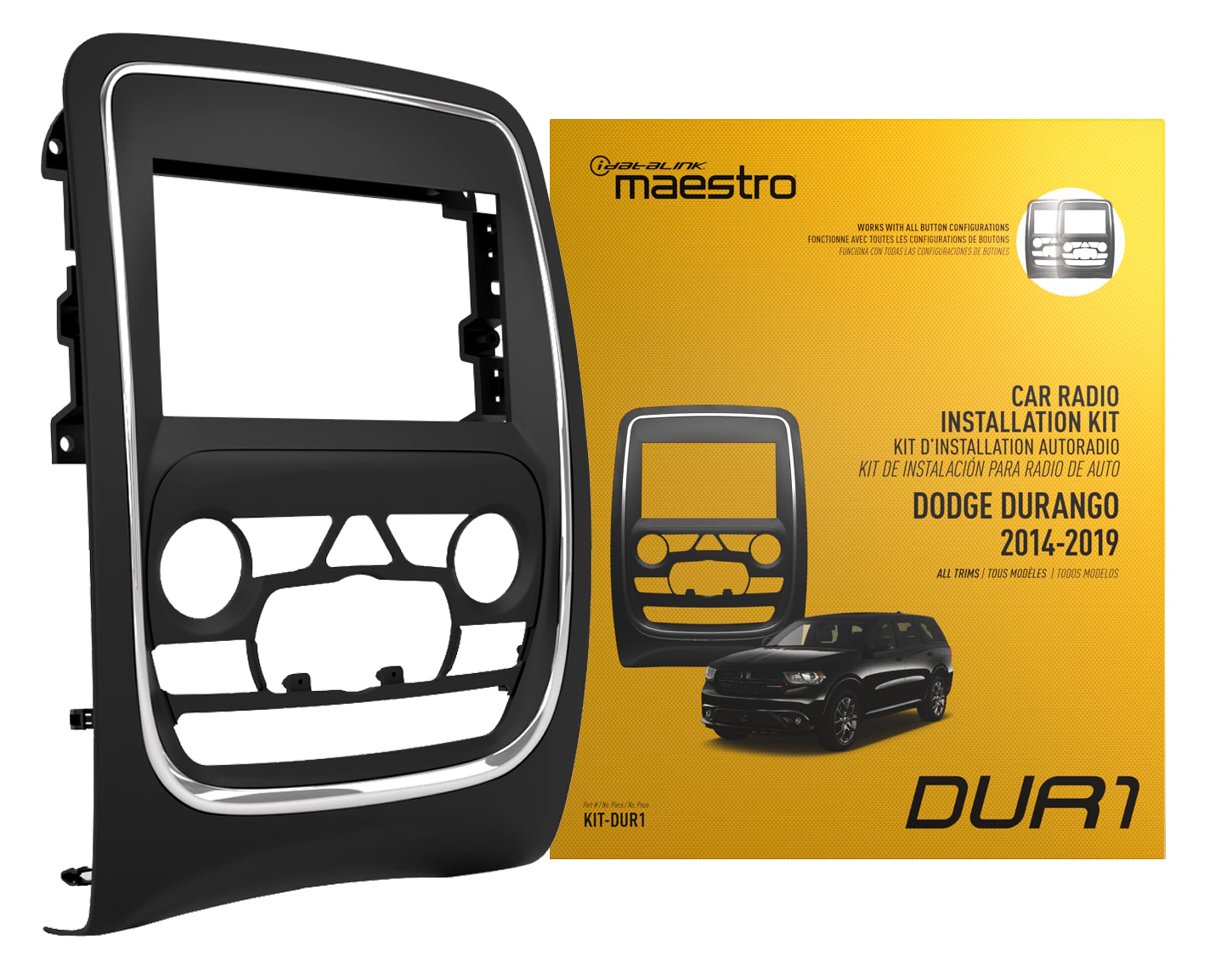

The iDatalink Maestro KIT-DUR1 is a complete dash kit and vehicle-specific wiring harness solution designed for select 2014–2020 Dodge Durango models, covering all factory radio trim levels. When paired with the iDatalink Maestro RR or RR2 interface module (sold separately), this kit enables a clean, factory-quality installation of a compatible double-DIN aftermarket head unit from Alpine, JVC, Kenwood, Sony, or Pioneer — without sacrificing your vehicle's built-in features.

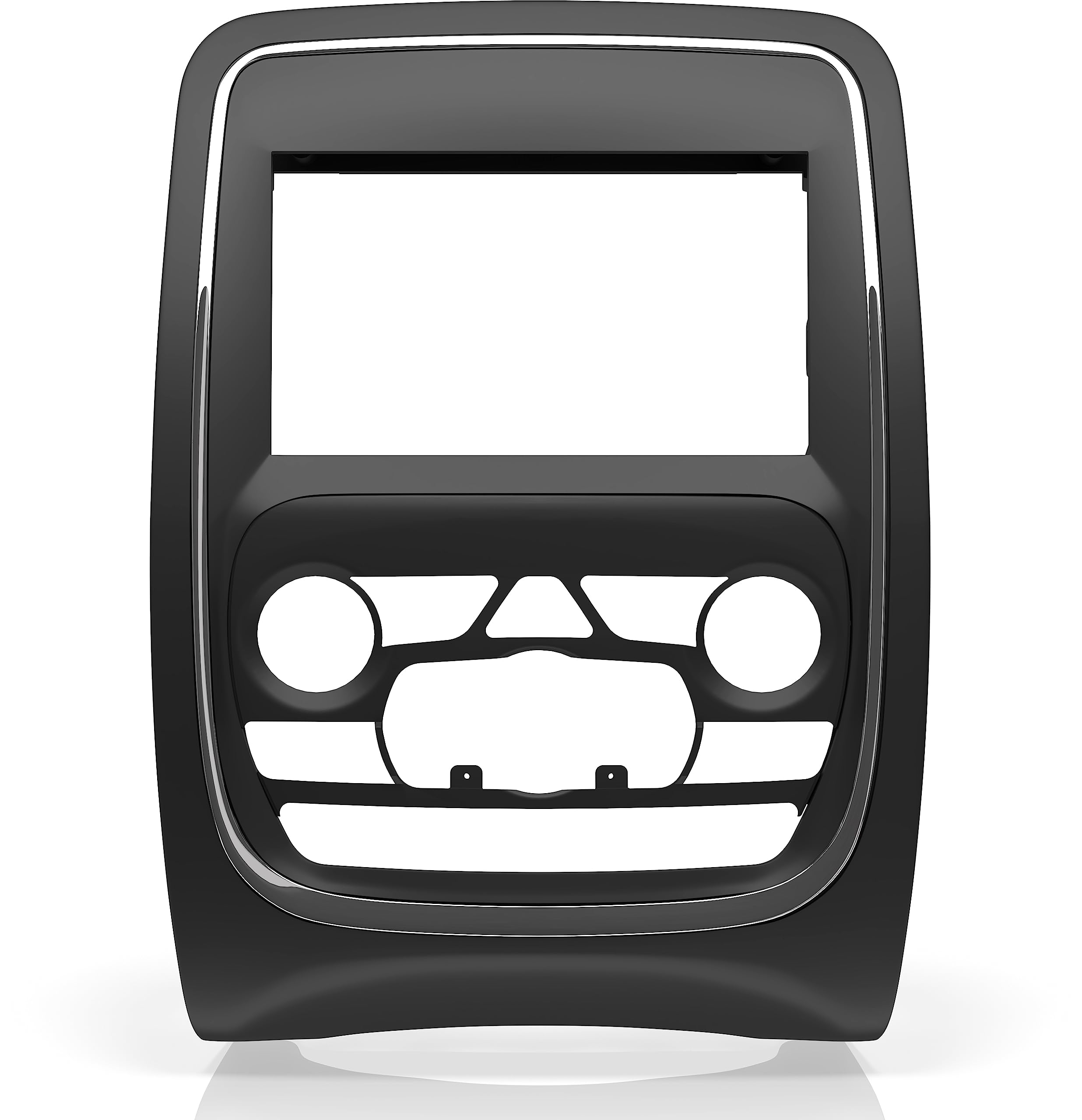

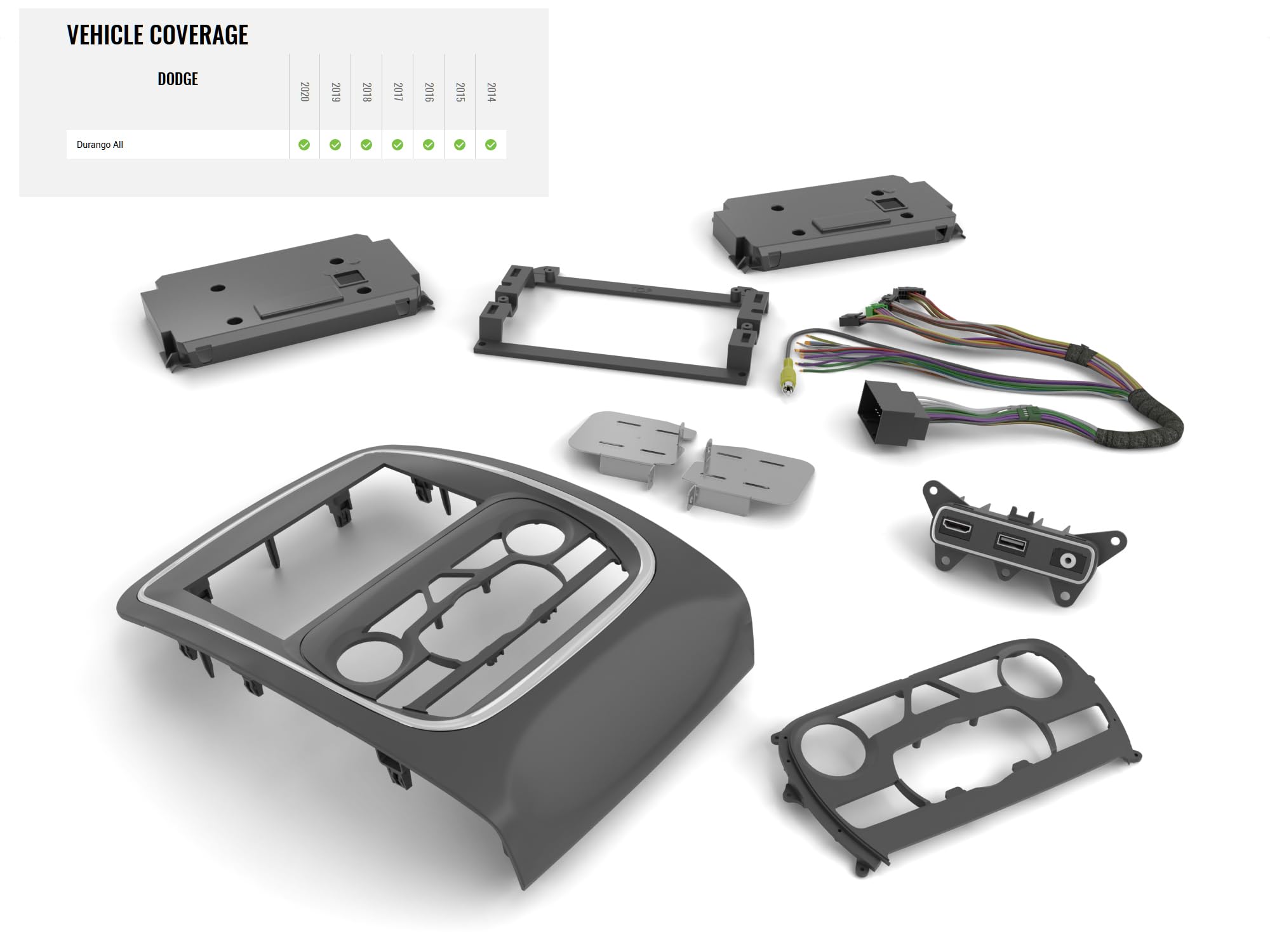

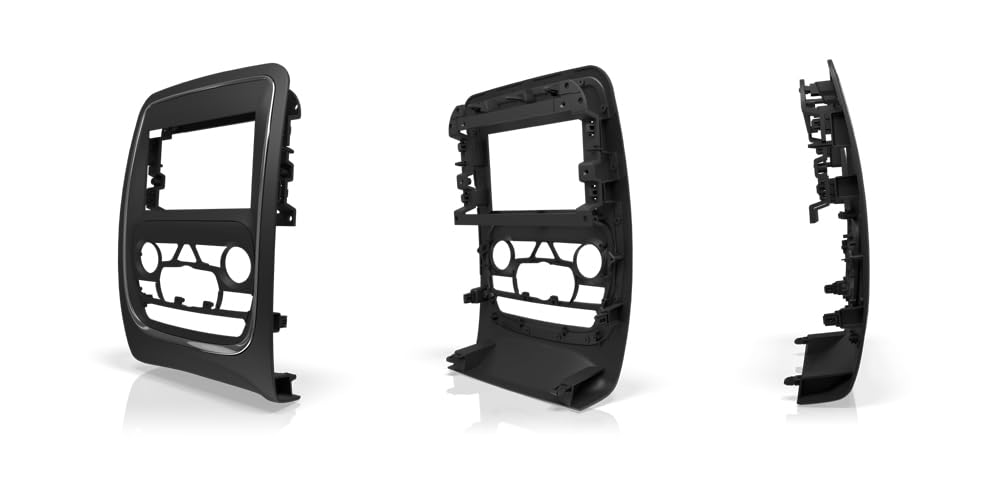

The KIT-DUR1's dash kit is crafted from high-grade ABS plastic with a factory-grade fit and finish, seamlessly matching the contour and color of the Durango's interior. The included T-harness is head-unit adapter ready, and a climate control adapter panel covers both types of factory climate control configurations. A built-in media module replaces the factory USB hub with two USB Type-A ports and a 3.5mm aux input (one USB port is convertible to HDMI), giving you easy dash-level access to your new receiver's inputs.
Key Features:
- Double-DIN dash kit designed for select 2014–2020 Dodge Durango — all factory radio trims supported
- Includes vehicle-specific T-harness (head unit adapter ready) and climate control adapter panel
- Media module with two USB Type-A ports and 3.5mm aux input (one USB port convertible to HDMI)
- Retains factory amplifier with speed-compensated volume, digital fader and balance, DSP and gain adjustment
- Retains steering wheel audio controls with two programmable functions per button
- Retains factory backup and front cameras (requires compatible receiver with camera inputs)
- Retains rear seat entertainment (RSE) system via 3.5mm AV connector on harness
- Retains secondary vehicle display for audio, hands-free, and navigation information
- Retains parking assist chimes and park guidelines
- Supplies navigation outputs: parking brake, foot brake, reverse gear, and VSS (Vehicle Speed Sense)
- Climate controls accessible via the aftermarket receiver's touchscreen
- Factory-grade ABS plastic construction with factory-matching fit and finish
What's Required (Sold Separately): iDatalink Maestro ADS-MRR or ADS-MRR2 interface module, a compatible iDatalink Serial Port head unit (Alpine, JVC, Kenwood, Sony, or Pioneer), and the appropriate T-harness for your head unit (ACC-HU-ALP1, ACC-HU-PIO1, ACC-HU-SON1, ACC-HU-KEN1, or ACC-HU-KEN2). Vehicle-specific firmware must be downloaded via iDatalink's Weblink Desktop application (Windows and Mac compatible).
