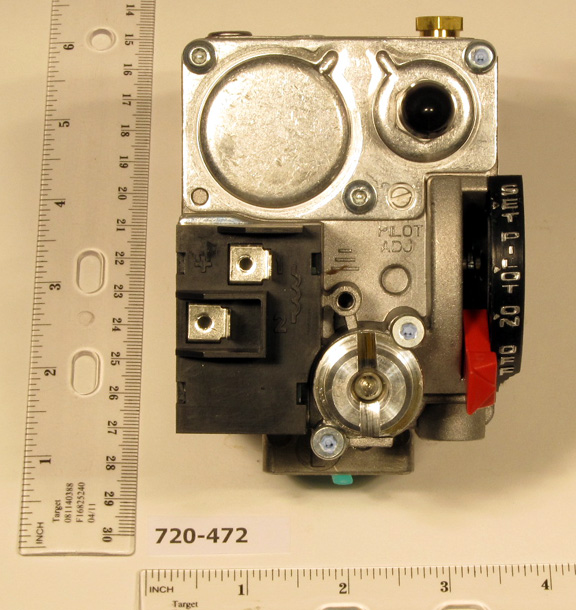

Robertshaw 720-472 24V Dual Gas Valve 1/2" x 1/2" Standing Pilot 150,000 BTU

The Robertshaw 720-472 is a versatile 24-volt dual gas valve designed for a wide variety of residential and commercial heating applications. This six-function gas control incorporates a manual valve, safety shut-off magnet, dual automatic valves, main gas regulator, and pilot adjustment in a compact, reliable package.

Key Features:

• Dual Valve Design: Six-function valve with manual valve, safety shut-off magnet, dual automatic valves, main gas regulator, and pilot adjustment
• Convertible Regulator: Factory-set at 3.5" W.C. for natural gas, includes conversion kit for LP gas (11.0" W.C.)
• Step-Opening Function: Opens to 40% of full flow within 30 seconds, ideal for mobile home applications
• 150,000 BTU Capacity: Handles high-capacity heating applications with 1/2" NPT inlet and outlet connections
• Standing Pilot Ignition: Reliable constant pilot operation with 1/4" tubing pilot connection
• Easy Installation: 3-9/16" swing radius fits most OEM valve footprints; top-mounted wiring and adjustments for easy access
• Multi-Position Mounting: Can be mounted in any position except upside down
• Four Gas Flow Positions: Manual selector controls off, on, pilot, and "set" positions with built-in safety stops

Specifications:

• Model: 7200ERCS-2
• Electrical: 24V AC at 0.5 Amps, 50/60 Hz
• Connection Size: 1/2" NPT inlet and outlet
• Side Outlets: 1/2" FPT with plugs
• Maximum Inlet Pressure: 14" W.C. (1/2 PSI)
• Operating Temperature: -40°F to 175°F
• Includes: 1/2" x 3/8" reducer bushing and LP conversion kit

The Robertshaw 720 Series is engineered to replace most constant pilot valves and OEM dual valve controls. Special security screws prevent unsafe repair attempts, ensuring long-term safety and reliability in furnaces, boilers, and other gas-fired heating equipment.
