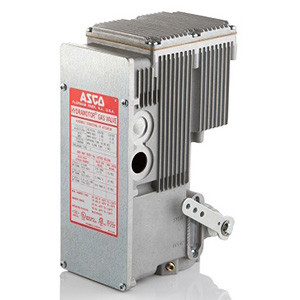

Asco AH2E112A 120V Electrohydraulic Actuator 6/14 Second Fast Opening Without Arm

The ASCO Series AH2E On-Off Hydramotor is a push-type, self-contained, electrohydraulic linear actuator that extends when powered and retracts by spring force upon power interruption. This model features 6-14 seconds opening time and operates on 120V AC, making it ideal for industrial and commercial gas valve control applications.

Key Features:

• Fast spring return shutoff time of one second or less
• 110/120 VAC 50/60 Hz operation with 220 VA power consumption
• 0 to 15 PSI differential pressure rating
• Compact dimensions: 6.76 inches wide x 4 inches deep x 10.31 inches high
• Aluminum construction with watertight enclosure
• Supplied without damper arm (W/O ARM)
• Operating temperature range: -40°F to 150°F (-40°C to 66°C)

The AH2E Hydramotor mounts in any position directly to a V710 valve with 3 set screws. When mounted to a V710 gas valve, position indicators on both sides of the actuator show the open or closed position of the valve. The AH2E Hydramotor/V710 gas valve combination provides main line gas control for a wide range of applications, including boilers, furnaces, ovens and all types of industrial and commercial burners.

Approvals: UL listed to standard 429 "Electrically Operated Valves," FM Approved, and CSA Certified to ANSI Z21.21 CSA 6.5.
