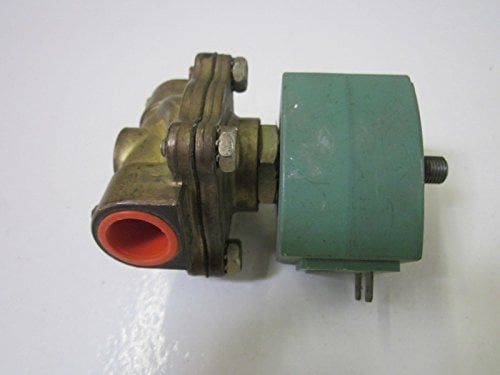

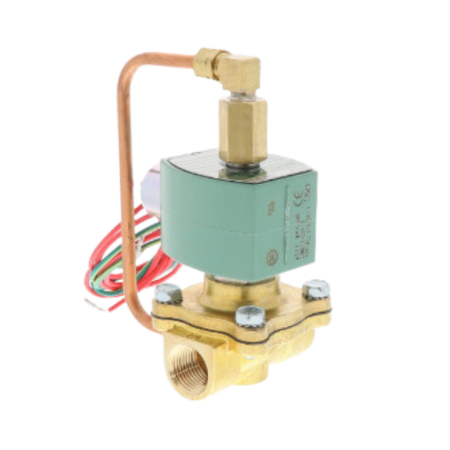

Asco 8210G12 2-Way Solenoid Valve 1/2" NPT Normally Open Brass Body

The Asco 8210G12 is a pilot-operated, 2-way general service solenoid valve designed for reliable control of air, inert gas, water, and light oil applications. This normally open valve features 1/2" NPT pipe connections and closes when the solenoid coil is energized, allowing fail-safe operation in the event of power loss.

Key Features:

• Brass body construction with NBR (Nitrile) seals for durability and chemical resistance
• NEMA 4X watertight enclosure protects against moisture and environmental contaminants
• Pilot-operated design with 5/8" orifice size and 4 Cv flow factor for high flow capacity
• Operating pressure: 5-250 PSI for air and inert gas; 5-200 PSI for water and light oil
• 120 VAC power rating (multiple voltage options available)
• UL and CSA Listed for safety compliance
• No minimum operating pressure required
• Can be mounted in any orientation for installation flexibility

Part of ASCO's legendary RedHat series, the 8210G12 valve delivers exceptional performance for industrial applications including water control systems, car washes, air compressors, pumps, and laundry equipment. The resilient seal design ensures minimal internal leakage and extended service life, while the stainless steel internal components (305 core tube, 430F core and plugnut, 302 springs) provide corrosion resistance and reliability.
