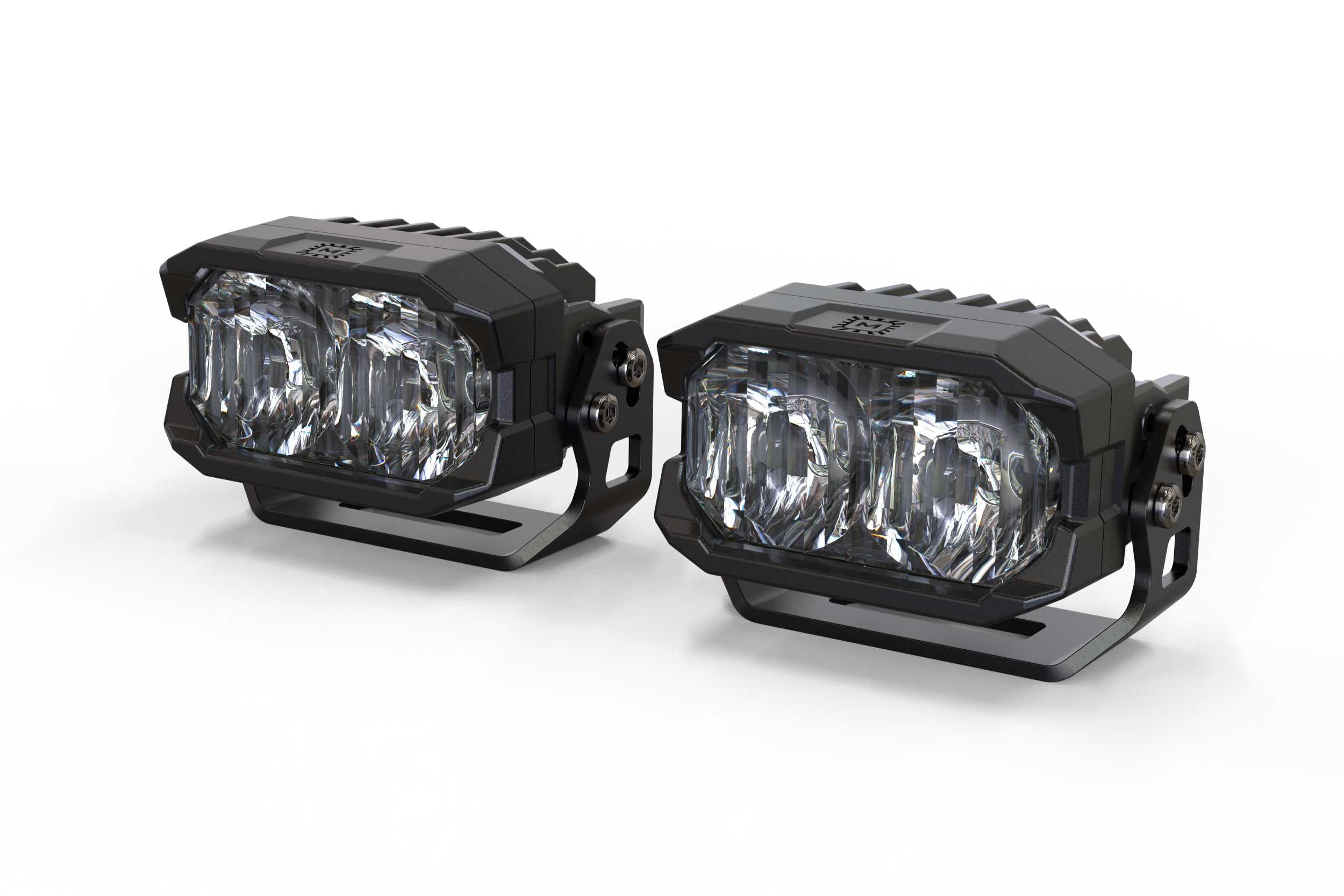

The Morimoto 2Banger HXB LED Pod Lights represent a complete reinvention of off-road auxiliary lighting. This pair of compact LED pods delivers 2,000 lumens of raw output at 24W per pod, utilizing the most powerful Osram LEDs available in a remarkably compact footprint measuring 81.0mm wide, 49.8mm high (63.5mm with bracket), and 59.2mm deep.
HXB Combo Beam Pattern:
The HXB Combo beam illuminates a clear path with medium range, providing a blend of width and distance illumination that makes driving in remote areas far more comfortable. The hot spot and spread has been perfectly tuned to produce an ideal combo beam, making these pods an excellent aid to any set of high-performance headlights. The white-output version is ideal for all-around visibility in all weather conditions.
Premium Engineering:
- LucidShape optimized performance around lumen-dense LEDs from Osram, with thermal dynamics optimized using SolidWorks
- Features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator
- Cast aluminum shell is electroplated before powder coating to withstand flaking
- Gasket system, integrated DT power connection, and breather valves all designed according to IP69K standards for full weather resistance
- Makrolon LED polycarbonate lens with powdercoated die-cast aluminum housing
Street Legal Performance:
When aimed properly, the Combo beam patterns will comply with SAE J581 standards for an auxiliary high beam, making these pods legal for on-road use as auxiliary lighting.
Universal Mounting:
Each set includes universal pedestal mounts for easy installation on any flat surface, including steel bumpers. The 2Banger can be mounted alone, or linked together into a serious light bar using optional BangerBar mounting hardware. Application-specific A-Pillar brackets are available separately for bolt-on installation on popular trucks and SUVs.
Technical Specifications:
- Power: 24.0W per pod (stabilized)
- Current: 1.78A at 13.5V DC
- Intensity: 65,000 Cd (650 lux at 10m)
- Light Source: 2x Osram HX Boost LEDs per pod
- Connection: Integrated Deutsch DT 2-Pin with pigtail
What's Included:
- Two (2) Morimoto 2Banger HXB LED pods with combo beam pattern (white output)
- Two (2) universal U-shaped pedestal mounts
- Necessary mounting hardware
