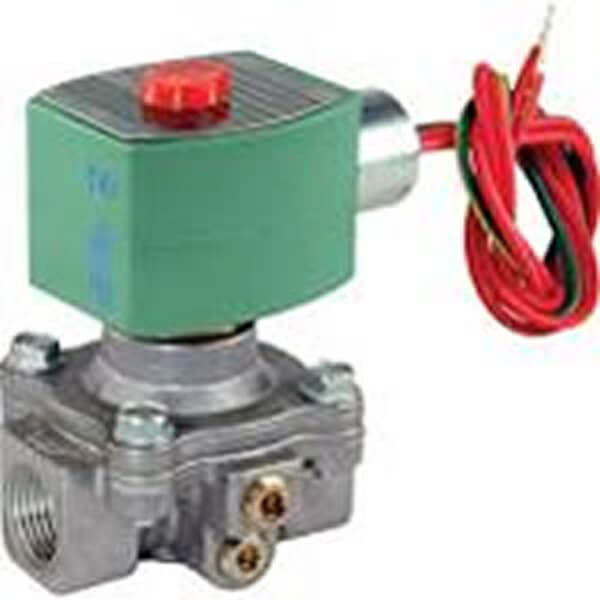

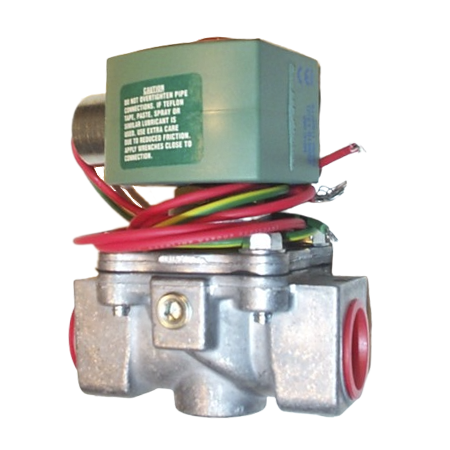

Asco 8214G30 3/4 Inch 120V Gas Shutoff Solenoid Valve

The Asco 8214G30 is a 2-way normally closed gas shutoff solenoid valve designed for commercial and industrial gas burner applications. This valve features a 3/4 inch NPT pipe connection with a 3/4 inch orifice, providing reliable fuel gas control and safety shutoff capabilities.

Key Features:

• Die-cast aluminum body construction with Buna-N (NBR) seals for durability and leak-tight performance
• 120V AC electrical rating (120/60Hz, 110/50Hz) with 17.1 watt power consumption
• NEMA 4X watertight enclosure for protection against harsh environments
• Zero differential piloted diaphragm design for reliable operation
• Unique double-disc design with overtravel provides redundant sealing for leak-tight shutoff
• 5.1 Cv flow capacity with 247,500 BTU/hr gas capacity
• Maximum pressure rating of 5 PSIG at 125°F maximum temperature
• Can be mounted in any position for installation flexibility

This valve is UL-listed, FM-approved, and CSA-certified for use as a general purpose or safety shutoff valve in fuel gas systems. The Series 8214 valve meets ANSI Z21.21 and CGA 6.5 standards for automatic gas valves. Optional rebuild kit 316233 and replacement coil 238610-132-D are available for maintenance.
