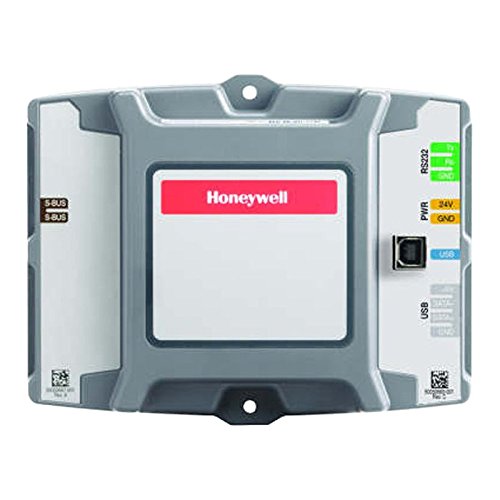

Honeywell W7220-PCMOD PC Tool Software Interface Module for JADE Economizer Systems

The Honeywell W7220-PCMOD is a PC interface module designed for communication between JADE economizer controllers and personal computers. This integrated tool and software solution enables HVAC technicians to configure, monitor, and troubleshoot JADE W7220 economizer systems directly from a laptop or PC in the field or office.

Key Features:

• USB connection to personal computer for easy setup and configuration
• Sylk Bus communication protocol for connecting to JADE W7220 economizer controllers
• Pre-configuration capability allows technicians to program multiple JADE controllers in the office before installation
• Real-time monitoring and data logging for validation and verification of economizer operation
• Field service functions including checkout procedures and controller settings adjustment
• Wide operating temperature range from -40°F to 150°F (-40°C to 65°C)
• 12-30 VAC power supply with 50/60 Hz compatibility
• Durable gray housing measuring 4.98" H x 6.3" W x 1.34" D

The W7220-PCMOD helps contractors save installation time on rooftops by enabling office-based pre-configuration of economizer settings. It provides a low-cost, user-friendly solution for energy savings validation and operational verification of commercial HVAC rooftop unit economizers. Compatible with Windows operating systems and includes USB cable for PC connection. UL94-5V rated, FCC and CE compliant.
