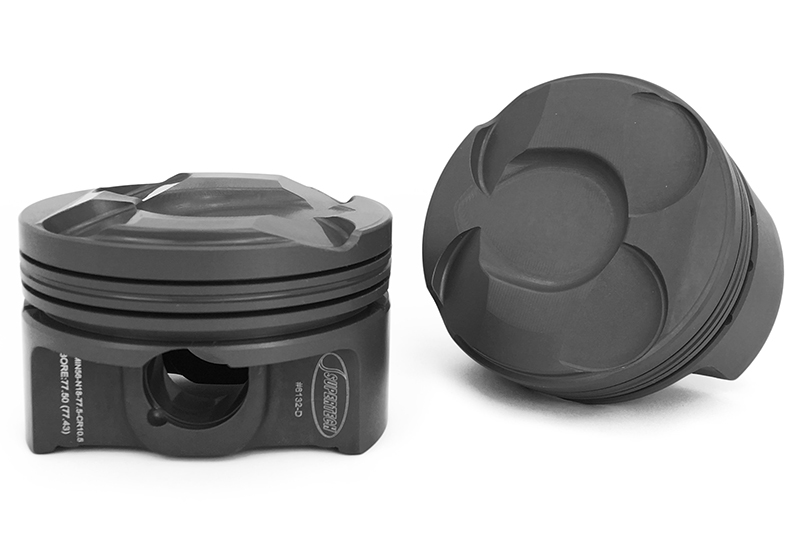

Supertech Performance P4-TFRS-86-CR9.5 Forged Piston Set FA20 86mm 9.5:1 CR

Manufacturer

Part Number

P4-TFRS-86-CR9.5
Black Friday Price

$845.97

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Supertech Performance P4-TFRS-86-CR9.5 is a complete forged piston set engineered for FA20 engines found in Subaru BRZ, Scion FR-S, and Toyota 86 applications. This 4-piston kit features a standard 86mm bore diameter with a 9.5:1 compression ratio, making it ideal for naturally aspirated performance builds and moderate forced induction applications.

Key Specifications:

  • Bore diameter: 86mm (standard bore)
  • Compression ratio: 9.5:1
  • Compression height: 32.5mm (1.279")
  • Piston pin diameter: 22mm
  • Dish volume: -15.5cc
  • Compatible with 5.093" rod length
  • Ring part number: R86-GNH8600

Construction and Materials:

Each piston is forged from enhanced 4032 aluminum alloy with additional copper, nickel, and magnesium for superior performance characteristics. This high-silicon alloy provides low thermal expansion, excellent wear resistance, and higher thermal conductivity compared to cast pistons. The material has proven capable of withstanding up to 42 psi of boost on alcohol fuel without failure.

Manufacturing Process:

Supertech utilizes a multi-stage forging process that creates optimal grain structure orientation for maximum strength. Each piston undergoes several heat treatments to ensure high tensile strength and evenly distributed hardness throughout. Precision CNC machining with diamond tooling guarantees dimensional accuracy, perpendicularity, and flatness of ring grooves. Contact reduction grooves are machined into each piston, and pin bores are honed and reamed for precise fitment.

Complete Kit Includes:

  • Four forged pistons with phosphate dry lubricant coating
  • Chrome-moly steel wrist pins
  • Premium Japanese-manufactured piston rings
  • Wire clip locks

The phosphate coating protects rings against micro-welding during initial break-in and enhances lubrication between the piston skirt and cylinder wall. Backed by over 40 years of engineering excellence, these pistons are designed using advanced CAD software and finite element analysis (FEA) to deliver proven reliability in street performance and racing applications.
