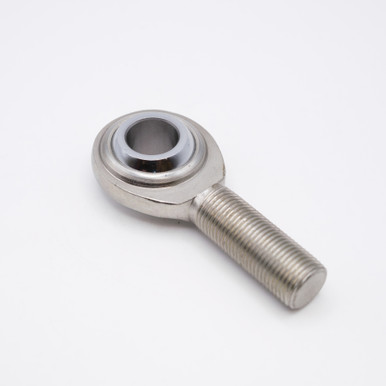

Aurora MM-7 Male Rod End Bearing 7/16" Bore Right Hand Thread

The Aurora MM-7 is a precision-engineered male rod end bearing designed for applications requiring smooth articulation and reliable transfer of motion and force between two points. Also known as heim joints or spherical rod ends, these articulating joints attach to the ends of tie rods, steering links, and cylinders to provide dependable mechanical linkage in demanding environments.

Key Specifications:

• Bore Size: 7/16" (0.4375" / 11.113mm)
• Thread: 7/16-20 UNF right hand
• Ball Width: 0.562" (14.27mm)
• Housing Width: 0.437" (11.10mm)
• Overall Length: 2.125" (53.98mm)
• Shank Diameter: 1.125" (28.58mm)
• Static Load Rating: 4,218 lbs

Construction Features:

• All-steel construction with steel outer member, steel ball, and steel liner
• Two-piece design for durability and precision
• Open enclosure, non-relubricatable design
• Low carbon steel body with protective coating for corrosion resistance
• Approximate weight: 0.16 lbs (73 grams)

This rod end bearing is used in a range of applications from agricultural machinery to steering linkages, textile manufacturing equipment, transmission linkages, conveyor system components, and industrial machines. Aurora Bearing's precision manufacturing ensures consistent quality and performance in automotive, industrial, and aerospace applications where reliable articulation is critical.
