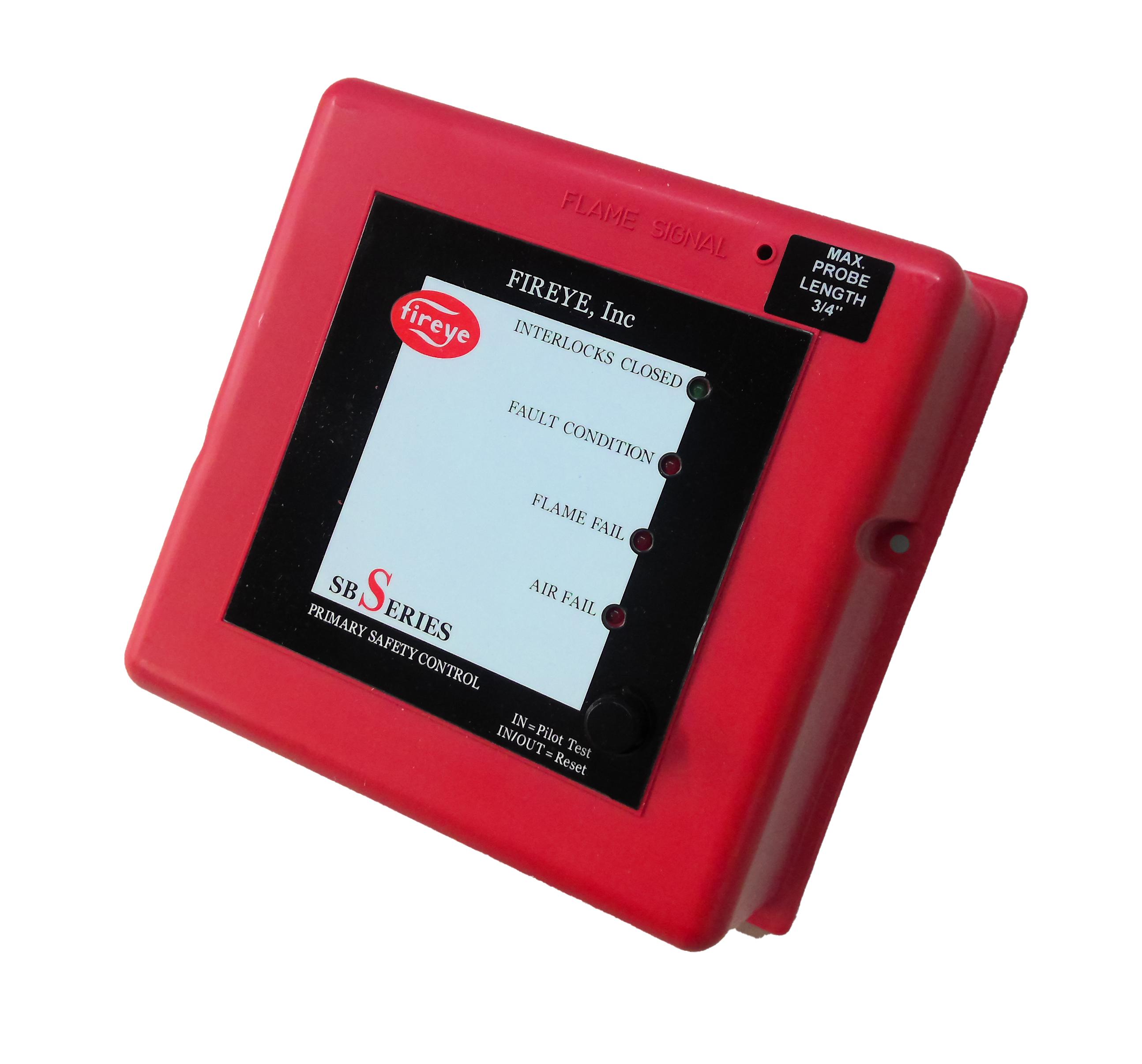

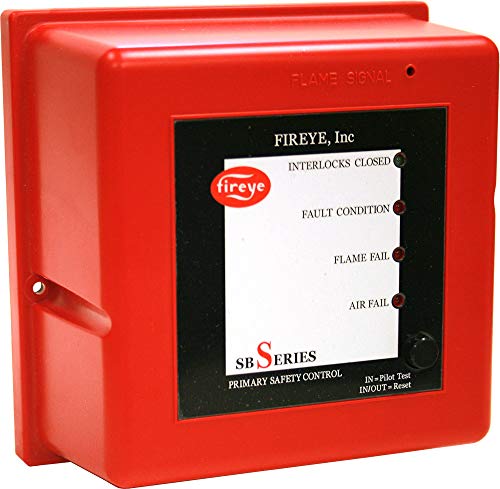

Fireye SB560232AA Burner Control Module 120VAC No Purge UV Flame Safeguard

The Fireye SB560232AA is a compact, microprocessor-based burner management system designed to provide automatic ignition and continuous flame monitoring for commercial heating and process equipment firing any type of fuel. This 120 VAC control features a no purge model with UV amplifier type and selectable 5 or 10 second trial for ignition timing. It serves as a direct replacement for the retired Eclipse Veriflame VF560232AA.

Key Features:

• 120 VAC operation with no purge sequence control
• UV (ultraviolet) flame sensor amplifier type
• Selectable trial for ignition timing: 5 seconds (switch off) or 10 seconds (switch on)
• Includes all necessary digital logic and analog measuring circuitry to control the sequence and monitor flame for single gas, oil, or combination burners
• LED indicators on front panel provide current operating status including lockout alarm, plus recessed test jack for real-time flame sensor readings
• Push button reset from lockout condition and check mode for pilot turn down tests
• Tested to EN298 and CE-certified for gas fired appliances and electromagnetic compatibility

The SB series is a direct drop-in replacement for the retired Honeywell Eclipse VeriFlame system and is UL cross-referenced for direct replacement. The part number specifies flame sensor type, control sequence, and timings, providing protection against field tampering of critical sequences. Ideal for commercial boilers, furnaces, and process burners requiring reliable flame safeguard protection.
