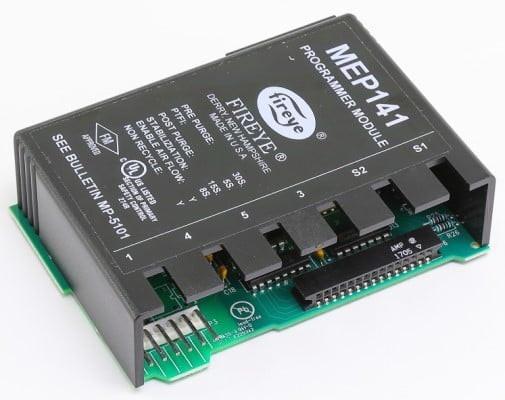

Fireye MEP141 MicroM Programmer Module with 30 Second Purge

The Fireye MEP141 is a plug-in programmer module designed for use with the Fireye MicroM Series flame safeguard control system. This microprocessor-based module controls the sequence of operation for automatic ignition and continuous flame monitoring in commercial and industrial burner applications.

Key Timing Specifications:

• 30-second purge cycle
• 5-second fixed pilot trial for ignition (PTFI)
• 8-second pilot stabilization period
• 15-second post purge
• Non-recycle operation on flame failure
• Proof of air flow at start capability

Features:

• Plug-in design for easy installation and replacement
• Compatible with MEC120 and MEC230 type chassis
• Intermittent pilot operation
• Operates with 120V AC power supply
• LED indicators display current operating status
• Safety checking circuit operative on each start

This programmer module is ideal for burner management systems, commercial and industrial boilers, furnaces, ovens, kilns, and other combustion equipment requiring precise flame monitoring and safe combustion control. The MEP141 is part of the MEP100 series of programmer modules and works in conjunction with appropriate flame detectors and amplifier modules to create a complete flame safeguard system.
