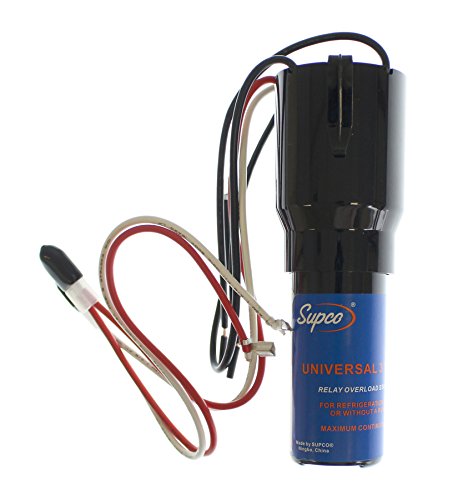

Supco URCO410 3-in-1 Hard Start Relay Overload & Capacitor 1/4-1/3 HP 115V

The Supco URCO410 is a universal 3-in-1 solid-state hard start kit that combines a relay, overload protector, and start capacitor into a single, compact module. Designed as a direct replacement for aging or failed refrigeration compressor starting components, this all-in-one unit simplifies servicing and restores reliable compressor operation.

When the compressor needs to start, the capacitor delivers a high-torque boost of electrical energy to the start winding, overcoming inertia and locked rotor conditions. Once the motor reaches operating speed, the solid-state relay disconnects the start winding, allowing the motor to run on its main winding. The integrated overload protector continuously monitors current draw and disconnects power if a fault or excessive load is detected, protecting the compressor from damage.

Key Specifications:

• Voltage: 110–125 VAC (115V nominal)
• HP Range: 1/4 HP to 1/3 HP compressors
• Maximum Continuous RLA: 6.8 Amps
• Capacitance: 243–292 MFD
• Compressor Types: Compatible with RSIR, CSIR, PSC, and CSR compressors

Key Features:

• Solid-state design — no moving parts for long-lasting reliability
• Works on refrigeration systems with or without an existing run capacitor
• Prevents low-voltage starting problems
• Helps older compressors start and run cooler
• Completely pre-wired with easy-mount clip for quick, tool-free installation
• Wiring diagram and installation instructions printed on package
• UL Recognized

Cross-Reference Part Numbers: 600-410, ERP410, ERPU410, HS41, PCS410, PU410, QURCO410, TQS41, URC0410, URCO41, WRX-4

The URCO410 is a sealed, maintenance-free component suitable for domestic refrigerators, freezers, and light commercial refrigeration equipment up to 1/3 HP.
