Johnson Controls VG7251LT+7152G Two-Way Globe Valve Assembly with Electric Actuator HVAC Control Valves & Actuators - 3/4

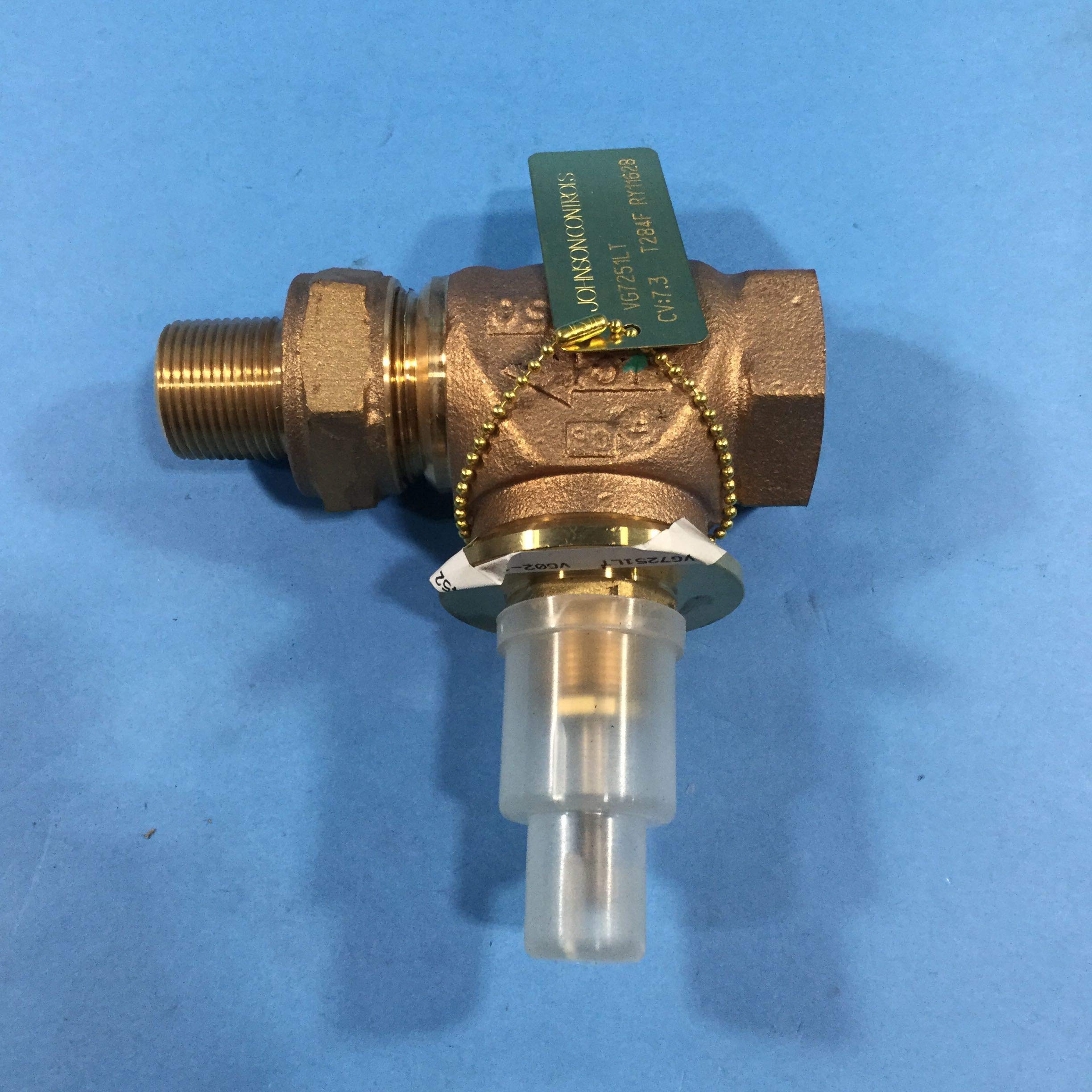

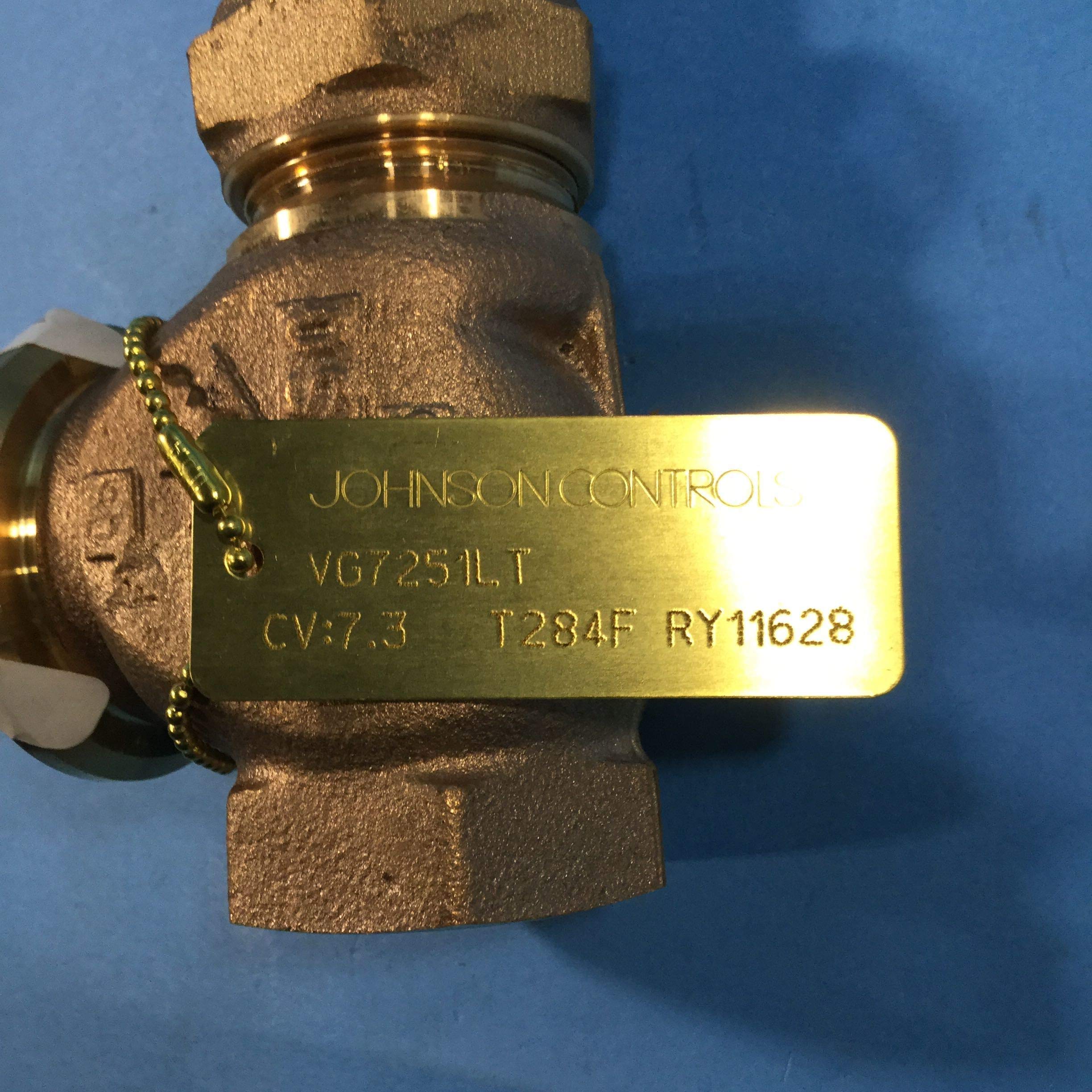

The Johnson Controls VG7251LT+7152G is a complete valve assembly combining a 3/4-inch two-way bronze globe valve with a VA-7152 series non-spring return electric actuator. This assembly is designed for precise control of hot water, chilled water, glycol solutions, and steam in commercial HVAC systems.

Valve Specifications:

• Valve size: 3/4 inch with union globe end connections
• Flow coefficient (Cv): 7.3
• Configuration: Two-way, normally open, push-down-to-close
• Body material: Cast bronze construction for durability
• Trim: Brass stem with stainless steel components and elastomeric disk seat
• Close-off pressure: 90 PSIG

Actuator Features:

• VA-7152G non-spring return electric actuator with 90 inch-pounds torque
• Control type: Proportional control with 0-10 VDC input signal
• Direct coupled design eliminates linkage requirements
• Magnetic clutch protects internal gearing from damage
• Precision positioning for accurate flow control

This pre-assembled valve and actuator combination simplifies installation and ensures compatibility between components. The proportional control capability enables variable flow modulation for energy-efficient temperature control in building automation systems.
